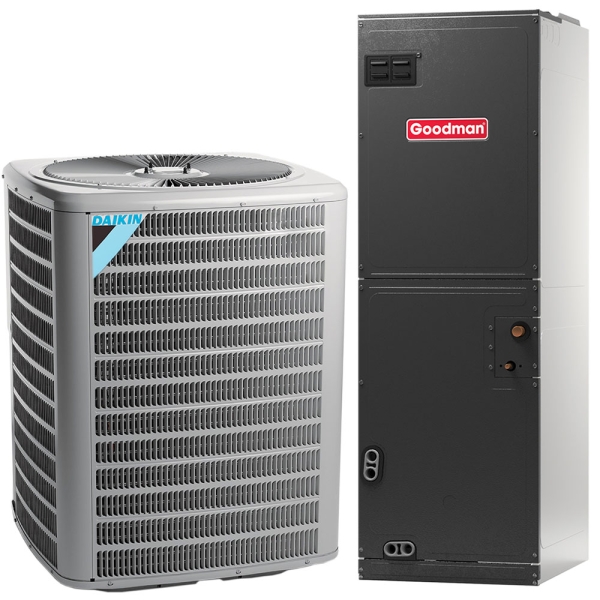

3 Ton 13 SEER Multi Speed Daikin Commercial Central Air Conditioner Split System - Multiposition

Item: HA11705
Models: DX13SA0363 , ARUF37C14
Condition: New
Cool customers are happy customers, and they'll spend more when made comfortable by this 3 Ton Multi-Speed 13 SEER Daikin Commercial Central Air Conditioner Split System. This Daikin DX13SA0363 3 ton condenser is a 3-phase, 208-230 V unit, using chlorine-free R-410A refrigerant, and an energy efficient compressor. The ARUF37C14 air handler is suitable for horizontal, upflow, and downflow installation. Easy-maintenance features include tool-free filter access for standard sized filters.

Availability: Out of stock

As low as: $2,428.00

Price as configured: $2,428.00

Call for availability

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

Overview

Cool customers are happy customers, and they'll spend more when made comfortable by this 3 Ton Multi-Speed 13 SEER Daikin Commercial Central Air Conditioner Split System. This Daikin DX13SA0363 3 ton condenser is a 3-phase, 208-230 V unit, using chlorine-free R-410A refrigerant, and an energy efficient compressor. The ARUF37C14 air handler is suitable for horizontal, upflow, and downflow installation. Easy-maintenance features include tool-free filter access for standard sized filters.

Goodman 3 Ton Multi Speed Air Handler - ARUF37C14

Goodman HA10308

Manufacturer Highlights

The Goodman® brand ARUF Series Air Handler offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Suitable for use with the refrigerants R-410A and R-22
  • All-aluminum evaporator coil
  • Check flowrater expansion device for cooling-only and heat pump applications
  • Direct-drive, multi-speed motor
  • Transformer and blower time-delay on all units
  • AHRI Certified; ETL Listed

Cabinet Features

  • Rust-resistant, fully insulated steel cabinet
  • Galvanized, leather grain-embossed finish
  • Attractive Architectural Gray painted front panels
  • Built-in coil has horizontal, vertical, and downflow drain pans with secondary drain connections
  • Built-in filter rack for 1" filter (filter not included)
  • Power supply entry at top; low-voltage entry on left side and top

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model DX13SA0363,ARUF37C14
UPC 663051534919
AHRI Number 7988968
Bundle Avg Coverage Area 1,500 - 1,800 Sq Ft
Bundle Cooling Capacity 3 Ton
Bundle Cooling Efficiency 13 SEER
EER 11
Region Compatibility Nationwide
California Residents see Prop 65 WARNING

DX13SA0363 Specifications:

Model DX13SA0363
UPC 663051534919
Avg Coverage Area 1,500 - 1,800 Sq Ft
Compressor Single Stage
Cooling Capacity 3 Ton
Electrical Phase 3-Phase
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 20 amps
Product Height (in) 31
Product Length (in) 31
Product Width (in) 31
Cooling Efficiency 13 SEER
Suction Line Size 3/4 inch
System Application Type Central Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 155.0000
Region Compatibility Nationwide

ARUF37C14 Specifications:

Model ARUF37C14
UPC 663051512481
Air Flow Direction Downflow, Horizontal, Upflow
Configuration Floor Mounted
Blower Motor Multi Speed
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 20 kW
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Product Height (in) 53.438
Product Length (in) 21
Product Width (in) 21
Suction Line Size 7/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts
Weight (lbs) 130.0000
