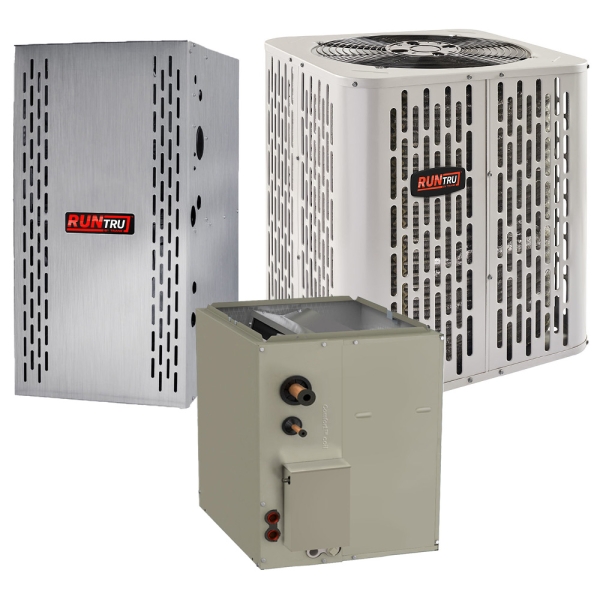

3 Ton 14.3 SEER2 60K BTU 80% AFUE Multi Speed Trane RunTru Central Heat Pump & Gas Furnace Split System - Multiposition - R454B
Shop All RUNTRU

Accessories
Description / Documents
Ensuring a warm and welcoming atmosphere for your loved ones and visitors doesn’t have to be a difficult task. While the latest changes to refrigerant regulations and the multitude of options on the market can feel overwhelming, the 3 Ton 14.3 SEER2 60K BTU 80% AFUE Multi Speed Trane RunTru Central Heat Pump & Gas Furnace Split System - Multiposition makes it easy by providing a complete solution that addresses both your heating and cooling requirements. With numerous components supported by AHRI and Energy Star certifications, as well as ETL and UL listings, this Trane Heat Pump & Furnace proves the integrity of every safety and functional claim. Suitable for homes ranging from 1500 to 1800 square feet, this 3 Ton Trane System ensures your living space stays at your ideal temperature, no matter the time of year.
Built with a selection of high-quality hardware, the heat pump in the 3 Ton 14.3 SEER2 60K BTU 80% AFUE Multi Speed Trane RunTru Central Heat Pump & Gas Furnace Split System - Multiposition provides comfort in every season. With a durable all-aluminum coil, this Trane Split System provides excellent protection against rust and corrosion to provide uncompromising performance over time. The scroll compressor operates silently and efficiently, prioritizing your comfort beyond simple temperature management. With a pre-painted steel cabinet and base pan that can withstand the elements, this Trane Heat Pump continues to deliver exceptional climate control throughout your space for years to come.
When it comes to the coldest winter months, the gas furnace in the 3 Ton 14.3 SEER2 60K BTU 80% AFUE Multi Speed Trane RunTru Central Heat Pump & Gas Furnace Split System - Multiposition effectively disperses warm air in every room of your home to keep the chill at bay. Designed to accommodate numerous venting choices per configuration, this Trane Multiposition Furnace offers the flexibility to guarantee a match with your home’s unique layout. Enclosed in a sturdy galvanized steel cabinet, this Trane Split System makes sure that the inner workings are shielded from potential hazards to provide dependable performance even in freezing conditions.
Pushing your system’s overall efficiency over the edge, the evaporator coil in the 3 Ton 14.3 SEER2 60K BTU 80% AFUE Multi Speed Trane RunTru Central Heat Pump & Gas Furnace Split System - Multiposition works in tandem with other hardware to guarantee optimal results year-round. Tested at pressures above 500 PSI to find any leaks, this Trane System is ready to provide peak performance right after setup. Designed for ease of installation and servicing, this Trane Split System offers consistent, dependable comfort for your home all year long.
With so many outstanding benefits at your fingertips, why would you want to wait any longer to make the upgrade? Invest in this 3 Ton 60k BTU Trane RunTru Central Heat Pump & Gas Furnace Split System today and convert your home into the peaceful retreat you’ve always envisioned.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | A5HP4036A1000A, A801X060BM4S, 5TXCB003AS3HCA |
|---|---|
| AHRI Number | 215486361 |
| Gas Furnace Efficiency | 80% |
| Bundle Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Bundle Cooling Capacity | 3 Ton |
| Bundle Cooling Efficiency (SEER2) | 14.3 |
| Heat Pump Efficiency (HSPF2) | 7.5 |
| Region Compatibility | Nationwide |
A5HP4036A1000A Specifications:
| Model | A5HP4036A1000A |
|---|---|
| UPC | 612461413123 |
| Product Height (in) | 38.1 |
| Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Product Length (in) | 35.6 |
| Compressor | Single Stage |
| Product Width (in) | 35.6 |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 7.5 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 5/16 inch |
| Max Overcurrent Protection | 30 amps |
| Weight (lbs) | 256.000000 |
| Primary Heating Capacity | 35,001 - 40,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 14.3 |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, 10 Year Compressor |
| Region Compatibility | Nationwide |
A801X060BM4SD Specifications:
| Model | A801X060BM4SD |
|---|---|
| AHRI Number | 204606302 |
| Product Height (in) | 34 |
| Gas Furnace Efficiency | 80% |
| Product Length (in) | 28.75 |
| Configuration | Floor Mounted |
| Product Width (in) | 17.5 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Blower Motor | Multi Speed |
| Cooling Compatibility (up to) | 4 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | Metal |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 132.000000 |
| Primary Heating Capacity | 48,000 - 60,000 BTU |
| System Application Type | Central Split Systems |
| Vent Connection | 4 inches |
| Voltage | 120 |
| Warranty | 5 Year Parts, 20 Year Heat Exchanger |
5TXCB003AS3HCA Specifications:
| Model | 5TXCB003AS3HCA |
|---|---|
| AHRI Number | 216739524 |
| Product Height (in) | 20.75 |
| Air Flow Direction | Horizontal, Vertical |
| Product Length (in) | 27.66 |
| Cooling Capacity | 1.5 Ton, 2 Ton, 2.5 Ton, 3 Ton |
| Product Width (in) | 17.5 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 50.000000 |
| Refrigerant | R-454b |
| Suction Line Size | 3/4 inch |
