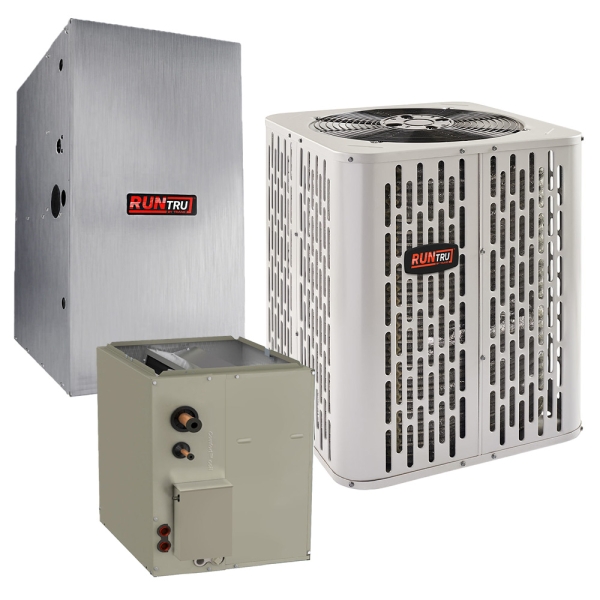

3 Ton 14.3 SEER2 80k BTU 95% AFUE Multi Speed Trane RunTru Central Air Conditioner & Gas Furnace Split System - Multiposition - R454B
Shop All RUNTRU

Accessories
Description / Documents
Ensuring the comfort level you want within your home doesn’t have to be a distant aspiration. While recent updates to refrigerant standards and the vast range of options available can feel like a deterrent from making a change, the 3 Ton 14.3 SEER2 80k BTU 95% AFUE Multi Speed Trane RunTru Central Air Conditioner & Gas Furnace Split System - Multiposition streamlines the process by providing a comprehensive solution for all your heating and cooling needs. With numerous system components holding AHRI and Energy Star certifications, along with ETL and UL listings, this Trane AC & Furnace guarantees the reliability of every performance and safety claim. Designed for spaces between 1500 and 1800 square feet, this 3 Ton Trane System promises consistent, dependable comfort for your home throughout the year.
Loaded with a handful of thoughtfully selected hardware, the air conditioner in the 3 Ton 14.3 SEER2 80k BTU 95% AFUE Multi Speed Trane RunTru Central Air Conditioner & Gas Furnace Split System - Multiposition guarantees your home remains comfortably cool even during the hottest days of summer. Able to maintain a constant temperature of 55 degrees Fahrenheit without additional assistance, on top of the ability to cool down your home to as low as 20 degrees Fahrenheit by adding in an optional kit, this Trane AC is well-prepared for even the most extreme cooling demands. Constructed with heavy duty galvanized steel and treated with a weather-resistant powder paint finish, the cabinet of this Trane Air Conditioner passes a 1000-hour salt spray test, confirming its resilience against harsh weather conditions.
Pushing the performance of the system to even higher levels, the gas furnace in the 3 Ton 14.3 SEER2 80k BTU 95% AFUE Multi Speed Trane RunTru Central Air Conditioner & Gas Furnace Split System - Multiposition goes above and beyond to craft a cozy, inviting atmosphere that fights off the bitter cold of winter. With both primary and secondary heat exchangers crafted from stainless steel, this Trane Furnace makes full use of the material’s inherent durability to ensure dependable, long-lasting performance. Fitted with an ECM motor, this Trane Split System delivers effective and consistent airflow to make sure that every inch of your home remains at the perfect temperature for maximum comfort.
Taking the system’s overall efficiency a step further, the evaporator coil in the 3 Ton 14.3 SEER2 80k BTU 95% AFUE Multi Speed Trane RunTru Central Air Conditioner & Gas Furnace Split System - Multiposition works in harmony with the other components to ensure optimal performance. Pressure tested above 500 PSI to detect leaks, you can trust that your new Trane System will perform at its highest level from the moment installation is complete. Designed with ease of installation and maintenance in mind, this Trane Split System ensures reliable operation that gives you the consistent, year-round comfort you crave.
With so many game changing features available to you, what’s holding you back from upgrading your home’s comfort? Acquire this 3 Ton 80k BTU Trane RunTru Central Air Conditioner & Gas Furnace Split System today and transform your home into the peaceful sanctuary you’ve always envisioned.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | A5AC4036A1000A, A951X080BU4SA, 5TXCB004AS3HCA |
|---|---|
| AHRI Number | 215559818 |
| Gas Furnace Efficiency | 95% |
| Bundle Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Bundle Cooling Capacity | 3 Ton |
| Bundle Cooling Efficiency (SEER2) | 14.3 |
| Primary Heating Capacity | 35,001 - 40,000 BTU |
| Region Compatibility | Nationwide |
A5AC4036A1000A Specifications:
| Model | A5AC4036A1000A |
|---|---|
| UPC | 612461473202 |
| Product Height (in) | 33 |
| Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Product Length (in) | 33 |
| Compressor | Single Stage |
| Product Width (in) | 30 |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 5/16 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 183.000000 |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 14.3 |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, 10 Year Compressor |
| Region Compatibility | Nationwide |

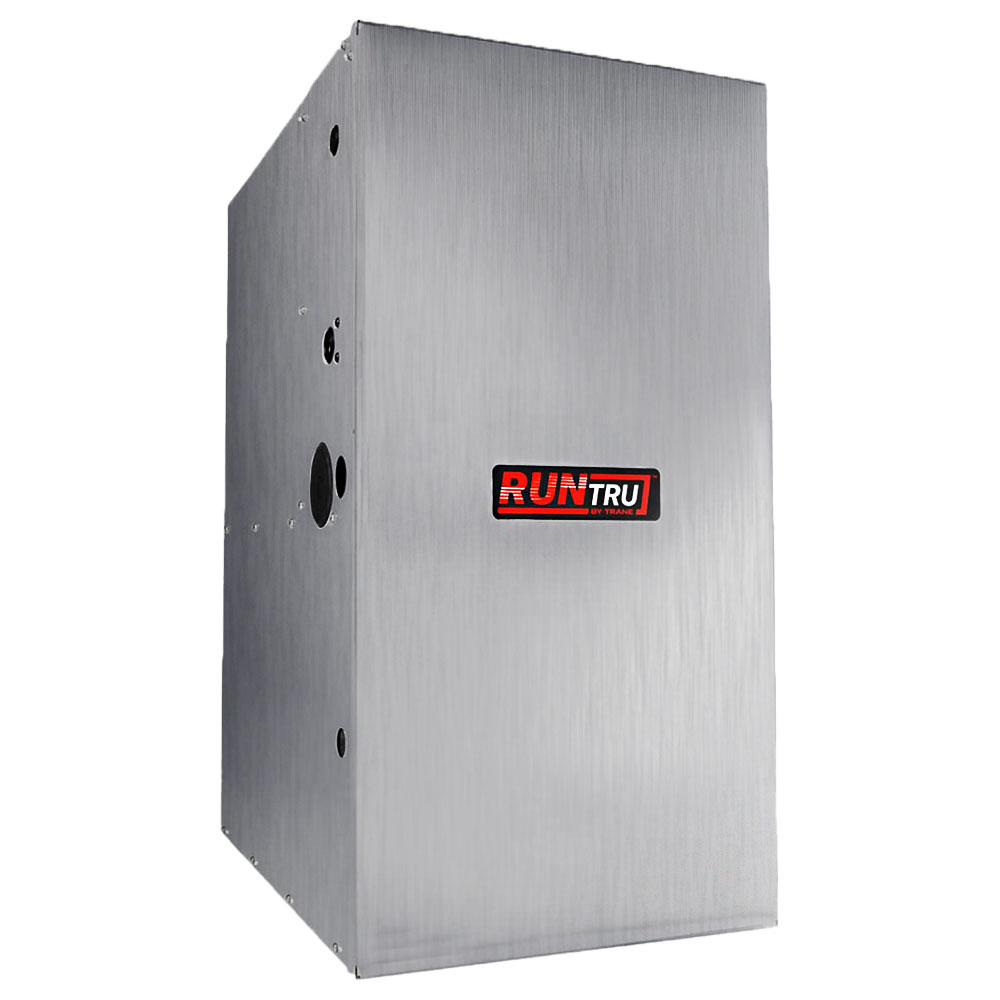

A951X080BU4SA Specifications:
| Model | A951X080BU4SA |
|---|---|
| Product Height (in) | 34 |
| Gas Furnace Efficiency | 95% |
| Product Length (in) | 28.75 |
| Configuration | Floor Mounted |
| Product Width (in) | 17.5 |
| Air Flow Direction | Upflow |
| Avg Coverage Area | 2,500 - 3,000 Sq Ft |
| Blower Motor | Multi Speed |
| Cooling Compatibility (up to) | 5 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | Metal |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 135.000000 |
| Primary Heating Capacity | 75,001 - 80,000 BTU |
| System Application Type | Central Split Systems |
| Vent Connection | 2 inches |
| Voltage | 120 |
| Warranty | 5 Year Parts, 20 Year Heat Exchanger |
5TXCB004AS3HCA Specifications:
| Model | 5TXCB004AS3HCA |
|---|---|
| UPC | 612461376237 |
| Product Height (in) | 22.5 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Product Length (in) | 21.5 |
| Cooling Capacity | 3 Ton, 3.5 Ton |
| Product Width (in) | 17.5 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 50.000000 |
| Refrigerant | R-454b |
| Suction Line Size | 7/8 inch |
| Warranty | 5 Year Parts, 10 Year Evaporator Coil |
