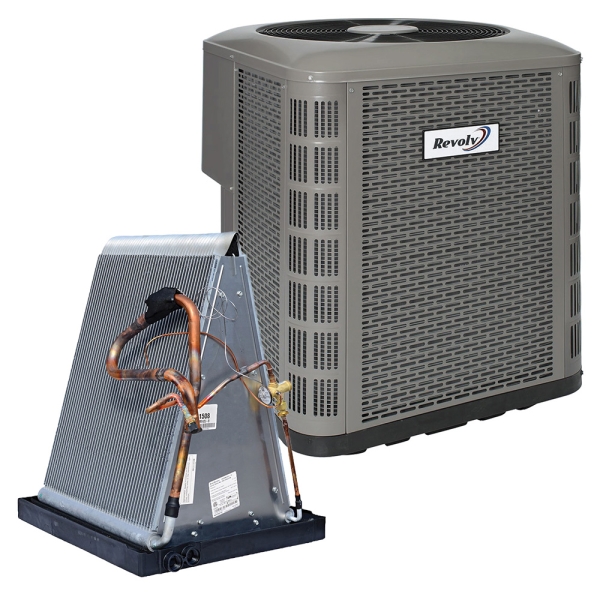

When the sweltering hotness of a heat wave in summer leaves you sweating, it’s time to make a serious change to your home’s HVAC system. With the 3 Ton 14.3 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B, you can guarantee the calming cool you crave in the middle of summertime. Earning the support of both AHRI certification and ETL listing, the Revolv AC & Coil System passes intensive independent inspections to prove the validity of every safety and performance claim. For your 1500 to 1800 square foot mobile home, make the most of every square inch with an upgrade to a 3 Ton Revolv System.

This Bundle Includes:

2.5 to 3 Ton Revolv Mobile Home Evaporator Coil - R454b
Item: HA26068Model: C85DAMX3036U-B Qty: 1
Accessories
Description / Documents

When the sweltering hotness of a heat wave in summer leaves you sweating, it’s time to make a serious change to your home’s HVAC system. With the 3 Ton 14.3 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B, you can guarantee the calming cool you crave in the middle of summertime. Earning the support of both AHRI certification and ETL listing, the Revolv AC & Coil System passes intensive independent inspections to prove the validity of every safety and performance claim. For your 1500 to 1800 square foot mobile home, make the most of every square inch with an upgrade to a 3 Ton Revolv System.

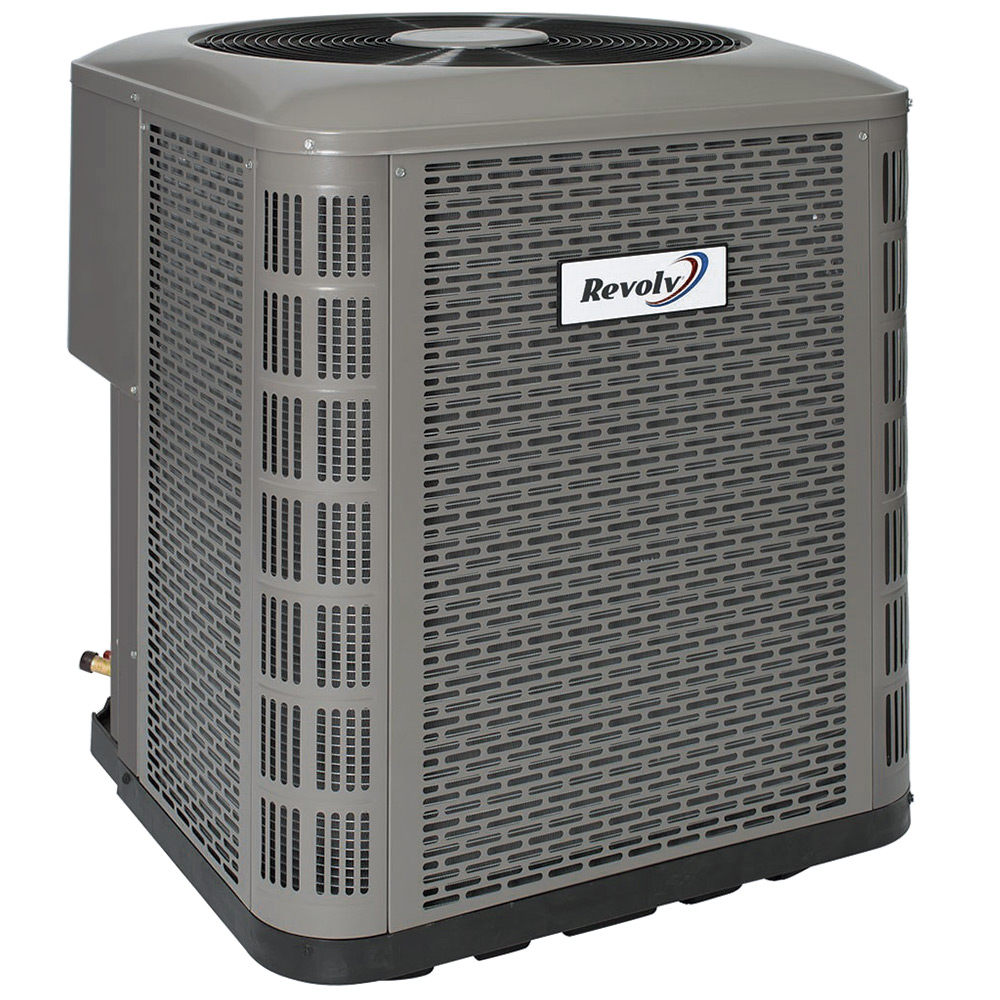

Designed to guarantee reliably crisp temperatures, the condenser in the 3 Ton 14.3 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B won’t fall short of giving you the quality of life you’ve always deserved. Galvanized steel makes up the cabinet’s construction, the powder-paint coating smoothing sharp corners and adding enough resilience to combat fading, chipping, scratching, and corrosion, going as far as earning a 950-hour salt-spray approval. The permanently lubricated PSC motor and base pan collaborate to keep operation quiet, deadening unnecessary vibrations during regular cycling. Loaded with enough refrigerant for 20 feet of line set, sporting a removable top grille assembly, and utilizing a quality scroll compressor, every part of the process is kept in mind from the very start. With an easy-to-remove jacket that allows a licensed professional the means to investigate the compressor and controls without having to remove the top grille, the Revolv AC System gives you the top-tier performance that older HVAC systems would struggle to provide to mobile homes.

Providing efficient performance and a simple setup, the evaporator coil in the 3 Ton 14.3 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B goes above and beyond to ensure your wildest expectations are met. Designed to support R454B refrigerant, the Revolv Coil gains the benefits of zero ozone depletion potential and a lower GWP (global warming potential) than previous refrigerant options. The included TXV metering device lets the Revolv System keep refrigerant at the right level of superheat, resulting in the dependable performance you desire. With leak-free down turn braze connections, the Revolv AC & Coil System has everything you need to provide the cooling results you demand when the sultry summer sun beats down.

Every inch of your manufactured or modular housing should be comfortably cool in the throws of summer heat, so why would you settle for anything less? Bring home the 3 Ton Revolv Mobile Home Air Conditioner & Coil System running on R454B refrigerant today and ensure the climate control your family needs.

Customer Reviews / Q&A
Specifications

System Overview

Model HSA4ME5M1SN36K,C85DAMX3036U-B
AHRI Number 216044460
Bundle Avg Coverage Area 1,500 - 1,800 Sq Ft
Bundle Cooling Capacity 3 Ton
Bundle Cooling Efficiency (SEER2) 14.3
Region Compatibility Nationwide

HSA4ME5M1SN36K Specifications:

Model HSA4ME5M1SN36K
UPC 663132529247
Product Height (in) 37.25
Avg Coverage Area 1,500 - 1,800 Sq Ft
Product Length (in) 31.75
Compressor Single Stage
Product Width (in) 31.75
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 30 amps
Weight (lbs) 133.000000
Refrigerant R-454b
Cooling Efficiency (SEER2) 14.3
Suction Line Size 3/4 inch
System Application Type Mobile Home Systems
Voltage 240
Warranty 5 Year Parts, 10 Year Compressor
Region Compatibility Nationwide

C85DAMX3036U-B Specifications:

Model C85DAMX3036U-B
UPC 663132533695
Product Height (in) 18
Air Flow Direction Vertical
Product Length (in) 19.5
Cooling Capacity 2.5 Ton, 3 Ton
Product Width (in) 18.125
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Weight (lbs) 40.000000
Refrigerant R-454b
Suction Line Size 3/4 inch
Warranty 5 Year
