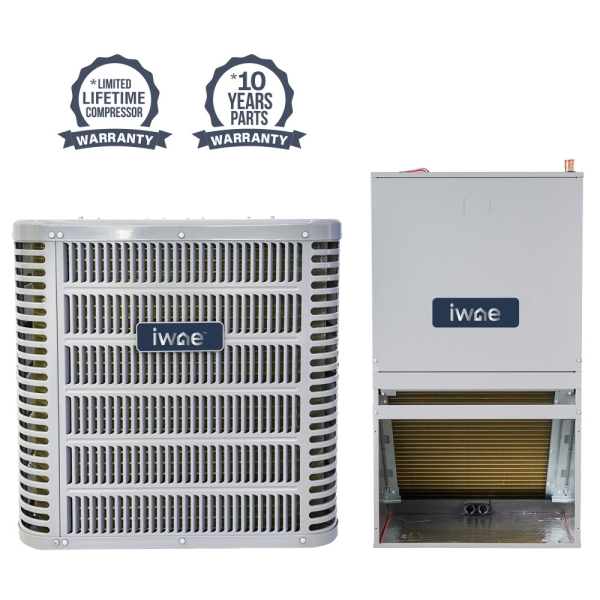

3 Ton 14.3 SEER2 Variable Speed IWAE Central Heat Pump Split System - Stud Mounted - R454B
Shop All IWAE

Accessories
Description / Documents
Letting your family bask in consistently comfortable indoor temperatures is one of the main responsibilities of your HVAC system. When your antiquated hardware can’t keep up with the climate in your region, turning to the 3 Ton 14.3 SEER2 IWAE Central Heat Pump Split System - Stud Mounted - R454B is a quick and easy way to maximize your home’s temperature regulation capabilities. Earning AHRI certification and ETL listing, the IWAE Central Heat Pump System passes intensive inspections from independent agencies to verify the accuracy of every functional and safety claim. Beat the heat during summer or cozy up through winter weather in any room of your 1500 to 1800 square foot space with the 3 Ton IWAE Split System.

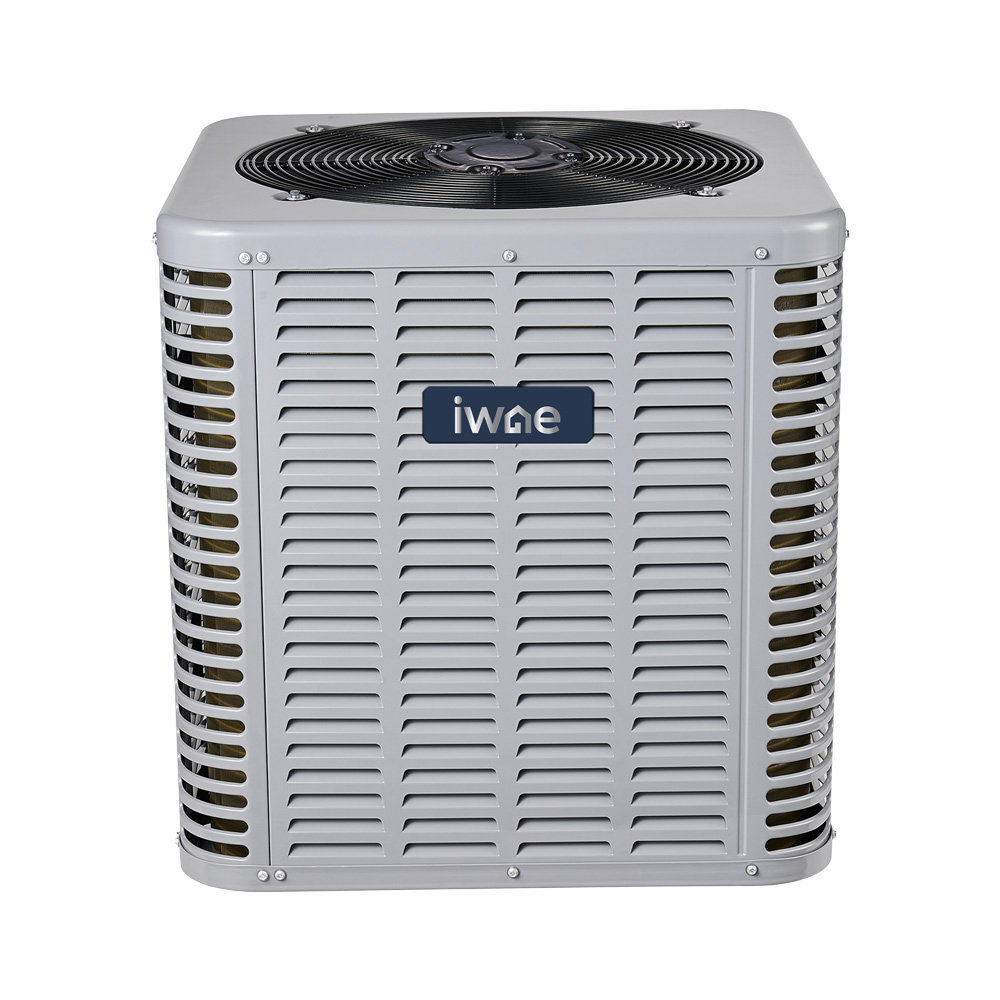

Optimizing your indoor comfort from every direction, the condenser in the 3 Ton 14.3 SEER2 IWAE Central Heat Pump Split System - Stud Mounted - R454B goes above and beyond to upgrade your standard of living. By using an energy-efficiency compressor that’s able to handle cooling when ambient conditions range from 54 to 126 degrees Fahrenheit and heating in temperatures between 14 and 90 degrees Fahrenheit, most climates in the US won’t have any issues. A sound control blanket lowers operational noise levels, minimizing disruption of your day-to-day. Equipped with precautions like a gold fin corrosion coating, baked enamel finish, time-delay defrost function, filter drier, and factory-installed A2L sensor, the IWAE Heat Pump makes it easy to enjoy your home all year long.

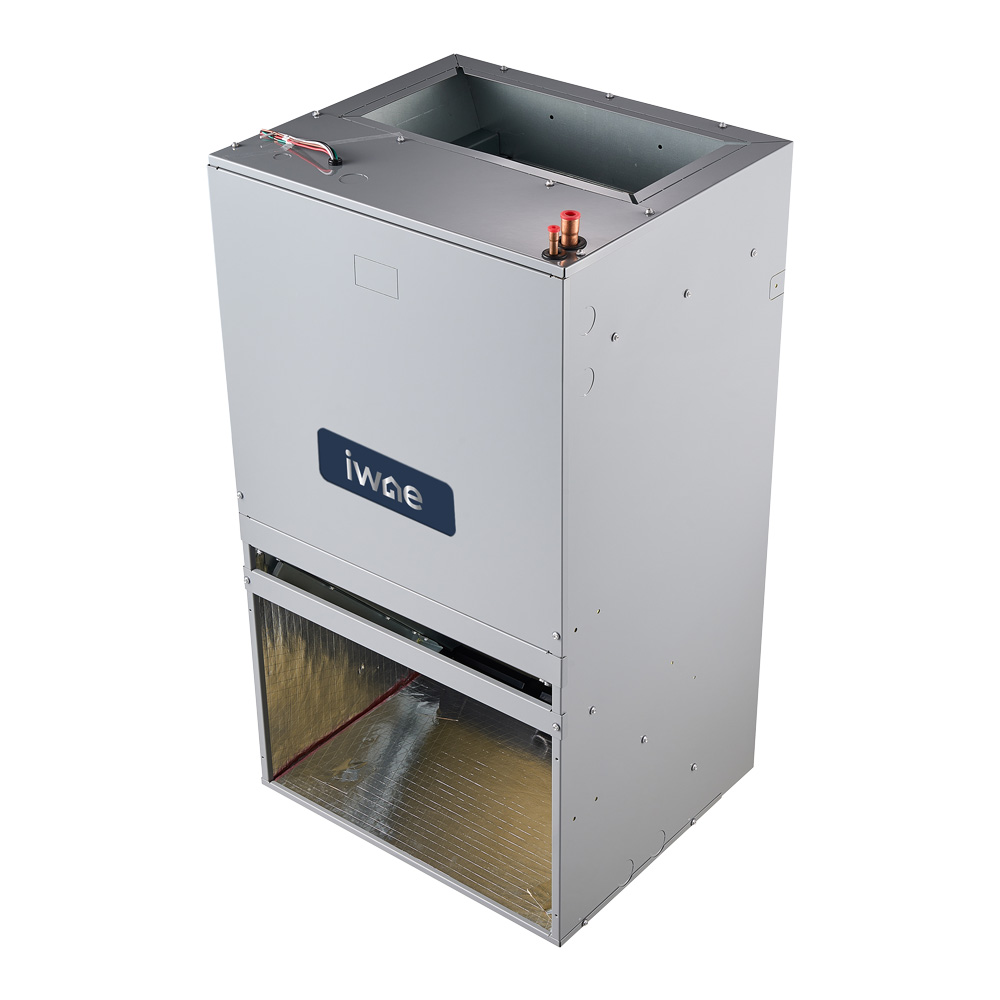

Bringing the same great performance inside, the air handler in the 3 Ton 14.3 SEER2 IWAE Central Heat Pump Split System - Stud Mounted - R454B won’t fall shy of crafting your ideal indoor ambiance. A variable-speed ECM indoor blower motor and factory-installed A2L sensor combine to grant the IWAE Air Handler the means to self-monitor and adapt to your needs without the need for your input. Coming with a factory-standard front return, while allowing for conversion to a bottom return with removal of the base pan panel on the front, the IWAE Stud Mounted Air Handler has the versatility to suit your needs. Thanks to the internal lining of foil-faced insulation that mitigates condensation buildup and heat loss, the IWAE Split System goes the distance to provide your home with top-tier temperature control.
Between the game changing climate control performance and safety net of a warranty that includes 10 years of coverage on parts and a limited lifetime on the compressor, what do you gain by hesitating on an upgrade? Opt for a 3 Ton IWAE Central Heat Pump Split System with Stud Mounted Air Handler equipped with R454B refrigerant today and give your loved ones the exact indoor conditions they crave in any season.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | IWAESHS4T3621AA,IWAEAWPEF36E21AA |
|---|---|
| AHRI Number | 217513209 |
| Bundle Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Bundle Cooling Capacity | 3 Ton |
| Bundle Cooling Efficiency (SEER2) | 14.3 |
| Heat Pump Efficiency (HSPF2) | 7.5 |
| Region Compatibility | Nationwide |
IWAESHS4T3621AA Specifications:
| Model | IWAESHS4T3621AA |
|---|---|
| UPC | 840433703976 |
| AHRI Number | 217513208 |
| Product Height (in) | 25 |
| Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Product Length (in) | 29.1 |
| Compressor | Single Stage |
| Product Width (in) | 29.1 |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 7.5 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 30 amps |
| Weight (lbs) | 173.000000 |
| Primary Heating Capacity | 30,001 - 35,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 14.3 |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, Lifetime Compressor |
| Region Compatibility | Nationwide |
IWAEAWPEF36E21AA Specifications:
| Model | IWAEAWPEF36E21AA |
|---|---|
| UPC | 840433704119 |
| Product Height (in) | 39.5 |
| Configuration | Wall Mounted |
| Product Length (in) | 19 |
| Air Flow Direction | Downflow, Horizontal, Upflow, Vertical |
| Product Width (in) | 22.1 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 10 kW |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 6 amps |
| Weight (lbs) | 110.000000 |
| Refrigerant | R-454b |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, Lifetime Compressor |
