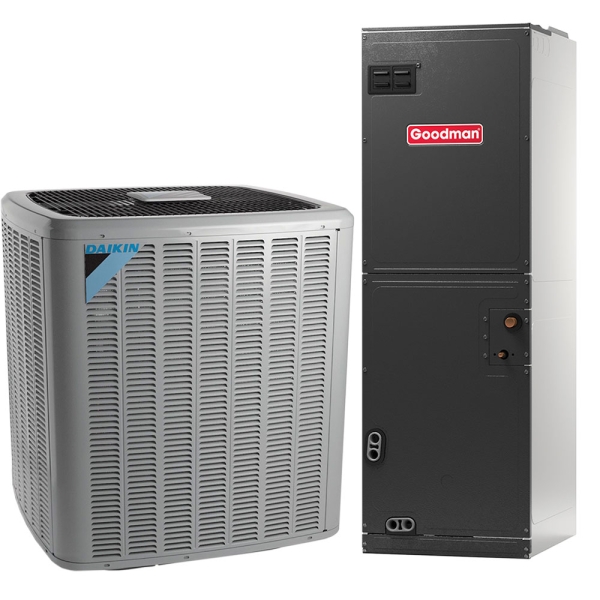

3 Ton 14 SEER Multi Speed Daikin Central Heat Pump Split System - Multiposition

Item: HA16959
Models: DZ14SA0363, ARUF37C14, TX3N4
Condition: New


Availability: In stock

As low as: $2,608.01

Price as configured: $2,608.01

Ingram Financing


* Required Fields

Ships Within 1-2 Business Days

Up To $200 Local Pickup Discount

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

1.5 to 3 Ton Goodman Thermostatic Expansion Valve Kit 1.5 to 3 Ton Goodman Thermostatic Expansion Valve Kit Item: HA11902 Model: TX3N4 Qty: 1

Overview



Goodman 3 Ton Multi Speed Air Handler - ARUF37C14

Goodman HA10308

Manufacturer Highlights

The Goodman® brand ARUF Series Air Handler offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Suitable for use with the refrigerants R-410A and R-22
  • All-aluminum evaporator coil
  • Check flowrater expansion device for cooling-only and heat pump applications
  • Direct-drive, multi-speed motor
  • Transformer and blower time-delay on all units
  • AHRI Certified; ETL Listed

Cabinet Features

  • Rust-resistant, fully insulated steel cabinet
  • Galvanized, leather grain-embossed finish
  • Attractive Architectural Gray painted front panels
  • Built-in coil has horizontal, vertical, and downflow drain pans with secondary drain connections
  • Built-in filter rack for 1" filter (filter not included)
  • Power supply entry at top; low-voltage entry on left side and top

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model DZ14SA0363,ARUF37C14,TX3N4
Bundle Avg Coverage Area 1,500 - 1,800 Sq Ft
Bundle Cooling Capacity 3 Ton
Bundle Cooling Efficiency 14 SEER
EER 11.5
Heat Pump Efficiency (HSPF) 8.2
Region Compatibility Nationwide
California Residents see Prop 65 WARNING

DZ14SA0363 Specifications:

Model DZ14SA0363
Avg Coverage Area 1,500 - 1,800 Sq Ft
Compressor Single Stage
Cooling Capacity 3 Ton
Electrical Phase 3-Phase
Heat Pump Efficiency (HSPF) Up to 8.2
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 20 amps
Primary Heating Capacity 35,001 - 40,000 BTU
Product Height (in) 32.25
Product Length (in) 29
Product Width (in) 29
Refrigerant R-410a
Cooling Efficiency 14 SEER
Suction Line Size 7/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 232.0000
Region Compatibility Nationwide

ARUF37C14 Specifications:

Model ARUF37C14
UPC 663051512481
Air Flow Direction Downflow, Horizontal, Upflow
Configuration Floor Mounted
Blower Motor Multi Speed
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 20 kW
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Product Height (in) 53.438
Product Length (in) 21
Product Width (in) 21
Suction Line Size 7/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts
Weight (lbs) 130.0000

TX3N4 Specifications:

Model TX3N4
UPC 681344941480
Product Height (in) 3.7
Product Length (in) 9.7
Product Width (in) 5.8
Warranty 1 Year
Weight (lbs) 2.0000
