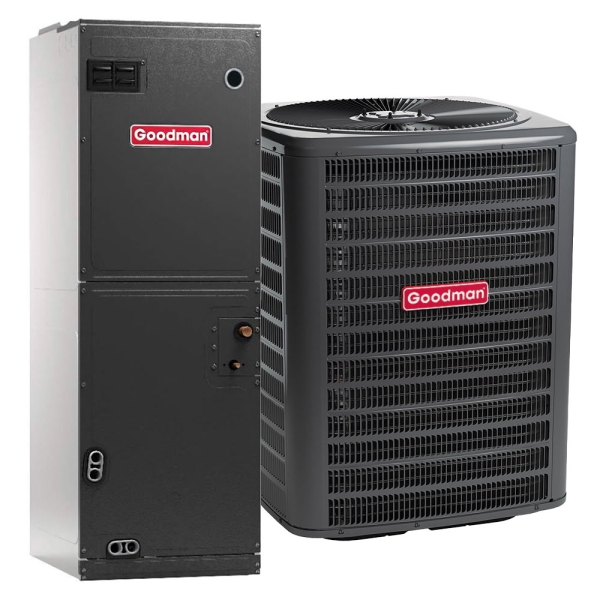

3 Ton 15.2 SEER2 Multi Speed Goodman Central Air Conditioner Split System - Multiposition

Item
HA23471
Models GSXH503610, AVPTC37D14
Condition
New
Was: Add to Cart for Discount

Customize 3 Ton 15.2 SEER2 Multi Speed Goodman Central Air Conditioner Split System - Multiposition

* Required Fields

In stock

Ships Within 2-3 Business Days
Summary

    Get $100 Cash Back on Your Qualifying Purchase

    1. Spend over $1000 on heating and air equipment.
    2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
    3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
    4. Get a check mailed to you for $100.

    Limited Time Offer. Act Now!

    Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.


    Get everything right and save time

    Contact an expert now.

    This Bundle Includes

    3 Ton 15.2 SEER2 Goodman Central Air Conditioner Condenser
    Item: HA22285 Model: GSXH503610
    Qty: 1

    What's included

    Escape the oppressive grasp of summertime and breathe in the invigorating freshness of the 3 Ton 15.2 SEER2 Multi Speed Goodman Central Air Conditioner Split System - Multiposition. Both elements of this Goodman Split System were selected to provide reliable performance. The Air Conditioner not only meets UL 60335-2-40 standards but also complies with the unit integrity standards specified in the 2020 Florida Building Code when equipped with the proper anchor bracket kit. The Air Handler adheres to two impressive ASHRAE 193 air leak standards: less than 2% at 1.0 inch of water and less than 1.4% at 0.5 inches of water. Both components sport AHRI certification and ETL listing, providing validation that all performance claims are accurate. With the capacity to handle spaces ranging from 1500 to 1800 square feet and an outstanding SEER2 rating of 15.2, this 3 Ton Goodman system provides the refreshing temperatures you've been seeking.

    The AC of the 3 Ton 15.2 SEER2 Multi Speed Goodman Central Air Conditioner Split System - Multiposition boasts a multitude of features to provide consistently crisp temperatures. Manufactured for a straightforward setup, this Goodman Air Conditioner features a factory-installed filter drier, service valves with sweat connections, and easily accessible gauge ports. The Goodman AC comes fully charged, ready to operate with up to 15 feet of tubing length straight from the factory. With a steel louver coil guard and a heavy-gauge galvanized-steel cabinet varnished in an architectural gray powder-paint with a 500-hour salt-spray finish, the internal components are shielded from most severe weather. Including a single-panel access to the controls with plenty of space for field-installed accessories, servicing this Goodman Split System is uncomplicated.

    The air handler of the 3 Ton 15.2 SEER2 Multi Speed Goodman Central Air Conditioner Split System - Multiposition is built with all the equipment necessary to maintain arctic air in your home. Internal factory-installed thermal expansion valves allow the corrosion-resistant, all-aluminum evaporator coil in this Goodman Air Handler to hookup to cooling and heat pumps. This Goodman Split System is designed to fit to your home's layout: the coil mounting track provides quick repositioning, horizontal and vertical configurations handle your airflow needs, and the option to install electric heater kits from 3kW-25kW adds flexibility to guarantee any needs are met. Even in humid climates, this Multi Speed Goodman remains consistent with both screw-less sides and back to reduce condensation and ensure longevity.

    With these and more advantages awaiting you, why wait any longer? Upgrade your AC to this Goodman Split System and bid farewell to the summer heat in your home.


    3.5 Ton Variable Speed Goodman Air Handler - Multiposition - 24.5" Cabinet

    3.5 Ton Variable Speed Goodman Air Handler - Multiposition - 24.5

    Manufacturer Highlights

    The Goodman brand AVPTC Series Air Handler offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

    Standard Features

    • Compatible with the ComfortNet™ Communicating System family of products
    • Maximum four low-voltage wires required for operation in communicating mode
    • Auto configuration of the airflow and tonnage in communicating mode
    • In non-communicating mode, up to 12 field-selectable airflow settings can be adjusted to optimize the system's CFM for each individual mode of operation
    • R-410A refrigerant-compatible
    • Factory-installed thermal expansion valves for cooling and heat pump applications
    • Variable-speed ECM blower motor
    • All-aluminum evaporator coil
    • Provides constant CFM over a wide range of static pressure conditions independent of duct system; provides low CFM for efficient fan-only operation
    • CFM indicator
    • Improved humidity control and comfort
    • Compatible with heat pumps and variable capacity cooling applications
    • Built-in coil has horizontal, vertical, and downflow drain pans with secondary drain connections
    • AHRI Certified; ETL Listed


    Cabinet Features

    • Fully insulated, painted steel cabinet with attractive Architectural Gray finish
    • Compact, versatile upflow, downflow, or horizontal multi-position installations
    • Low-voltage cabinet connections; control circuit is arranged to permit staging
    • Power supply on top; low-voltage entry on top or side
    • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
    • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
    • Foil-faced insulation is glued in place and covers the entire blower case to reduce operating sound and cabinet condensation

    Warranty Terms

    For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

    For additional warranty information, click here.

    More Information
    Model GSXH503610,AVPTC37D14
    UPC 663051628953
    AHRI Number 208152520
    Bundle Avg Coverage Area 1,500 - 1,800 Sq Ft
    Bundle Cooling Capacity 3 Ton
    Bundle Cooling Efficiency (SEER2) 15.2
    EER2 12.5
    Region Compatibility Nationwide
    California Residents see Prop 65 WARNING

    GSXH503610 Specifications:

    More Information
    Model GSXH503610
    UPC 663051628953
    Product Height (in) 35.5
    Avg Coverage Area 1,500 - 1,800 Sq Ft
    Product Length (in) 35.5
    Compressor Single Stage
    Product Width (in) 39.5
    Cooling Capacity 3 Ton
    Electrical Phase 1-Phase
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Max Overcurrent Protection 30 amps
    Weight (lbs) 224.000000
    Refrigerant R-410a
    Cooling Efficiency (SEER2) 15.2
    Suction Line Size 7/8 inch
    System Application Type Central Split Systems
    Voltage 240
    Warranty 10 Year Parts
    Region Compatibility Nationwide

    AVPTC37D14 Specifications:

    More Information
    Model AVPTC37D14
    UPC 663051521216
    Product Height (in) 53.438
    Configuration Floor Mounted
    Product Length (in) 21
    Air Flow Direction Downflow, Horizontal, Upflow
    Product Width (in) 23.313
    Blower Motor Variable Speed
    Cooling Capacity 3.5 Ton
    Electrical Phase 1-Phase
    Heat Strip Compatibility Up to 20 kW
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Max Overcurrent Protection 15 amps
    Weight (lbs) 155.000000
    Suction Line Size 7/8 inch
    System Application Type Central Split Systems
    Voltage 240
    Warranty 10 Year Parts
