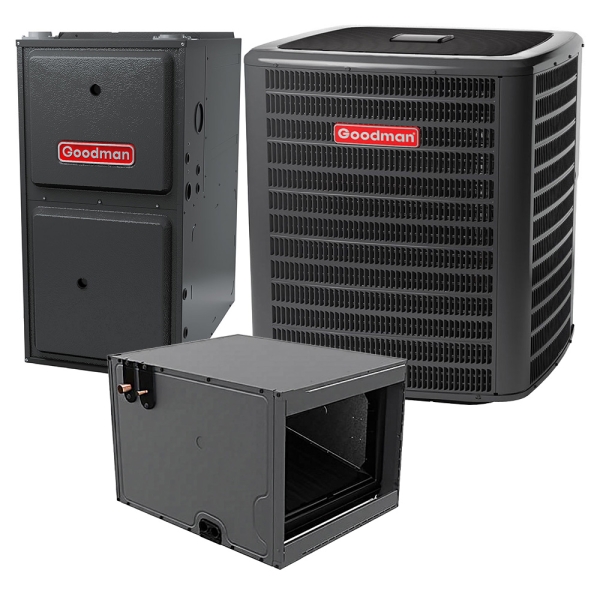

3 Ton 15.5 SEER2 100k BTU 96% AFUE 2 Stage Goodman Central Air Conditioner & Gas Furnace Split System - Horizontal - R32
Shop All GOODMAN

Check your options without affecting your credit score.
Promotional APR options may also be available, subject to approval.

Description / Documents
In shifting seasonal temperatures, having an HVAC solution that can bring the heat and the chill you need is necessary. An upgrade to the 3 Ton 15.5 SEER2 100k BTU 96% AFUE 2 Stage Goodman Central Air Conditioner & Gas Furnace Split System - Horizontal - R32 can make a world of difference in your home’s climate control capabilities if your antiquated hardware can’t keep up. Earning both AHRI certification and ETL listing, the Goodman AC & Gas System proves the validity of its safe, dependable performance claims by passing rigorous examinations from third-party agencies. For your 1500 to 1800 square foot space, craft the comfortable conditions you want in any season with the integration of a 3 Ton Goodman Split System.
During the hot days of summer, the AC in the 3 Ton 15.5 SEER2 100k BTU 96% AFUE 2 Stage Goodman Central Air Conditioner & Gas Furnace Split System - Horizontal - R32 provides respite from the heat with cool conditions throughout your home. Equipped with a steel louver coil guard on the durable casing, the Goodman AC passes a 500-hour salt-spray test. Offering a removable top grille that complies with UL 60335-2-40 regulations and the option of side panel entry, tasks like installation and servicing have never been easier. Thanks to the filter drier, high-efficiency scroll compressor, and extended-life capacitors, the Goodman Split System has everything you need and more to cool down with a brisk breeze in the peak of summer’s heat.
No matter how cold winter gets, the furnace in the 3 Ton 15.5 SEER2 100k BTU 96% AFUE 2 Stage Goodman Central Air Conditioner & Gas Furnace Split System - Horizontal - R32 keeps your indoor ambiance cozy and comfortable. With both left and right side hook-ups for gas and electrical service, as well as certification for both direct and non-direct venting applications, the Goodman Gas Furnace is a versatile option that can suit almost any home layout. By lining the inside of the heat exchanger and blower sections with insulation, the heavy-gauge steel cabinet of the Goodman Furnace manages to maintain a cabinet air leakage rate of 2% or lower. With equipment including a multi-speed ECM blower motor, two-stage gas valve, and two separate heat exchangers, the Goodman Split System goes above and beyond to ensure the toasty temperatures you need to offset frigid outdoor conditions all winter long.
Having an AC condenser, furnace, and evaporator coil that are all designed to work together in harmony is a benefit that shouldn’t be overlooked, so why continue to settle for uncomfortable conditions within your home? Opt for a 3 Ton 100k BTU Horizontal 2 Stage Goodman Central Air Conditioner & Gas Furnace Split System utilizing R32 refrigerant today and enjoy every inch of your living space all year long, no matter what the weather outside is doing.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | GLXS5BA3610,CHPTA4830C3,GR9T961005CN |
|---|---|
| AHRI Number | 215380888 |
| Gas Furnace Efficiency | 96+% |
| Bundle Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Bundle Cooling Capacity | 3 Ton |
| Bundle Cooling Efficiency (SEER2) | 15.5 |
| Primary Heating Capacity | 95,001 - 100,000 BTU |
| Region Compatibility | Nationwide |
GLXS5BA3610 Specifications:
| Model | GLXS5BA3610 |
|---|---|
| UPC | 663051735491 |
| AHRI Number | 215380654 |
| Product Height (in) | 39.5 |
| Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Product Length (in) | 35.5 |
| Compressor | Single Stage |
| Product Width (in) | 35.5 |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 30 amps |
| Weight (lbs) | 191.000000 |
| Refrigerant | R-32 |
| Cooling Efficiency (SEER2) | 15.2 |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Region Compatibility | Nationwide |
CHPTA4830C3 Specifications:
| Model | CHPTA4830C3 |
|---|---|
| UPC | 663051693647 |
| Product Height (in) | 21 |
| Air Flow Direction | Horizontal |
| Product Length (in) | 21 |
| Cooling Capacity | 4 Ton |
| Product Width (in) | 30 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 78.000000 |
| Refrigerant | R-32 |
| Suction Line Size | 7/8 inch |
| Warranty | 10 Year Parts |
GR9T961005CN Specifications:
| Model | GR9T961005CN |
|---|---|
| AHRI Number | 215225030 |
| Product Height (in) | 34.5 |
| Gas Furnace Efficiency | 96+% |
| Product Length (in) | 28.75 |
| Product Width (in) | 21 |
| Air Flow Direction | Horizontal, Upflow |
| Blower Motor | High Efficiency |
| Cooling Compatibility (up to) | 5 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | PVC |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 140.000000 |
| Primary Heating Capacity | 95,001 - 100,000 BTU |
| System Application Type | Central Split Systems |
| Vent Connection | 3 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
