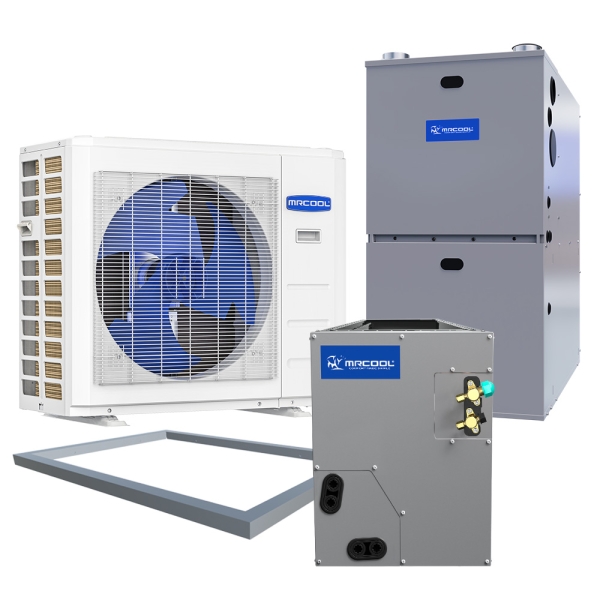

3 Ton 16.1 SEER2 60k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B
Shop All MRCOOL

Accessories
Description / Documents
Enjoying dependable temperature regulation in regions where temperatures fluctuate drastically doesn’t have to be difficult with an upgrade to the 3 Ton 16.1 SEER2 60k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B. Earning AHRI certification, alongside CSA, UL, and ETL listings, the MrCool System ensures peace of mind by passing intensive testing with every core piece of the main hardware. Make the most of your 1500 to 1800 square foot space all year long with a 3 Ton MrCool Split System.
Giving you the heating and cooling performance you need, the condenser in the 3 Ton 16.1 SEER2 60k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B handles every season with ease. Gold Fin corrosion protection keeps the MrCool condenser durable enough to handle coastal climates and industrial zones. Using a modular construction with self-diagnostic abilities, a filter rack with removable cover, and a slide-out blower, servicing is kept simple. With versatile setup options that all provide quiet performance, the MrCool Split System won’t leave you wanting in any weather.
Adding the powerful heating performance you need for frigid winter conditions, the furnace in the 3 Ton 16.1 SEER2 60k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B guarantees toasty temperatures all season long. Supporting both multi-position setup and LP conversion with the included kit, meeting the demands of your space has never been easier. The resilient cabinet allows the two-stage MrCool Split System to maintain efficient heating performance for years to come.
Equipped with R454B refrigerant, the evaporator coil in the 3 Ton 16.1 SEER2 60k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B handles your indoor ambiance with skill and grace. Working equally well in downflow, upflow, and left or right horizontal orientations, the MrCool coil with CoolGuard corrosion resistance caters to the unique layout requirements of your space. Attaching to the furnace via the included flange adapter, and boasting a pre-installed TXV that controls the refrigerant flow, the MrCool Split System has everything you need and more to enjoy your ideal ambiance.
You may be thinking that an HVAC system is only as good as its warranty. Thanks to 10 years of warranty coverage on the parts in the condenser, furnace, and evaporator coil, another 10 years on the compressor in the condenser, and a lifetime of coverage on the heat exchanger in the furnace, you can be confident in the longevity of the MrCool Split System. Enjoy comprehensive climate control with the 3 Ton 60k BTU Multiposition Variable Speed MrCool Central Heat Pump & Gas Furnace Split System using R454B refrigerant today.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | MVP36P36M96060B |
|---|---|
| UPC | 840255599399 |
| AHRI Number | 217666248 |
| Gas Furnace Efficiency | 96+% |
| Bundle Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Bundle Cooling Capacity | 3 Ton |
| Bundle Cooling Efficiency (SEER2) | 16.1 |
| Heat Pump Efficiency (HSPF2) | 8.7 |
| Region Compatibility | Nationwide |
MVP-36-HP-C-230A00-O Specifications:
| Model | MVP-36-HP-C-230A00-O |
|---|---|
| UPC | 840255582711 |
| AHRI Number | 216032538 |
| Product Height (in) | 31.89 |
| Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Product Length (in) | 16.14 |
| Compressor | Inverter |
| Product Width (in) | 37.24 |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 8.7 |
| Line Set Connection Type | Quick Connect, Flared, or Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 30 amps |
| Weight (lbs) | 153.000000 |
| Primary Heating Capacity | 35,001 - 40,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 16.1 |
| Series | VersaPro |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, 10 Year Compressor |
| Region Compatibility | Nationwide |
MGM96EE060B3NB Specifications:
| Model | MGM96EE060B3NB |
|---|---|
| UPC | 840255582636 |
| Product Height (in) | 33.75 |
| Gas Furnace Efficiency | 96+% |
| Product Length (in) | 24.813 |
| Configuration | Floor Mounted |
| Product Width (in) | 17.5 |
| Air Flow Direction | Horizontal, Vertical |
| Avg Coverage Area | 750 - 900 Sq Ft |
| Blower Motor | High Efficiency |
| Cooling Compatibility (up to) | 3 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | PVC |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 147.500000 |
| Primary Heating Capacity | 40,001 - 45,000 BTU |
| Series | VersaPro |
| System Application Type | Central Split Systems |
| Vent Connection | 2 inches, 3 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
MCMP3036BOTB Specifications:
| Model | MCMP3036BOTB |
|---|---|
| UPC | 840255582803 |
| Product Height (in) | 23.5 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Product Length (in) | 21 |
| Cooling Capacity | 3 Ton |
| Product Width (in) | 17.5 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 59.500000 |
| Refrigerant | R-454b |
| Suction Line Size | 3/4 inch |
| Warranty | 10 Year, 10 Year Parts |
MCMP1836B-F Specifications:
| Model | MCMP1836B-F |
|---|---|
| UPC | 840255582797 |
| Product Height (in) | 17.5 |
| Product Length (in) | 21 |
| Product Width (in) | 0.9 |
| Weight (lbs) | 1.400000 |
