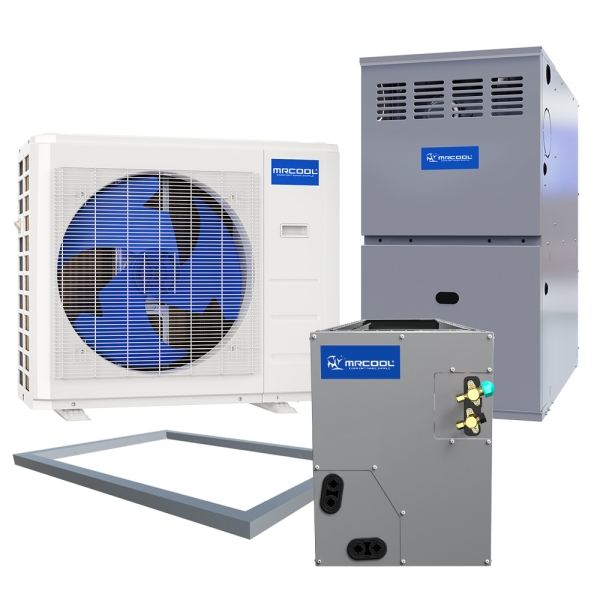

3 Ton 16.3 SEER2 60k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B
Shop All MRCOOL

Accessories
Description / Documents
If you’re in a region that has harsh winters and sweltering summers, the 3 Ton 16.3 SEER2 60k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B is the kind of system that can upgrade your quality of life significantly. With various parts earning UL, CSA, and ETL listing, as well as AHRI and Energy Star certifications, there’s proof that the MrCool System can provide performance that just won’t quit. Ensure your 1500 to 1800 square foot home stays comfortable all year with a 3 Ton MrCool Split System.
Guaranteeing dependable results, the condenser in the 3 Ton 16.3 SEER2 60k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B provides the heating and cooling results your home needs. The Gold Fin corrosion protection lets coastal climates and industrial areas enjoy long-term performance. Servicing tasks are a breeze thanks to additions such as the slide-out blower, modular construction, self-diagnostics, and removable cover on the filter rack. Using variable speed functionality in tandem with flexible installation options, the MrCool Condenser makes staying comfortable effortless.
Pushing cold weather performance to new heights, the furnace in the 3 Ton 16.3 SEER2 60k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B won’t leave you shivering when temperatures plummet. Between the included LP kit and multi-position setup options, it’s easy to ensure the MrCool Furnace fits the needs of your space. Using a resilient cabinet to guarantee consistent operation, the two-stage MrCool Split System is a powerful solution for consistent comfort in frigid conditions.
Filled to the brim with R454B refrigerant, the evaporator coil in the 3 Ton 16.3 SEER2 60k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B offers the versatility to suit your needs in any season. Designed to support upflow, downflow, and left or right horizontal installation options, your home’s needs won’t be difficult to meet. The dense design that sports CoolGuard corrosion resistance attaches to the furnace with a flange adapter, ensuring a tight fit for reliable performance. Thanks to the pre-installed TXV that swaps the direction of the refrigerant to suit both heating and cooling modes, the MrCool Split System guarantees the year-round results you’ve been dreaming of.
The MrCool condenser, furnace, and evaporator coil all include 10 years of warranty on parts, although the condenser and furnace both push the envelope even further. The Hyper Heat condenser extends that 10 years of coverage to the compressor and labor, while the VersaPro furnace tacks on a lifetime warranty for the exchanger. When impressive results are supported by a comprehensive warranty, choosing your next HVAC system should be simple. Acquire the 3 Ton 60k BTU Multiposition Variable Speed MrCool Central Heat Pump & Gas Furnace Split System running on R454B refrigerant today.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | CEN36P36M96060B |
|---|---|
| UPC | 840255599696 |
| AHRI Number | 217666234 |
| Gas Furnace Efficiency | 96+% |
| Bundle Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Bundle Cooling Capacity | 3 Ton |
| Bundle Cooling Efficiency (SEER2) | 16.3 |
| Heat Pump Efficiency (HSPF2) | 9.2 |
| Region Compatibility | Nationwide |
CENTRAL-36-HP-C-230B00-O Specifications:
| Model | CENTRAL-36-HP-C-230B00-O |
|---|---|
| UPC | 840255586528 |
| AHRI Number | 216032532 |
| Product Height (in) | 38.39 |
| Product Length (in) | 38.58 |
| Compressor | Inverter |
| Product Width (in) | 16.34 |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 10.2 |
| Line Set Connection Type | Quick Connect, Flared, or Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 30 amps |
| Weight (lbs) | 253.230000 |
| Primary Heating Capacity | 24,000 - 36,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 17.4 |
| Series | Central Ducted |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, 10 Year Labor |
| Region Compatibility | Nationwide |
MGM96EE060B3NB Specifications:
| Model | MGM96EE060B3NB |
|---|---|
| UPC | 840255582636 |
| Product Height (in) | 33.75 |
| Gas Furnace Efficiency | 96+% |
| Product Length (in) | 24.813 |
| Configuration | Floor Mounted |
| Product Width (in) | 17.5 |
| Air Flow Direction | Horizontal, Vertical |
| Avg Coverage Area | 750 - 900 Sq Ft |
| Blower Motor | High Efficiency |
| Cooling Compatibility (up to) | 3 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | PVC |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 147.500000 |
| Primary Heating Capacity | 40,001 - 45,000 BTU |
| Series | VersaPro |
| System Application Type | Central Split Systems |
| Vent Connection | 2 inches, 3 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
MCMP3036BOTB Specifications:
| Model | MCMP3036BOTB |
|---|---|
| UPC | 840255582803 |
| Product Height (in) | 23.5 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Product Length (in) | 21 |
| Cooling Capacity | 3 Ton |
| Product Width (in) | 17.5 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 59.500000 |
| Refrigerant | R-454b |
| Suction Line Size | 3/4 inch |
| Warranty | 10 Year, 10 Year Parts |
MCMP1836B-F Specifications:
| Model | MCMP1836B-F |
|---|---|
| UPC | 840255582797 |
| Product Height (in) | 17.5 |
| Product Length (in) | 21 |
| Product Width (in) | 0.9 |
| Weight (lbs) | 1.400000 |
