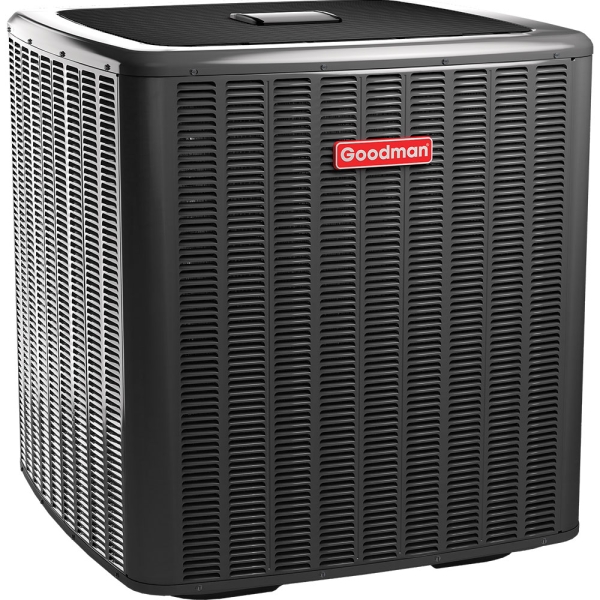

3 Ton 16 SEER 2 Stage Goodman Central Heat Pump Condenser

Item: HA10541
Model: DSZC160361
Condition: New

3 Ton 16 SEER 2 Stage Goodman Central Heat Pump Condenser Zoom

Photo Gallery

The Goodman DSZC16 3 Ton 16 SEER 2-Stage Heat Pump Condenser is an HVAC unit that brings both energy efficiency and long term reliability into your home. The Copeland UltraTech Two-Stage Scroll Compressor ensures you get the best air comfort possible for every energy dollar you spend. Meanwhile, the Lifetime Limited Compressor Warranty and 10-Year Parts Limited Warranty will keep your investment stable for years to come.

Availability: In stock

$2,388.00 To see product price, add this item to your cart. You can always remove it later.
Ingram Financing


Ships Within 1-2 Business Days

Get everything right and save time

Contact an expert now.

Call: 1-800-360-1569

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Product Features

The Goodman DSZC16 3 Ton 16 SEER 2-Stage Heat Pump Condenser is an HVAC unit that brings both energy efficiency and long term reliability into your home. The Copeland UltraTech Two-Stage Scroll Compressor ensures you get the best air comfort possible for every energy dollar you spend. Meanwhile, the Lifetime Limited Compressor Warranty and 10-Year Parts Limited Warranty will keep your investment stable for years to come.
Goodman HA10541

Manufacturer Highlights

The Goodman® brand DSZC Series Heat Pumps offer energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • R-410A chlorine-free refrigerant
  • Two-Stage Copeland® UltraTech™ scroll compressor
  • High-density foam compressor sound blanket
  • ComfortNet™ Communications System compatible
  • Expanded ComfortAlert™ diagnostics built in
  • Set-up capable with two low-voltage wires to outdoor unit
  • Diagnostic indicator lights and storage of six fault codes
  • Color-coded terminal strip for non-communicating set-up
  • SmartShift™ technology to ensure quiet, reliable defrost
  • Factory-installed bi-flow liquid line filter drier
  • Factory-installed suction line accumulator
  • Factory-installed compressor crankcase heater
  • Factory-installed high-capacity muffler
  • Factory-installed coil and ambient temperature sensors
  • High- and low-pressure switches
  • Fully charged for 15' of tubing length
  • Two-speed quiet condenser fan motor
  • Sweat connection service valves with easy access to gauge ports
  • AHRI Certified; ETL Listed

Cabinet Features

  • Wire fan discharge grille
  • Steel louver coil guard
  • Baked-on powder paint finish
  • Rust-resistant coated screws
  • Compact footprint
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Product Specifications

Model DSZC160361
UPC 663051509429
Avg Coverage Area 1,500 - 1,800 Sq Ft
Compressor Two Stage
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) Up to 9.5
Lineset Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 35 amps
Primary Heating Capacity 35,001 - 40,000 BTU
Product Height 38.25
Product Length 35.5
Product Width 35.5
Cooling Efficiency 16 SEER
Suction Line Size 7/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts, Lifetime Compressor, 10 Year Unit Replacement
Weight 255.0000
Region Compatibility Nationwide
