This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

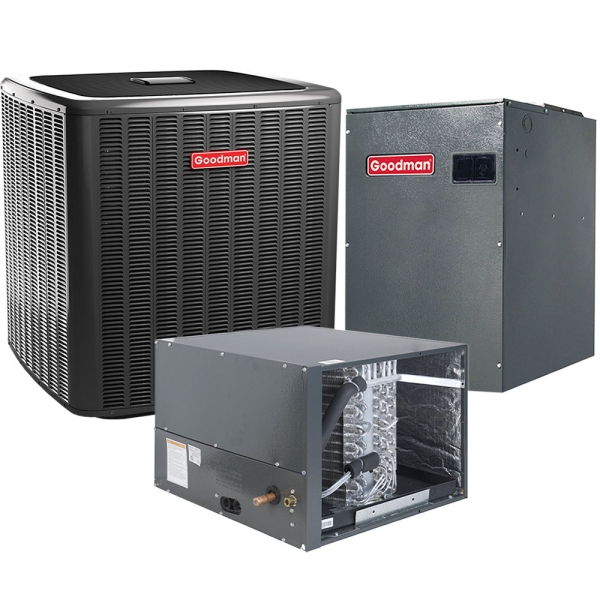

3 Ton 16 SEER 2 Stage Variable Speed Goodman Central Air Conditioner Split System - Horizontal

Item: HA11360
Models: DSXC160361 , MBVC1600AA-1, CHPF3743C6, TX3N4
Condition: New
Goodman keeps you cool even when installation space is limited with this 3 ton, 2-stage variable speed central split system. The strong, quiet DSXC160361 air conditioner is key to this system's 16 SEER. The Goodman CHPF3743C6 cased coil handles horizontal airflow with efficiency, and MBVC1600AA modular blower has a variable-speed ECM blower motor and engine speed that's easy to change. Goodman's TX3N4 thermal expansion valve feeds precise amounts of ozone-friendly R-410A refrigerant to the evaporator coil. Every component is backed by Goodman's excellent warranty.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

1.5 to 3 Ton Goodman Thermostatic Expansion Valve Kit 1.5 to 3 Ton Goodman Thermostatic Expansion Valve Kit Item: HA11902 Model: TX3N4 Qty: 1

Overview

Goodman keeps you cool even when installation space is limited with this 3 ton, 2-stage variable speed central split system. The strong, quiet DSXC160361 air conditioner is key to this system's 16 SEER. The Goodman CHPF3743C6 cased coil handles horizontal airflow with efficiency, and MBVC1600AA modular blower has a variable-speed ECM blower motor and engine speed that's easy to change. Goodman's TX3N4 thermal expansion valve feeds precise amounts of ozone-friendly R-410A refrigerant to the evaporator coil. Every component is backed by Goodman's excellent warranty.

Goodman 3 Ton 16 SEER 2 Stage Central Air Conditioner Condenser - DSXC160361

Goodman HA10534

Manufacturer Highlights

The Goodman® brand DSXC Series Air Conditioners offer energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • R-410A chlorine-free refrigerant
  • Two-Stage Copeland® UltraTech™ scroll compressor
  • High-density foam compressor sound blanket
  • ComfortNet™ Communications System compatible
  • Expanded ComfortAlert™ diagnostics built in
  • Set-up capable with 2 low-voltage wires to outdoor unit
  • Diagnostic indicator lights and storage of 6 fault codes
  • Color-coded terminal strip for non-communicating set-up
  • High- and low-pressure switches - Factory-installed filter drier
  • Coil and ambient temperature sensors
  • Two-speed, quiet condenser fan motor
  • AHRI Certified; ETL Listed

Cabinet Features

  • Wire fan discharge grille
  • Steel louver coil guard
  • Baked-on powder paint finish
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Goodman 3.5 to 4 Ton Variable Speed Modular Blower - MBVC1600AA-1

Goodman HA10944

Manufacturer Highlights

The Goodman® brand MBVC Series Modular Blower offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Variable-speed ECM blower motor
  • Direct drive, multi-speed PSC blower motor
  • ComfortNet™ Communicating System compatible
  • Auto configuration of the airflow and tonnage in communicating mode
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • Fault recall of six most recent faults
  • Provides adjustable low CFM for efficient fan-only operation
  • Improved humidity and comfort control
  • Built-in compatibility with multi-stage heat pump and cooling applications
  • 3 kW - 21 kW electric heat kits
  • Blower section usable as electric heater
  • Horizontal or vertical configuration capabilities
  • 21" depth for easier attic access
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain embossed finish
  • AHRI certified; ETL listed

Goodman 3 to 3.5 Ton Evaporator Coil - CHPF3743C6

Goodman HA10491

Manufacturer Highlights

The Goodman® brand CHPF Coils with Flowraters are made for use with split-system air conditioners and heat pumps. Reliable components and quality manufacturing make these coils a perfect choice for the value minded consumer.

Standard Features

  • Rust-resistant, high-temperature thermoplastic drain pans feature a low water retention design
  • Check flowrater expansion device for heat pump or cooling only applications
  • Field-installed Thermal Expansion Valve Kits are available
  • All aluminum tubing and wave pattern aluminum fin coils

Cased Coil Cabinet Features

  • Foil-face insulation
  • Galvanized leather-grain finish and high-quality post-paint models are available
  • Split-seam front-excellent access

Accessories

  • Field-Installed Expansion Valve Kits (TX3N2 or TX5N2)
  • Field-Installed High-Temperature Drain Pan Kits; maximum temperature rating is 400ºF

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model DSXC160361,CHPF3743C6,MBVC1600AA,TX3N4
UPC 663051525801
AHRI Number 201358249
Bundle Avg Coverage Area 1,500 - 1,800 Sq Ft
Bundle Cooling Capacity 3 Ton
Bundle Cooling Efficiency 16 SEER
EER 12.5
Region Compatibility Nationwide
California Residents see Prop 65 WARNING

DSXC160361 Specifications:

Model DSXC160361
UPC 663051525801
Avg Coverage Area 1,500 - 1,800 Sq Ft
Compressor Two Stage
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 35 amps
Product Height (in) 38.25
Product Length (in) 29
Product Width (in) 29
Cooling Efficiency 16 SEER
Suction Line Size 7/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts, Lifetime Compressor, 10 Year Unit Replacement
Weight (lbs) 202.0000
Region Compatibility Nationwide

MBVC1600AA-1 Specifications:

Model MBVC1600AA-1
UPC 663051528079
Blower Motor Variable Speed
Condenser/Coil Compatibility 3.5 Ton, 4 Ton
Cooling Capacity 3.5 Ton, 4 Ton
Electrical Phase 1-Phase
Max Overcurrent Protection 15 amps
Product Height (in) 30
Product Length (in) 21
Product Width (in) 21
Voltage 240
Warranty 10 Year Parts
Weight (lbs) 80.0000

CHPF3743C6 Specifications:

Model CHPF3743C6
UPC 663051451803
Air Flow Direction Horizontal
Cooling Capacity 3 Ton, 3.5 Ton
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Product Height (in) 21
Product Length (in) 21.125
Product Width (in) 26
Suction Line Size 7/8 inch
Warranty 10 Year Parts
Weight (lbs) 63.0000

TX3N4 Specifications:

Model TX3N4
UPC 681344941480
Product Height (in) 3.7
Product Length (in) 9.7
Product Width (in) 5.8
Warranty 1 Year
Weight (lbs) 2.0000
