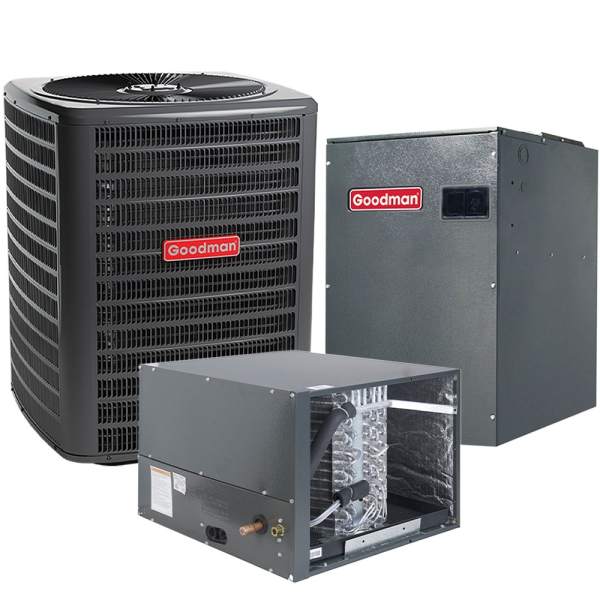

3 Ton 16 SEER2 Stage Variable Speed Goodman Central Heat Pump Split System - Horizontal

Item: HA18319
Models: GSZC160361, CHPF3743C6, MBVC1600AA-1, TX3N4
Condition: New

Availability: Out of stock

As low as: $4,806.00

Price as configured: $4,806.00

Call for availability

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

1.5 to 3 Ton Goodman Thermostatic Expansion Valve Kit 1.5 to 3 Ton Goodman Thermostatic Expansion Valve Kit Item: HA11902 Model: TX3N4 Qty: 1



Goodman 3 to 3.5 Ton Evaporator Coil - CHPF3743C6

Goodman HA10491

Manufacturer Highlights

The Goodman® brand CHPF Coils with Flowraters are made for use with split-system air conditioners and heat pumps. Reliable components and quality manufacturing make these coils a perfect choice for the value minded consumer.

Standard Features

  • Rust-resistant, high-temperature thermoplastic drain pans feature a low water retention design
  • Check flowrater expansion device for heat pump or cooling only applications
  • Field-installed Thermal Expansion Valve Kits are available
  • All aluminum tubing and wave pattern aluminum fin coils

Cased Coil Cabinet Features

  • Foil-face insulation
  • Galvanized leather-grain finish and high-quality post-paint models are available
  • Split-seam front-excellent access


  • Field-Installed Expansion Valve Kits (TX3N2 or TX5N2)
  • Field-Installed High-Temperature Drain Pan Kits; maximum temperature rating is 400ºF

Goodman 3.5 to 4 Ton Variable Speed Modular Blower - MBVC1600AA-1

Goodman HA10944

Manufacturer Highlights

The Goodman® brand MBVC Series Modular Blower offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Variable-speed ECM blower motor
  • Direct drive, multi-speed PSC blower motor
  • ComfortNet™ Communicating System compatible
  • Auto configuration of the airflow and tonnage in communicating mode
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • Fault recall of six most recent faults
  • Provides adjustable low CFM for efficient fan-only operation
  • Improved humidity and comfort control
  • Built-in compatibility with multi-stage heat pump and cooling applications
  • 3 kW - 21 kW electric heat kits
  • Blower section usable as electric heater
  • Horizontal or vertical configuration capabilities
  • 21" depth for easier attic access
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain embossed finish
  • AHRI certified; ETL listed

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.


Model GSZC160361,CHPF3743C6,MBVC1600AA,TX3N4
UPC 663051551381
AHRI Number 202149136
Bundle Avg Coverage Area 1,500 - 1,800 Sq Ft
Bundle Cooling Capacity 3 Ton
Bundle Cooling Efficiency 16 SEER
EER 13
Heat Pump Efficiency (HSPF) 9
Region Compatibility Nationwide
California Residents see Prop 65 WARNING

GSZC160361 Specifications:

Model GSZC160361
UPC 663051551381
Avg Coverage Area 1,500 - 1,800 Sq Ft
Compressor Two Stage
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) Up to 9
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 30 amps
Primary Heating Capacity 35,001 - 40,000 BTU
Product Height (in) 40
Product Length (in) 35.5
Product Width (in) 35.5
Refrigerant R-410a
Cooling Efficiency 16 SEER
Suction Line Size 7/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts, Lifetime Compressor
Weight (lbs) 240.0000
Region Compatibility Nationwide

CHPF3743C6 Specifications:

Model CHPF3743C6
UPC 663051451803
Air Flow Direction Horizontal
Cooling Capacity 3 Ton, 3.5 Ton
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Product Height (in) 21
Product Length (in) 21.125
Product Width (in) 26
Suction Line Size 7/8 inch
Warranty 10 Year Parts
Weight (lbs) 63.0000

MBVC1600AA-1 Specifications:

Model MBVC1600AA-1
UPC 663051528079
Blower Motor Variable Speed
Condenser/Coil Compatibility 3.5 Ton, 4 Ton
Cooling Capacity 3.5 Ton, 4 Ton
Electrical Phase 1-Phase
Max Overcurrent Protection 15 amps
Product Height (in) 30
Product Length (in) 21
Product Width (in) 21
Voltage 240
Warranty 10 Year Parts
Weight (lbs) 80.0000

TX3N4 Specifications:

Model TX3N4
UPC 681344941480
Product Height (in) 3.7
Product Length (in) 9.7
Product Width (in) 5.8
Warranty 1 Year
Weight (lbs) 2.0000
