This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

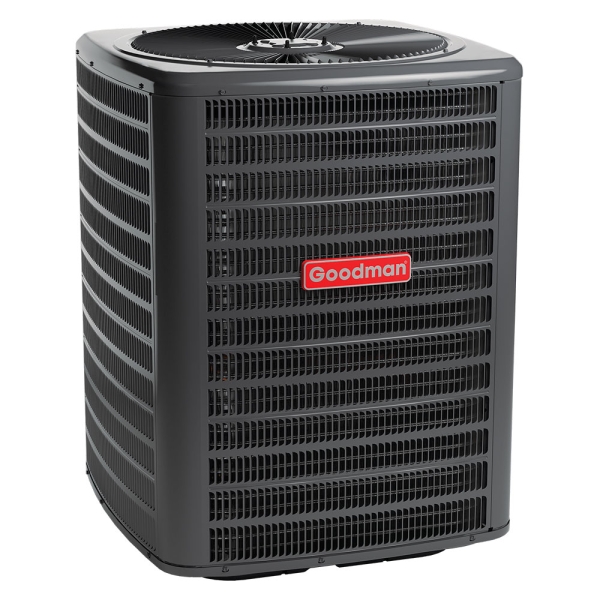

3 Ton 16 SEER Goodman Central Air Conditioner Condenser

Item: HA10870
Model: GSX160361
Condition: New

3 Ton 16 SEER Goodman Central Air Conditioner Condenser Zoom

Photo Gallery

Need a new air conditioner, but worried about longevity? The Goodman GSX160361 3.0 Ton 16 SEER Air Conditioner comes standard with a 10-Year Compressor Limited Warranty and, on top of that, a 10-Year Parts Limited Warranty. It also features a remarkably high efficient scroll compressor, eco-safe refrigerant, superior copper and aluminum coil, louvered sound control top, liquid refrigerant return protection, and 850 RPM condenser fan motor.

Recommended Alternative:

  1. 3 Ton 16 SEER Goodman Central Air Conditioner Condenser

    3 Ton 16 SEER Goodman Central Air Conditioner Condenser

    Was: $1,346.00 See details...

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Summer is 'no sweat' when you install the 3 Ton 16 SEER Goodman Central Air Conditioner Condenser! Temperatures may fluctuate, but this consistently reliable unit is well equipped to handle a heatwave with 5mm SmartCoil condenser technology. The smaller, 5mm copper coil delivers more heat transfer than the old, standard ⅜ inch tubing. This makes the efficiency of the GSX160361 unparalleled. The inline filter-drier is factory-installed and protects against condensation in the lines, indefinitely extending the life of your unit. It also has a high efficiency compressor, partnered with a high performance coil. When coupled with an ECM motor, this unit delivers a rating of up to 16 SEER.

Another benefit of the GSX160361 Air Conditioner is its use of chlorine-free refrigerant. This makes the R-401A coolant eco-friendly as well as family friendly. The Seasonal Energy Efficiency Rating System, or SEER was designed by the U.S. Department of Energy to measure a unit's cooling efficiency. The higher the SEER rating, the more efficient a unit operates and therefore the lower its cost to operate for the consumer.

The GSX160361 has a super quiet three bladed fan coupled with a one of a kind, louvered, sound-control top designed to make it one of the quietest systems in the industry. The cabinet is made of heavy-gauge, galvanized steel that not only protects the components but also resists weather and damage from lawn equipment.

The GSX160361 is ETL-rated and AHRI certified and has both a 10-year parts limited warranty and a 10-year compressor limited warranty when registered within 60 days of authorized installation.

Need a new air conditioner, but worried about longevity? The Goodman GSX160361 3.0 Ton 16 SEER Air Conditioner comes standard with a 10-Year Compressor Limited Warranty and, on top of that, a 10-Year Parts Limited Warranty. It also features a remarkably high efficient scroll compressor, eco-safe refrigerant, superior copper and aluminum coil, louvered sound control top, liquid refrigerant return protection, and 850 RPM condenser fan motor.

Goodman HA10870

Manufacturer Highlights

The Goodman® brand GSX Series Air Conditioner offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Energy-efficient compressor
  • Factory-installed filter drier
  • Copper tube/aluminum fin coil
  • Service valves with sweat connections and easy-access gauge ports
  • Contactor with lug connection
  • Ground lug connection
  • AHRI Certified
  • ETL Listed

Cabinet Features

  • Goodman® brand louvered sound control top design
  • Steel louver coil guard
  • Heavy-gauge galvanized-steel cabinet
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model GSX160361
UPC 663051519916
Avg Coverage Area 1,500 - 1,800 Sq Ft
Compressor Single Stage
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 30 amps
Product Height (in) 39.5
Product Length (in) 29
Product Width (in) 29
Cooling Efficiency 16 SEER
Suction Line Size 7/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts
Weight (lbs) 180.0000
Region Compatibility Nationwide
