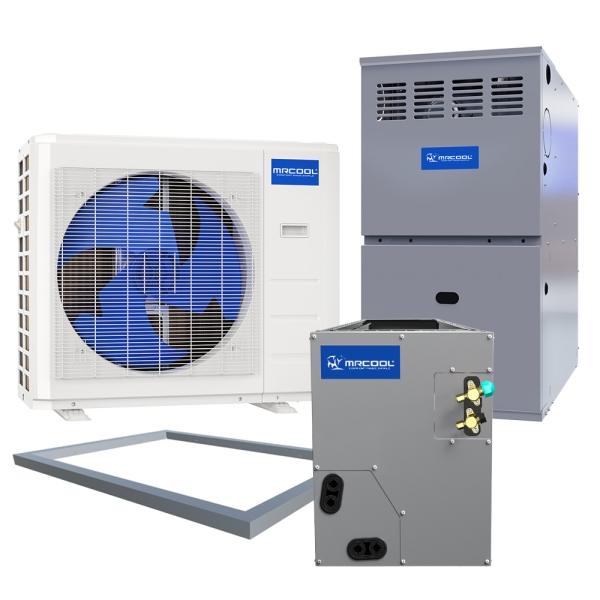

For areas with frigid winter temperatures and sultry summers, options like the 3 Ton 16 SEER2 80k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B support the year-round climate control performance that you crave. CSA, UL, and ETL listings combine with AHRI and Energy Star certifications to showcase the top-tier performance of each individual component of the MrCool System. For your 1500 to 1800 square foot home, bring in the big guns with a 3 Ton MrCool Split System to ensure your preferred temperatures in any season.
Accessories
Description / Documents

For areas with frigid winter temperatures and sultry summers, options like the 3 Ton 16 SEER2 80k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B support the year-round climate control performance that you crave. CSA, UL, and ETL listings combine with AHRI and Energy Star certifications to showcase the top-tier performance of each individual component of the MrCool System. For your 1500 to 1800 square foot home, bring in the big guns with a 3 Ton MrCool Split System to ensure your preferred temperatures in any season.

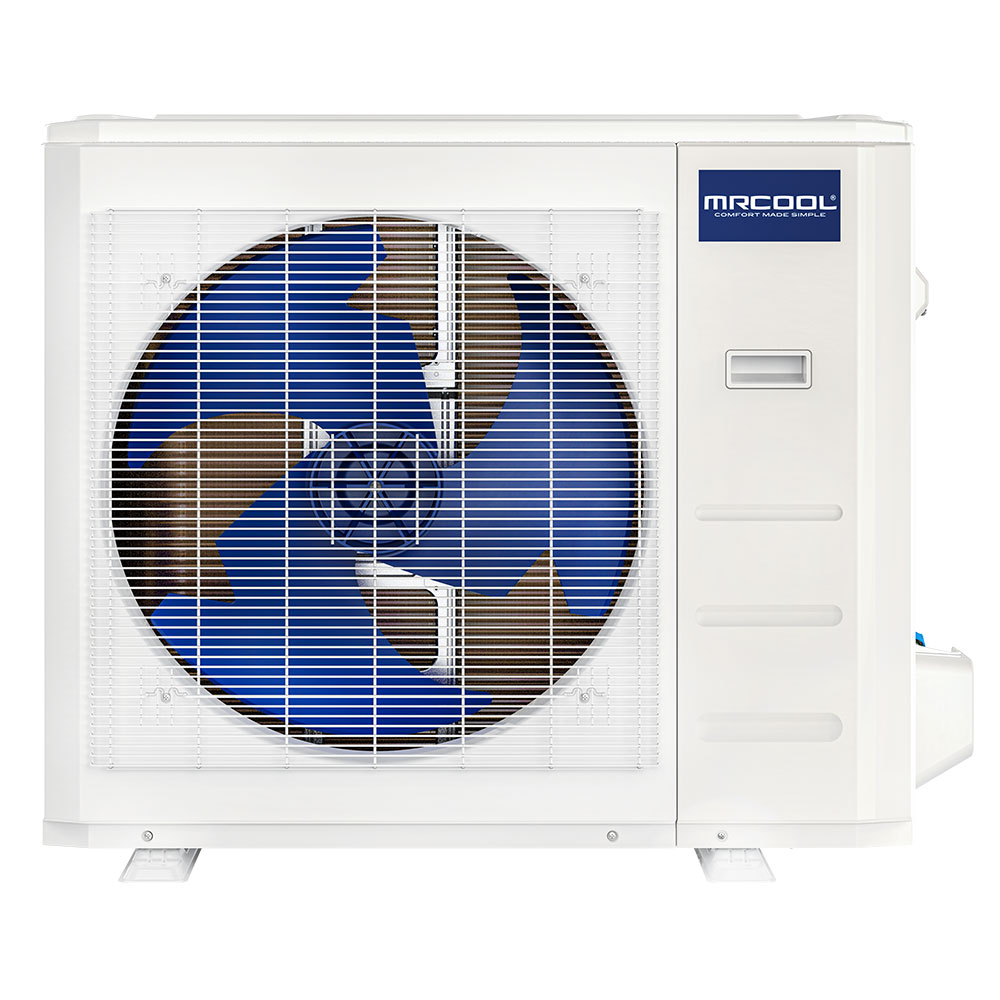

Guaranteeing year-round comfort, the condenser in the 3 Ton 16 SEER2 80k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B crafts your ideal indoor ambiance with ease. Gold Fin corrosion protection grants reliable results in corrosive environments along the coast or near industrial zones. Maintenance efforts are easy with the inclusion of a modular design that includes a slide-out blower, self-diagnostic abilities, and a filter rack with a removable cover. Supporting versatile setup options and variable speed operation, the MrCool Condenser offers efficient and reliable performance year after year.

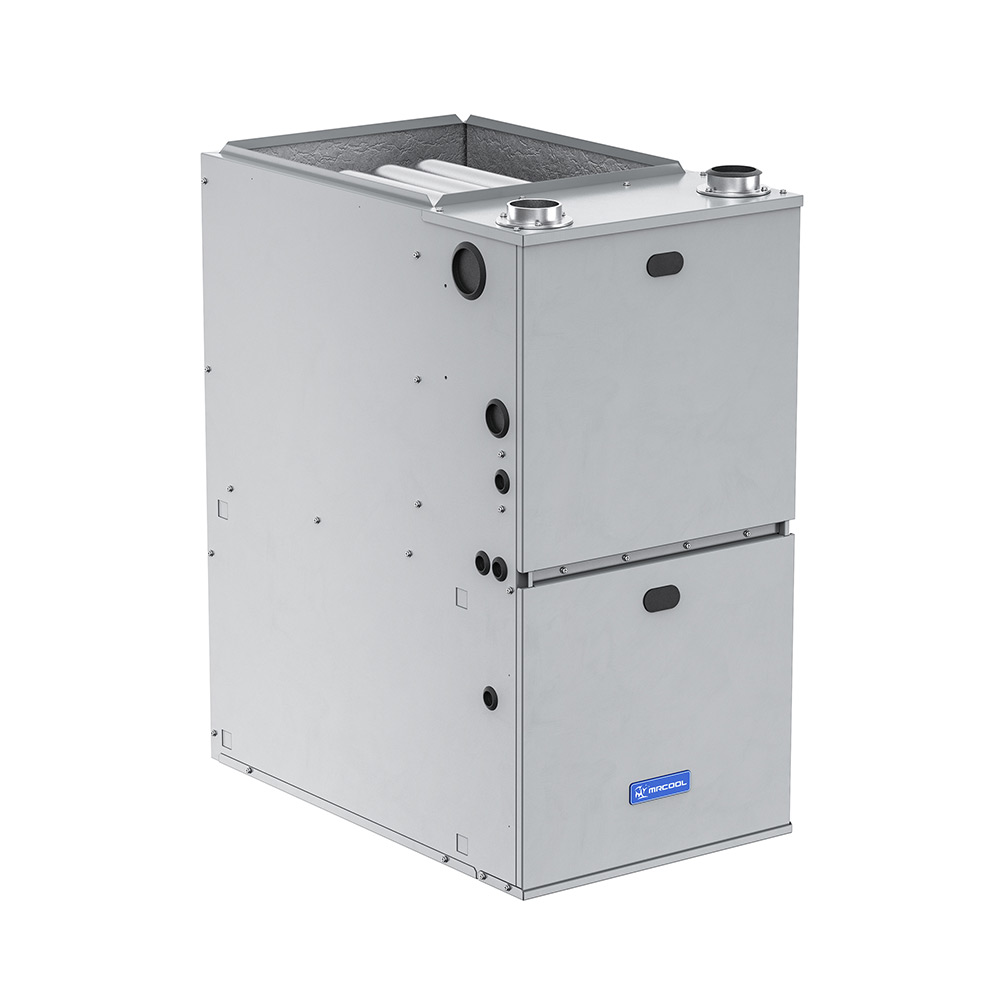

Providing ample heat during winter weather, the furnace in the 3 Ton 16 SEER2 80k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B crafts comfort that won’t leave you wanting in bitter cold conditions. An included LP kit and multi-position installation provide the flexibility to suit the unique needs of your space. Built with a durable cabinet that makes consistent performance easy, the two-stage MrCool Split System goes above and beyond to create the toasty temperatures your family craves.

Precharged with R454B refrigerant, the evaporator coil in the 3 Ton 16 SEER2 80k BTU 96% AFUE Variable Speed MrCool Central Heat Pump & Gas Furnace Split System - Multiposition - R454B supports efficient climate control in any conditions. Able to operate effectively in upflow, downflow, and left or right horizontal applications, fitting your home’s needs is effortless. A compact construction with CoolGuard corrosion resistance uses the flange adapter to lock in place on the furnace, producing a tight seal that locks out pollutants. Pre-installed with a TXV that flips the refrigerant flow, the MrCool Split System is a crucial part of both the heating and cooling processes.

When the MrCool condenser, furnace, and evaporator coil each have their own 10-year warranty on parts, it’s easy to picture the long-term results you want. The Hyper Heat condenser adds onto that peace of mind, extending those 10 years of coverage to the compressor and labor as well, while the VersaPro furnace bolsters the support with a lifetime warranty on the exchanger. What more could you ask for from an HVAC system upgrade? Choose the 3 Ton 80k BTU Multiposition Variable Speed MrCool Central Heat Pump & Gas Furnace Split System using R454B refrigerant today.

Customer Reviews / Q&A
Specifications

System Overview

Model CEN36P36M96080B
UPC 840255599702
AHRI Number 217666235
Gas Furnace Efficiency 96+%
Bundle Avg Coverage Area 1,500 - 1,800 Sq Ft
Bundle Cooling Capacity 3 Ton
Bundle Cooling Efficiency (SEER2) 16
Heat Pump Efficiency (HSPF2) 9.1
Region Compatibility Nationwide

CENTRAL-36-HP-C-230B00-O Specifications:

Model CENTRAL-36-HP-C-230B00-O
UPC 840255586528
AHRI Number 216032532
Product Height (in) 38.39
Product Length (in) 38.58
Compressor Inverter
Product Width (in) 16.34
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF2) 10.2
Line Set Connection Type Quick Connect, Flared, or Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 30 amps
Weight (lbs) 253.230000
Primary Heating Capacity 24,000 - 36,000 BTU
Refrigerant R-454b
Cooling Efficiency (SEER2) 17.4
Series Central Ducted
Suction Line Size 3/4 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts, 10 Year Labor
Region Compatibility Nationwide

MGM96EE080B3NB Specifications:

Model MGM96EE080B3NB
UPC 840255582643
Product Height (in) 33.75
Gas Furnace Efficiency 96+%
Product Length (in) 24.813
Configuration Floor Mounted
Product Width (in) 17.5
Air Flow Direction Horizontal, Vertical
Avg Coverage Area 1,250 - 1,500 Sq Ft
Blower Motor High Efficiency
Cooling Compatibility (up to) 3 Ton
Electrical Phase 1-Phase
Exhaust Pipe PVC
Fuel Source Natural Gas
Gas Valve Single Stage
Max Overcurrent Protection 15 amps
Weight (lbs) 153.000000
Primary Heating Capacity 65,001 - 70,000 BTU
Series VersaPro
System Application Type Central Split Systems
Vent Connection 2 inches, 3 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger

MCMP3036BOTB Specifications:

Model MCMP3036BOTB
UPC 840255582803
Product Height (in) 23.5
Air Flow Direction Downflow, Horizontal, Upflow
Product Length (in) 21
Cooling Capacity 3 Ton
Product Width (in) 17.5
Line Set Connection Type Quick Connect
Liquid Line Size 3/8 inch
Weight (lbs) 59.500000
Refrigerant R-454b
Suction Line Size 3/4 inch
Warranty 10 Year, 10 Year Parts

MCMP1836B-F Specifications:

Model MCMP1836B-F
UPC 840255582797
Product Height (in) 17.5
Product Length (in) 21
Product Width (in) 0.9
Weight (lbs) 1.400000
