3 Ton 16 SEER2 Stage Variable Speed Goodman Central Heat Pump Split System - Horizontal
Shop All GOODMAN
Item:
HA11405
Model:
DSZC160361,CHPF3743C6,MBVC1600AA,TX3N4
Condition:
New

This product has been discontinued.
The manufacturer has discontinued this product permanently. Please see the alternative product below.
Recommended Alternative:
Out of stock
Loading...
Description / Documents

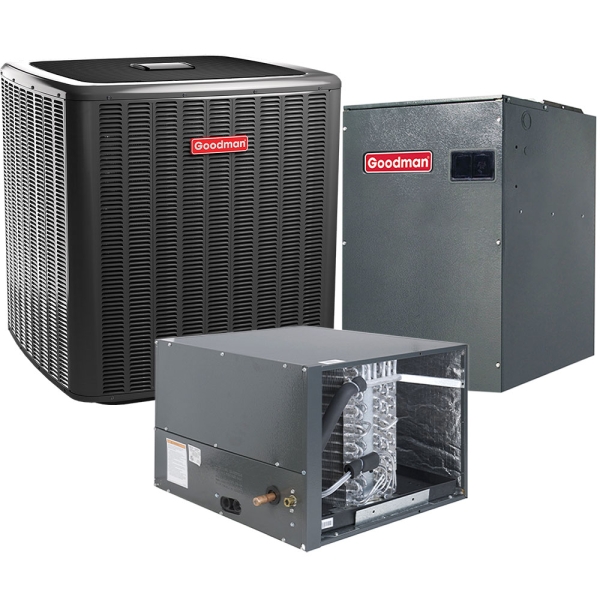

Need a Variable Speed Split System that will stand up to cold mornings and fit into tight spaces? Start with Goodman's powerful DSZC160361 Heat Pump. Pair it with the CHPF3743C6 Cased Evaporator Coil, which delivers outstanding efficiency in a horizontal configuration. Add the MBVC1600AA Modular Blower, a variable-speed ECM blower motor and foil-faced insulation covering the entire blower case. Goodman's TX3N4 Thermal Expansion Valve regulates the flow of environmentally friendly R-410A refrigerant. All units are compatible with Goodman's ComfortNet communicating system, which enables components to self-assess and micro-distribute power usage throughout the system.
Customer Reviews / Q&A
Specifications
System Overview
| Model | DSZC160361,CHPF3743C6,MBVC1600AA,TX3N4 |
|---|---|
| UPC | 663051509429 |
| AHRI Number | 201539238 |
| Bundle Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Bundle Cooling Capacity | 3 Ton |
| Bundle Cooling Efficiency | 16 SEER |
| EER | 12.5 |
| Heat Pump Efficiency (HSPF) | 9.2 |
| Region Compatibility | Nationwide |
MBVC1600AA-1 Specifications:
| Model | MBVC1600AA-1 |
|---|---|
| UPC | 663051528079 |
| Product Height (in) | 30 |
| Blower Motor | Variable Speed |
| Product Length (in) | 21 |
| Condenser/Coil Compatibility | 3.5 Ton, 4 Ton |
| Product Width (in) | 21 |
| Cooling Capacity | 3.5 Ton, 4 Ton |
| Electrical Phase | 1-Phase |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 80.000000 |
| Voltage | 240 |
| Warranty | 10 Year Parts |
TX3N4 Specifications:
| Model | TX3N4 |
|---|---|
| UPC | 681344941480 |
| Product Height (in) | 3.7 |
| Product Length (in) | 9.7 |
| Product Width (in) | 5.8 |
| Weight (lbs) | 2.000000 |
| Warranty | 1 Year |
