This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.
Out of stock
Loading...

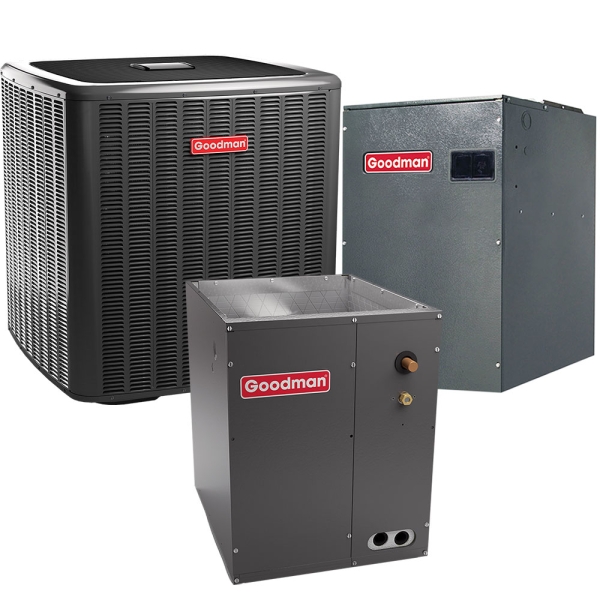

Goodman's outstanding 3 ton DSZC160361 Heat Pump anchors this 16 SEER 2 Stage Variable Speed Central Split System. Optimum performance comes from features like the 2 Stage Copeland Ultratech Scroll Compressor. A high quality foam compressor sound blanket reduces noise. The MBVC1600AA Modular Blower has an ECM variable speed blower motor and foil-faced insulation glued in place, covering the entire blower case for quiet operation. The CAPF3743C6 Cased Evaporator Coil features a high temperature thermoplastic drain pan for low water retention design. This system uses R-410A environmentally friendly refrigerant and TX3N4 Thermal Expansion Valve.
Description / Documents
Goodman's outstanding 3 ton DSZC160361 Heat Pump anchors this 16 SEER 2 Stage Variable Speed Central Split System. Optimum performance comes from features like the 2 Stage Copeland Ultratech Scroll Compressor. A high quality foam compressor sound blanket reduces noise. The MBVC1600AA Modular Blower has an ECM variable speed blower motor and foil-faced insulation glued in place, covering the entire blower case for quiet operation. The CAPF3743C6 Cased Evaporator Coil features a high temperature thermoplastic drain pan for low water retention design. This system uses R-410A environmentally friendly refrigerant and TX3N4 Thermal Expansion Valve.
Customer Reviews / Q&A
Specifications

System Overview

Model DSZC160361,CAPF3743C6,MBVC1600AA,TX3N4
UPC 663051509429
AHRI Number 201690101
Bundle Avg Coverage Area 1,500 - 1,800 Sq Ft
Bundle Cooling Capacity 3 Ton
Bundle Cooling Efficiency 16 SEER
EER 12.5
Heat Pump Efficiency (HSPF) 9.7
Region Compatibility Nationwide

MBVC1600AA-1 Specifications:

Model MBVC1600AA-1
UPC 663051528079
Product Height (in) 30
Blower Motor Variable Speed
Product Length (in) 21
Condenser/Coil Compatibility 3.5 Ton, 4 Ton
Product Width (in) 21
Cooling Capacity 3.5 Ton, 4 Ton
Electrical Phase 1-Phase
Max Overcurrent Protection 15 amps
Weight (lbs) 80.000000
Voltage 240
Warranty 10 Year Parts

TX3N4 Specifications:

Model TX3N4
UPC 681344941480
Product Height (in) 3.7
Product Length (in) 9.7
Product Width (in) 5.8
Weight (lbs) 2.000000
Warranty 1 Year
