In stock

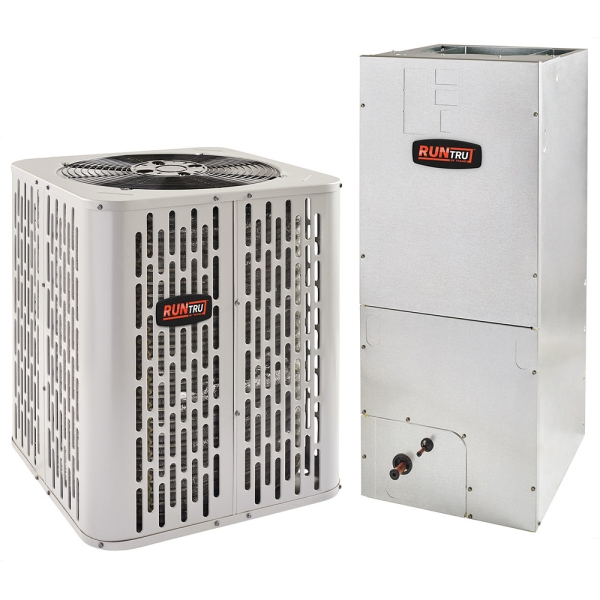

3 Ton 16 SEER2 Variable Speed Trane RunTru Central Heat Pump Split System - Multiposition - R454B
Shop All RUNTRU

Accessories
Description / Documents
Searching for a dependable solution to enhance the climate control in your home when your antiquated HVAC system falls short of providing comfortable temperatures? While the vast array of choices on the market and the recent refrigerant regulation changes might seem overwhelming, the 3 Ton 16 SEER2 Variable Speed Trane RunTru Central Heat Pump Split System - Multiposition simplifies the decision-making process by offering the perfect package for your home. Supported by both UL listing and AHRI certification, this Trane RunTru Heat Pump has passed intensive third-party evaluations to prove the integrity of every operational claim. Fashioned to effectively manage the climate control needs of 1500 to 1800 square foot spaces, this 3 Ton Trane Split System provides the comfort you’ve been looking for.
Built with a variety of carefully selected hardware, the heat pump in the 3 Ton 16 SEER2 Variable Speed Trane RunTru Central Heat Pump Split System - Multiposition is engineered to deliver consistent comfort for the long term. The external housing is crafted from a heavy-gauge galvanized steel that’s coated with a weather-resistant powder paint finish and sports louvered panels on all sides, helping this Trane Heat Pump pass a 1000-hour salt spray test to showcase both remarkable durability and reliable safety of its internal parts. The condenser coil is crafted to minimize airflow resistance while maximizing heat transfer in order to provide superior efficiency. Capable of running efficiently in temperatures as high as 115 degrees Fahrenheit while cooling your space as low as 55 degrees Fahrenheit by default, or all the way down to 20 degrees with an optional kit, this Trane RunTru Split System ensures consistent performance in every season.
Guaranteeing the same exceptional performance as the heat pump, the air handler in the 3 Ton 16 SEER2 Variable Speed Trane RunTru Central Heat Pump Split System - Multiposition enhances the overall efficiency of the system. With an unpainted galvanized metal cabinet lined with captured foil-faced insulation, this Trane RunTru System reduces heat loss during normal operation, promising that energy waste is kept to a minimum. This versatile system offers a range of installation options that accommodate downflow, upflow, and both left and right horizontal orientations, ensuring you’ll have a guaranteed fit for your space’s unique layout. Constructed with a compact form and easy-to-clean interior surfaces, this Trane Split System makes installation and servicing a breeze for any licensed technician, helping you save both time and money at every step of the process.
With an impressive set of benefits at your disposal, what’s stopping you from upgrading today? Invest in this 3 Ton Variable Speed Multiposition Trane RunTru Central Heat Pump Split System now and transform your home into the peaceful haven you’ve always dreamed of.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | A5HP5036A1000A, A5AHV004A1D30A |
|---|---|
| AHRI Number | 214296500 |
| Bundle Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Bundle Cooling Capacity | 3 Ton |
| Bundle Cooling Efficiency (SEER2) | 16 |
| Heat Pump Efficiency (HSPF2) | 8.1 |
| Region Compatibility | Nationwide |

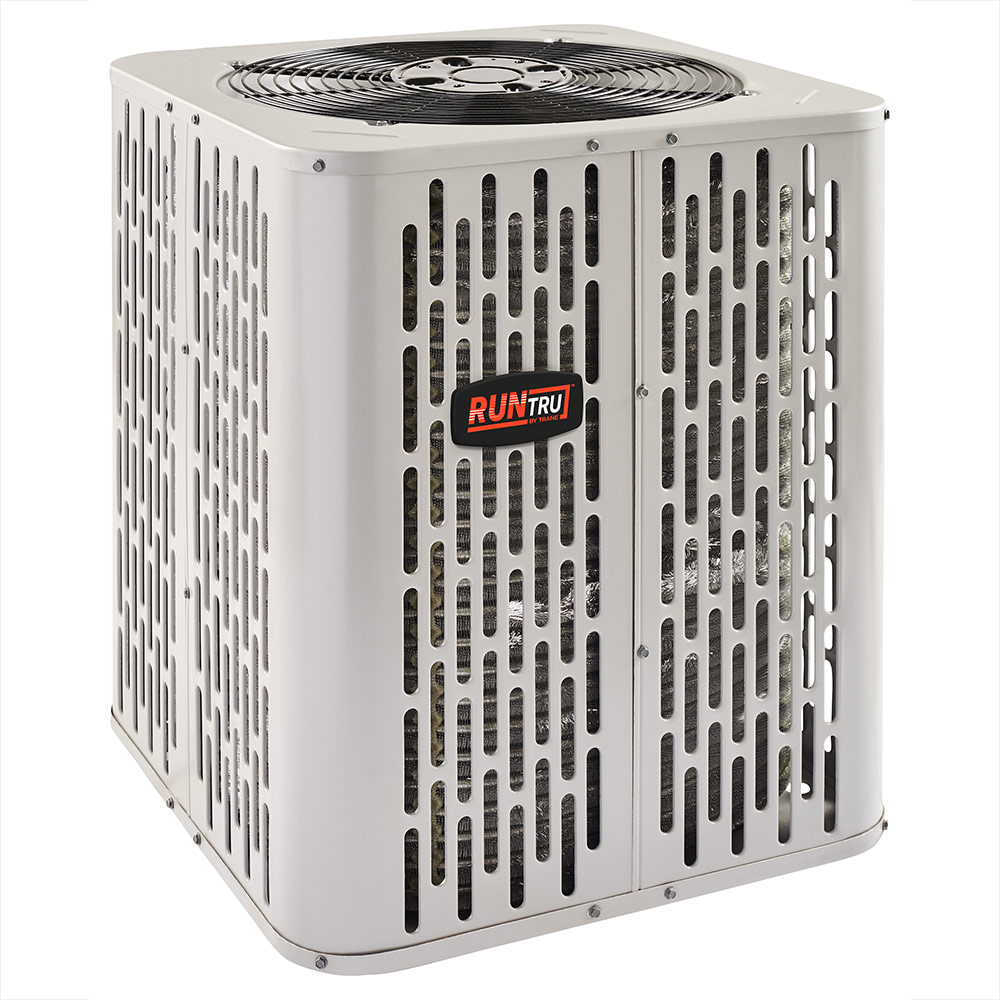

A5HP5036A1000A Specifications:
| Model | A5HP5036A1000A |
|---|---|
| UPC | 612461184122 |
| Product Height (in) | 33.13 |
| Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Product Length (in) | 34.25 |
| Compressor | Single Stage |
| Product Width (in) | 37.25 |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 8.1 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 5/16 inch |
| Max Overcurrent Protection | 30 amps |
| Weight (lbs) | 256.000000 |
| Primary Heating Capacity | 35,001 - 40,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 15.2 |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, 10 Year Compressor |
| Region Compatibility | Nationwide |

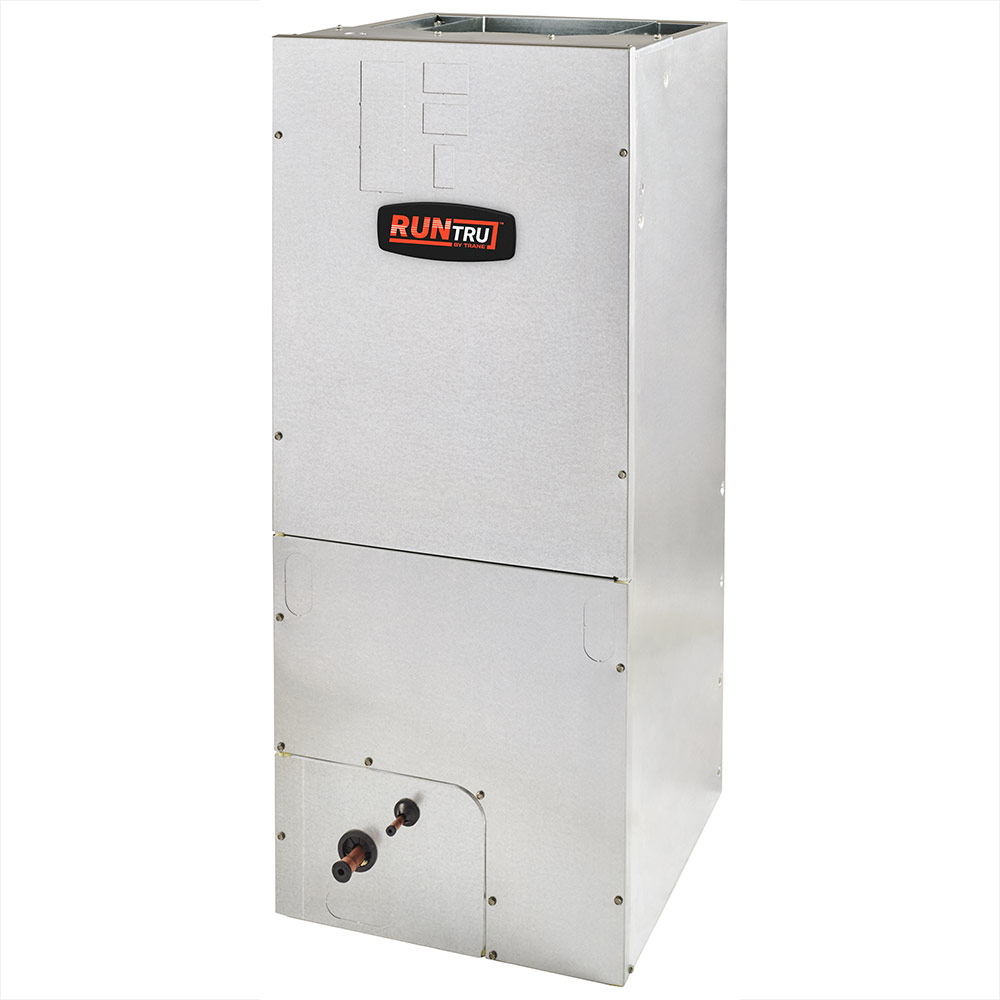

A5AHV004A1D30A Specifications:
| Model | A5AHV004A1D30A |
|---|---|
| UPC | 612461495105 |
| Product Height (in) | 51.45 |
| Configuration | Floor Mounted |
| Product Length (in) | 21.15 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Product Width (in) | 23.5 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 2 Ton, 2.5 Ton, 3 Ton, 3.5 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 20 kW |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 155.000000 |
| Refrigerant | R-454b |
| Suction Line Size | 7/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, 10 Year Evaporator Coil |
