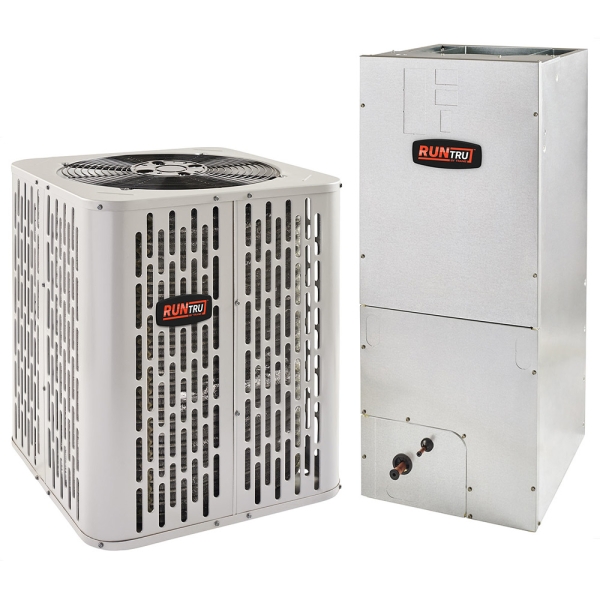

3 Ton 16 SEER2 Variable Speed Trane RunTru Central Heat Pump Split System - Multiposition - R454B
Shop All RUNTRU

Accessories
Description / Documents
When you want a solution that can give you the climate control you desire, ditching your outdated HVAC system should be step number one. While the abundance of available options on the market and the recent refrigerant standard updates might feel like huge obstacles, the 3 Ton 16 SEER2 Variable Speed Trane RunTru Central Heat Pump Split System - Multiposition simplifies the task by providing the ideal solution in one comprehensive package. Backed by both UL listing and AHRI certification, this Trane RunTru Heat Pump has successfully passed thorough third-party testing to prove the accuracy of every functional claim. Able to manage the heating and cooling needs of spaces between 1500 and 1800 square feet, this 3 Ton Trane Split System offers the all-year comfort you’ve been searching for.
Constructed with a variety of thoughtfully selected components, the heat pump in the 3 Ton 16 SEER2 Variable Speed Trane RunTru Central Heat Pump Split System - Multiposition is built to provide lasting comfort over the years. The housing is crafted from heavy-gauge galvanized steel that is coated with a weather-resistant powder paint finish and features louvered panels on all sides. These enhancements allow the Trane Split System to pass a 1000-hour salt spray test, demonstrating exceptional resilience that can effectively protect the internal components from harsh conditions. The condenser coil is specially crafted to reduce airflow resistance while boosting heat transfer efficiency, promoting outstanding energy performance. This Trane RunTru Split System is able to operate in exterior conditions as hot as 115 degrees Fahrenheit, cooling your space down to 55 degrees Fahrenheit by default, and even as low as 20 degrees with an optional kit, ensuring dependable performance regardless of outdoor conditions.

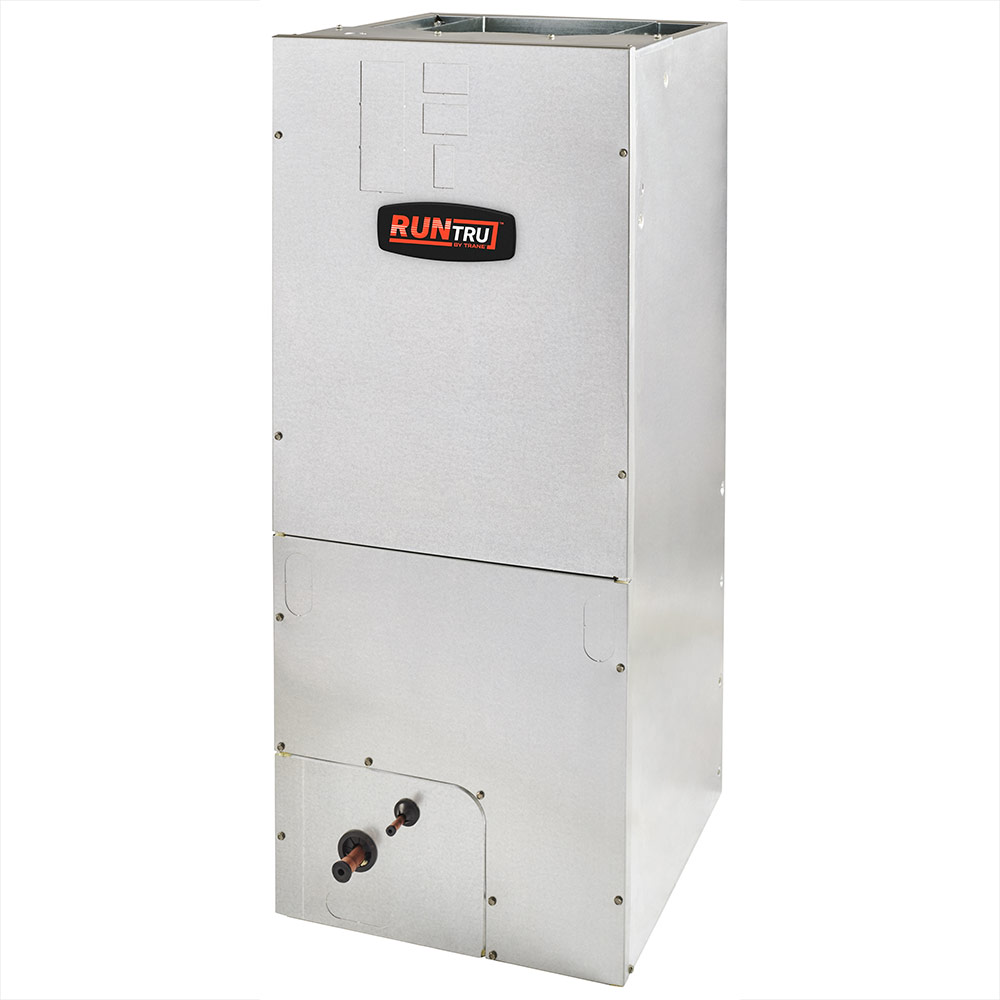

Elevating performance to even greater heights, the air handler in the 3 Ton 16 SEER2 Variable Speed Trane RunTru Central Heat Pump Split System - Multiposition works hard to pull away from the pack. The unpainted galvanized metal cabinet, lined with captured foil-faced insulation, minimizes heat loss during normal operation, letting this Trane RunTru System maintain optimal energy efficiency over time. This versatile system offers multiple installation options, including downflow, upflow, and both left and right horizontal orientations in order to guarantee a means to work with your home's unique demands. With a compact design and wipeable interior surfaces, this Trane Split System makes both installation and servicing quick and easy processes so any licensed technician will save time and money on either task.
With such a remarkable set of features within your reach, what do you gain by putting off your upgrade any longer? Opt for this 3 Ton Variable Speed Multiposition Trane RunTru Central Heat Pump Split System today and turn your home into the serene sanctuary you’ve always dreamed of.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | A5HP5036A1000A, A5AHV006A1D30A |
|---|---|
| AHRI Number | 214296502 |
| Bundle Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Bundle Cooling Capacity | 3 Ton |
| Bundle Cooling Efficiency (SEER2) | 16 |
| Heat Pump Efficiency (HSPF2) | 8.1 |
| Region Compatibility | Nationwide |
A5HP5036A1000A Specifications:
| Model | A5HP5036A1000A |
|---|---|
| UPC | 612461184122 |
| Product Height (in) | 33.13 |
| Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Product Length (in) | 34.25 |
| Compressor | Single Stage |
| Product Width (in) | 37.25 |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 8.1 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 5/16 inch |
| Max Overcurrent Protection | 30 amps |
| Weight (lbs) | 256.000000 |
| Primary Heating Capacity | 35,001 - 40,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 15.2 |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, 10 Year Compressor |
| Region Compatibility | Nationwide |
A5AHV006A1D30A Specifications:
| Model | A5AHV006A1D30A |
|---|---|
| UPC | 612461498458 |
| Product Height (in) | 57.45 |
| Configuration | Floor Mounted |
| Product Length (in) | 21.15 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Product Width (in) | 23.5 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 3 Ton, 3.5 Ton, 4 Ton, 5 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 20 kW |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 185.000000 |
| Refrigerant | R-454b |
| Suction Line Size | 7/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, 10 Year Evaporator Coil |
