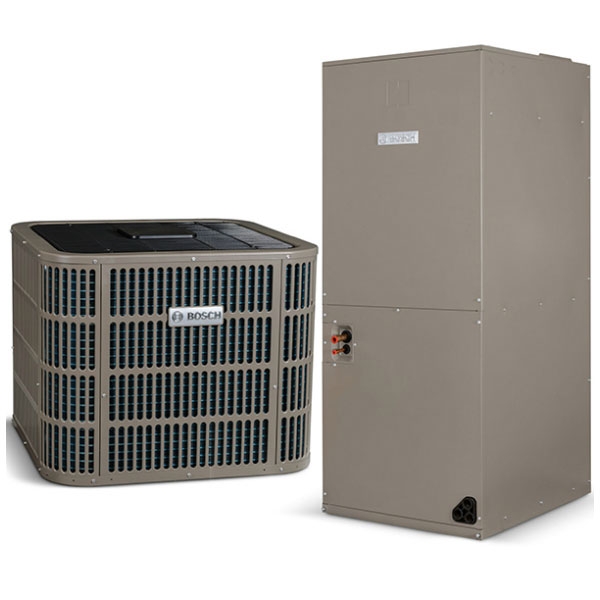

3 Ton 18.5 SEER Inverter Variable Speed Bosch Central Heat Pump Split System - Multiposition

Item: HA17739
Models: BOVA-60HDN1-M18M, BVA-36WN1-M18
Condition: New

3 Ton 18.5 SEER Inverter Variable Speed Bosch Central Heat Pump Split System - Multiposition Zoom

Photo Gallery

Related Videos



Availability: Out of stock

As low as: $5,885.13

Price as configured: $5,885.13

Call for availability

$100 Rebate Offer

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

Overview



Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model BOVA-60HDN1-M18M,BVA-36WN1-M18
AHRI Number 10333757
Bundle Avg Coverage Area 1,500 - 1,800 Sq Ft
Bundle Cooling Capacity 3 Ton
Bundle Cooling Efficiency 18 SEER
EER 12.5
Heat Pump Efficiency (HSPF) 10.5
Region Compatibility Nationwide
California Residents see Prop 65 WARNING

BOVA-60HDN1-M18M Specifications:

Model BOVA-60HDN1-M18M
Avg Coverage Area 2,500 - 3,000 Sq Ft
Compressor Inverter
Cooling Capacity 4 Ton, 5 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 9.5
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 60 amps
Primary Heating Capacity 55,001 - 60,000 BTU
Product Height (in) 33.19
Product Length (in) 29.13
Product Width (in) 29.13
Refrigerant R-410a
Cooling Efficiency 18 SEER
Suction Line Size 7/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts
Weight (lbs) 205.0000
Region Compatibility Nationwide

BVA-36WN1-M18 Specifications:

Model BVA-36WN1-M18
Air Flow Direction Downflow, Horizontal, Upflow
Configuration Floor Mounted
Blower Motor Variable Speed
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 15 kW
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Product Height (in) 46.5
Product Length (in) 20.31
Product Width (in) 19.63
Suction Line Size 3/4 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts
Weight (lbs) 126.0000

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
I have a single level home. About 950 sq. ft. with full basement. Is this unit to big? Thanks alot. Have a blessed day
How much would this system be:
BOVB-36HDN1-M18M
BVA-36-WN1-M15

Thanks!
Hi, how does the air handler hook up to the exsisting furnace and duct work?
