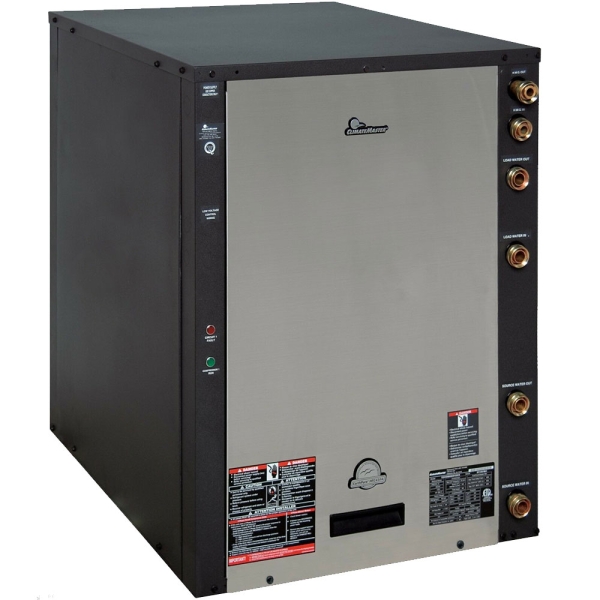

3 Ton 23.1 EER ClimateMaster Coaxial Geothermal Radiant Floor System

Item: HA17339
Model: TCW036AGC0XN0XS
Condition: New

3 Ton 23.1 EER ClimateMaster Coaxial Geothermal Radiant Floor System Zoom

Photo Gallery


Availability: Out of stock


Call for availability

Up To $500 Cash Back

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat


What's Included

Helpful Buying Guides

What customers are saying...




Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.


AHRI Number 8703449
Avg Coverage Area 1,500 - 1,800 Sq Ft
Compressor Single Stage
Cooling Capacity 3 Ton
EER 23.1
Electrical Phase 1-Phase
Heat Pump Efficiency (COP) 4
HWG Connection 1 inch
Load Connection 1 inch
Loop Connection 1 inch
Max Overcurrent Protection 40 amps
Primary Heating Capacity 35,001 - 40,000 BTU
Product Height (in) 33
Product Length (in) 30.6
Product Width (in) 25.4
Series Tranquility
Voltage 240
Warranty 10 Year Parts
Weight (lbs) 348.0000
California Residents see Prop 65 WARNING


Q & A

Do you have questions about this product?

Sort by ASC
I would like to get a download of the climatemaster heat pump item HA17339. The download link one your web page is just the brochure (both links are the same).
What is the amp start and run draw?
