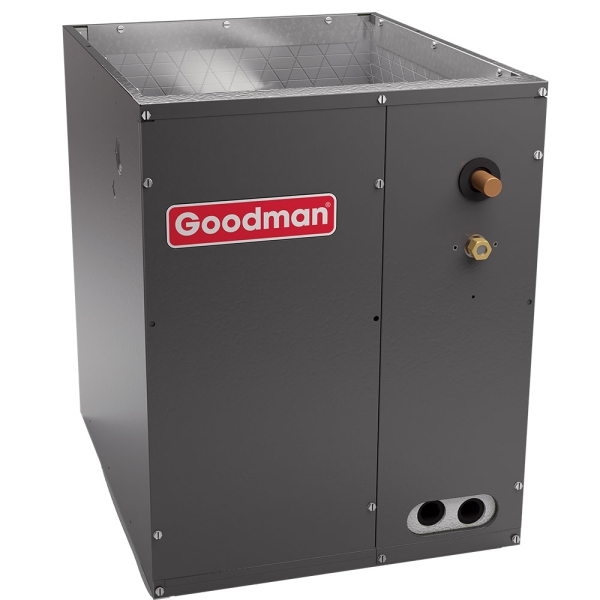

3 Ton Goodman Evaporator Coil - Vertical - 21" Cabinet

Item: HA10470
Model: CAPF3636C6
Condition: New
There are cased coils, and then there's the Goodman CAPF36 3.0 Ton Up/Down Cased Coil with 21 inch Cabinet. This an aluminum coil with both grooved tubing and corrugated fins. It is AHRI certified, ETL listed, painted an attractive Architectural Gray, and includes a rust-resistant thermoplastic drain pan. It is made for use with split system heat pumps and air conditioners.

Availability: Out of stock

$516.00

Call for availability

$100 Rebate Offer

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

There are cased coils, and then there's the Goodman CAPF36 3.0 Ton Up/Down Cased Coil with 21 inch Cabinet. This an aluminum coil with both grooved tubing and corrugated fins. It is AHRI certified, ETL listed, painted an attractive Architectural Gray, and includes a rust-resistant thermoplastic drain pan. It is made for use with split system heat pumps and air conditioners.
Goodman HA10470

Manufacturer Highlights

The Goodman® brand CAPF Coils with Flowraters are made for use with split-system air conditioners and heat pumps. Reliable components and quality manufacturing make these coils a perfect choice for the value minded consumer.

Standard Features

  • Rust-resistant, high-temperature thermoplastic drain pans feature a low water retention design
  • Check flowrater expansion device for heat pump or cooling only applications
  • Field-installed Thermal Expansion Valve Kits are available
  • All aluminum tubing and wave pattern aluminum fin coils

Cased Coil Cabinet Features

  • Foil-face insulation
  • Galvanized leather-grain finish and high-quality post-paint models are available
  • Split-seam front-excellent access

Accessories

  • Field-Installed Expansion Valve Kits (TX3N2 or TX5N2)
  • Field-Installed High-Temperature Drain Pan Kits; maximum temperature rating is 400ºF

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model CAPF3636C6
UPC 663051446915
Air Flow Direction Vertical
Cooling Capacity 3 Ton
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Product Height (in) 22
Product Length (in) 21
Product Width (in) 21
Suction Line Size 3/4 inch
Warranty 10 Year Parts
Weight (lbs) 53.0000
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
MODEL: CAPF3636C6. Does this take R-22 and/or R-410 refrigerant?
I have a GMVC960804CN furnace and need a coil in the 22" H like Goodman CAPF3636C6. Is there anything available with a AHRI? I could probably go down to a 2.5 ton outdoor with a 14+ seer rating. Please shoot me an email to let me know of any options you have
Thanks
Bob McCoy
if i replace an AC evaporator coil system , does the outside condenser unit need to be from the same company?
When will you have this unit or compatible 21" 3 Ton Goodman Evap Upflowed in stock?
What's the design temperature difference?
