3 Ton MrCool Central Ducted Air Handler - Multiposition
Shop All MRCOOL
This product has been discontinued.
Recommended Alternative:
Description / Documents

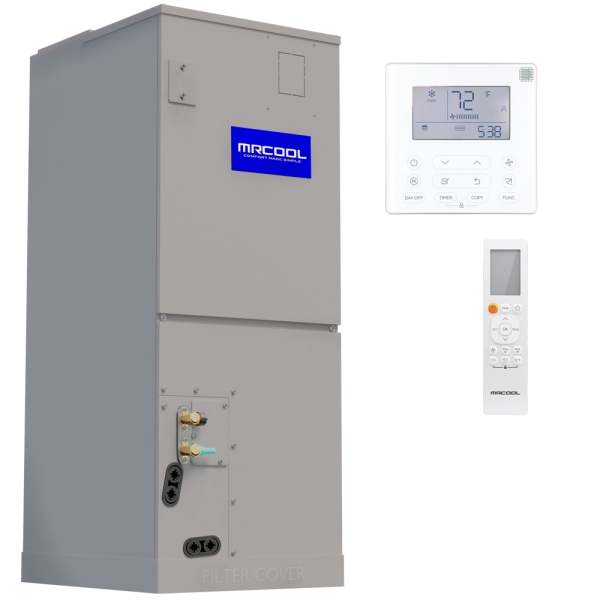

Count on the 3 Ton MrCool Central Ducted Air Handler to provide reliable, consistent heating and cooling. This affordable and effective system can heat or cool a space up to 1,500 square feet without manipulating any already-installed ductwork. The handler proves to be an advanced, yet affordable upgrade solution to replace older, less efficient units.
The superiorly constructed 3 Ton MrCool Central Ducted Air Handler is made with high quality painted galvanized steel. This durability lengthens the lifespan of the handler. The conveniently removable filters will ensure you and your family are exposed to and breathing the cleanest air possible. The unit features self-diagnostics allowing for the identification of any error codes on the handler or on the thermostat before you even call for professional HVAC assistance.
A professional HVAC technician is able to customize the installation of the 3 Ton MrCool Central Ducted Air Handler to suit any need. For this size of handler, you're able to choose the line set that works best for your home. The handler can be installed in either an upflow, downflow, horizontal left, or horizontal right configuration, so there's no need for reconfiguration of preexisting ductwork. If desired, a heat kit can be added to the handler as well. This system is compatible with a MrCool No Vac Quick Connect Line Set.
Along with the handler, also included are a wired thermostat and a wireless remote. The thermostat is a reliable, consistent way to set and adjust the temperature of an area. Or, the wireless remote can be used to adjust the unit's temperature as well. The remote also allows for utilization of the Follow Me feature, in which the unit measures and adjusts the temperature wherever you are in the room by following the remote when you keep the remote with you.
Purchases of the 3 Ton MrCool Central Ducted Air Handler are backed by a 10 year parts and service warranty. The service warranty is conveniently registration-free.
This air handler can be relied on to provide the most preferred and comfortable environment in any home.
Customer Reviews / Q&A
Specifications
System Overview
| Model | CENTRAL-36-HP-MUAH-230-00 |
|---|---|
| UPC | 840255520119 |
| AHRI Number | 208960638 |
| Product Height (in) | 49.02 |
| Configuration | Floor Mounted |
| Product Length (in) | 21.02 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Product Width (in) | 21.02 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 15 kW |
| Line Set Connection Type | Quick Connect, Flared, or Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 154.100000 |
| Refrigerant | R-410a |
| Series | Central Ducted |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
