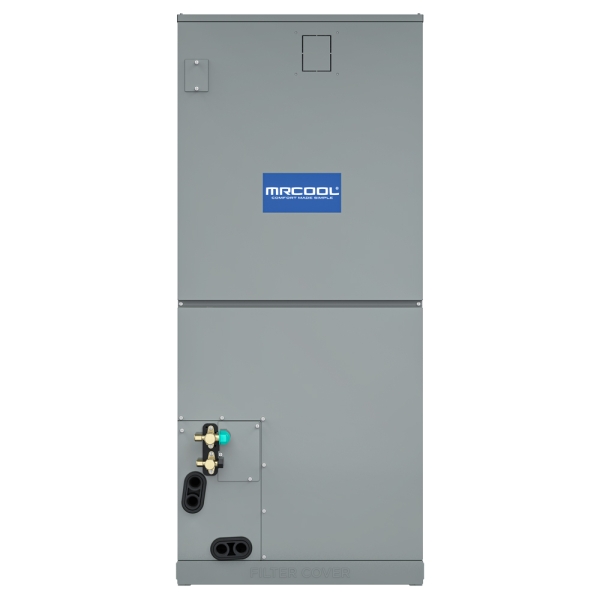

3 Ton MrCool Hyper Heat Central Ducted Air Handler - Multiposition
Shop All MRCOOL
This product has been discontinued.
Recommended Alternative:
Accessories
Description / Documents
Achieving optimal comfort in your home allows you to be more efficient during the day and enjoy a better night's sleep. The 3 Ton MrCool Hyper Heat Central Ducted Air Handler offers an affordable and exceptional solution for creating a comfortable living space while maintaining high efficiency and effectiveness. Boasting an impressive SEER2 of up to 16 and an HSPF2-4 rating of up to 9.5, the air handler can maintain a cozy indoor temperature even when external temperatures plummet to -22 degrees F or soar to 122 degrees F. As a cost-effective and advanced option, this air handler serves as an ideal replacement for older, less efficient systems.
Constructed from high-quality painted galvanized steel, the 3 Ton MrCool Hyper Heat Central Ducted Air Handler boasts durability and a premium finish. This allows you to rely on its dependable heating and cooling performance for years, all while producing noise levels no higher than typical room ambience. Easy maintenance is facilitated by the unit's compact design and sliding blower. The air handler is equipped with removable filters, ensuring clean and fresh air for your family. Its self-diagnostic panel helps identify any error codes, which can also be detected on the provided wired thermostat. This feature enables you to save both time and money on maintenance.
The 3 Ton MrCool Hyper Heat Central Ducted Air Handler is designed for easy installation by an HVAC professional due to its compatibility with the optional MrCool No-Vac Quick Connect Line Set. The Quick Connect ends allow for swift and effortless connection between the handler and the condenser, saving both time and money. Precharged with eco-friendly R410-A refrigerant, the kink-resistant line set eliminates the need for vacuuming or flare welding commonly associated with traditional line sets. The air handler accommodates various installation configurations, including upflow, downflow, horizontal left, and horizontal right, ensuring no adjustments to existing ductwork are necessary. Additionally, an optional heat kit can be purchased separately if required.
Included with the air handler is a wireless remote, which offers the distinctive Follow Me function. This feature enables the unit to monitor and modify the temperature while directing airflow to your specific location within the room, ensuring optimal comfort wherever you go. Additionally, the air handler comes with a wired thermostat, allowing you to set the precise temperature you prefer with confidence.
Having received AHRI certification, the air handler has been verified to deliver on all manufacturer promises through a precise and impartial assessment. In the rare event of any issues, take comfort in the fact that the 3 Ton MrCool Hyper Heat Central Ducted Air Handler comes with a reassuring 10-year warranty covering parts and labor. Additionally, there is no need to register for the included labor warranty.
Customer Reviews / Q&A
Specifications
System Overview
| Model | CENTRAL-36-HP-MUAH230A00 |
|---|---|
| UPC | 840255553124 |
| AHRI Number | 210279122 |
| Product Height (in) | 49.02 |
| Configuration | Floor Mounted |
| Product Length (in) | 21.02 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Product Width (in) | 21.02 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 15 kW |
| Line Set Connection Type | Quick Connect, Flared, or Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 154.100000 |
| Refrigerant | R-410a |
| Series | Central Ducted |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
