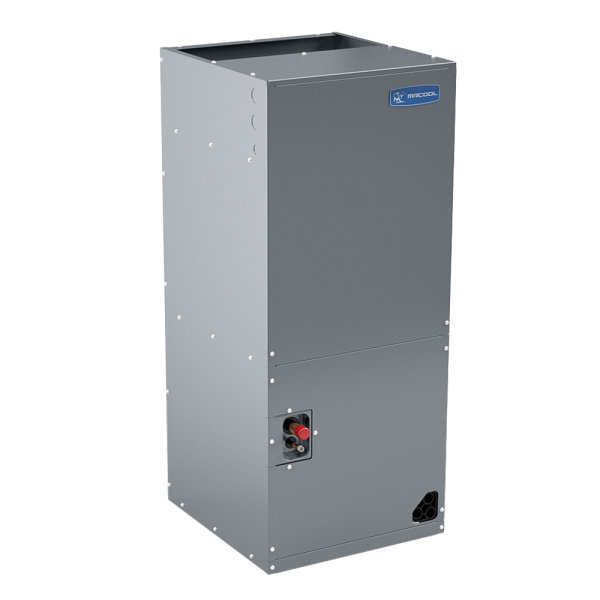

Keeping comfortable temperatures within your home shouldn’t be a difficult job for your HVAC system, though the age of your system and the changing climate in your area may add some unexpected complications. When your heating and cooling can’t keep up with your needs, the 3 Ton MrCool ProDirect Central Air Handler - 3rd Generation - Multiposition - R410A may be just the savior you’re desperate for. Achieving ETL certification and AHRI listing, the MrCool ProDirect Air Handler has undergone thorough third-party testing to verify the accuracy of every performance and safety claim. Don’t leave any inch of your 1500 to 1800 square foot space to the whims of nature with the support of the 3 Ton MrCool Air Handler.
Description / Documents

Keeping comfortable temperatures within your home shouldn’t be a difficult job for your HVAC system, though the age of your system and the changing climate in your area may add some unexpected complications. When your heating and cooling can’t keep up with your needs, the 3 Ton MrCool ProDirect Central Air Handler - 3rd Generation - Multiposition - R410A may be just the savior you’re desperate for. Achieving ETL certification and AHRI listing, the MrCool ProDirect Air Handler has undergone thorough third-party testing to verify the accuracy of every performance and safety claim. Don’t leave any inch of your 1500 to 1800 square foot space to the whims of nature with the support of the 3 Ton MrCool Air Handler.

Able to cater to the layout needs of a wide range of homes, the 3 Ton MrCool ProDirect Central Air Handler - 3rd Generation - Multiposition - R410A can adapt to the unique setup your home requires. Working equally well with heat pump and AC split systems, the MrCool Air Handler can support heating and cooling your space with ease. Able to be set up in upflow, downflow, and left or right horizontal applications, the MrCool Air Handler offers the versatility to suit any number of home HVAC requirements. Outfitted with horizontal and vertical condensate drain pans by default, the MrCool ProDirect Air Handler accommodates your demands without compromising any degree of performance.

Equipped with intelligently chosen components, the 3 Ton MrCool ProDirect Central Air Handler - 3rd Generation - Multiposition - R410A is ready and willing to make a lasting impression on your indoor comfort levels. The all-aluminum tubes and fins use the innate corrosion resistance of the element to allow the MrCool Air Handler to thrive in corrosive areas without succumbing to rust and deterioration. A factory-sealed casing keeps cabinet air leakage rates equal to or less than 2% at 1.0 inch water column, mitigating heat loss for reliable results. Between the easy slide out blower and coil that streamline servicing tasks, the MrCool ProDirect Air Handler goes above and beyond to give you the quality of life you’ve always deserved.

With all the climate control capabilities you need, on top of the peace of mind supplied by a warranty that covers 5 years by default with the ability to extend coverage 5 more years on the parts and compressor after registration, there’s no reason to put off your decision any longer. Opt for the 3 Ton 3rd Generation Multiposition MrCool ProDirect Central Air Handler with ECM motor using R410A refrigerant today to ensure the exact temperatures you and your loved ones are looking for.

Customer Reviews / Q&A
Specifications

System Overview

Model HAH036FEA
UPC 840255585774
Product Height (in) 46.5
Configuration Floor Mounted
Product Length (in) 21.625
Air Flow Direction Downflow, Horizontal, Upflow
Product Width (in) 19.625
Blower Motor Multi Speed
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 20 kW
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 125.000000
Refrigerant R-410a
Series ProDirect
Suction Line Size 3/4 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts
