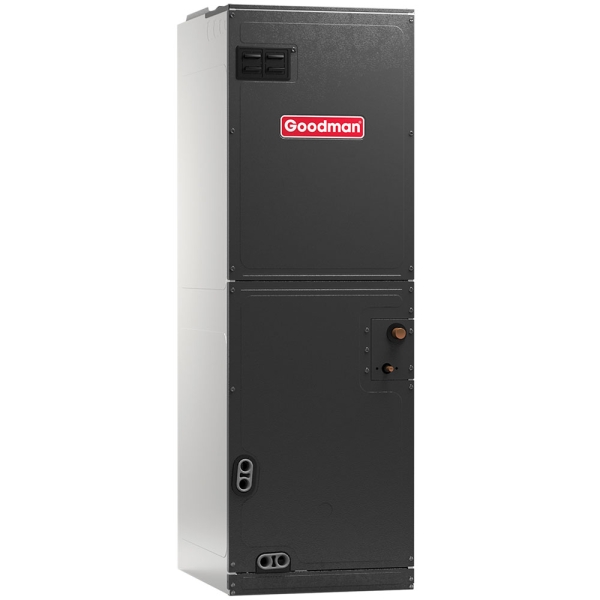

3 Ton Multi Speed Goodman Air Handler - Multiposition - 21" Cabinet

Item: HA10323
Model: ASPT36C14
Condition: New

3 Ton Multi Speed Goodman Air Handler - Multiposition - 21" Cabinet Zoom

Photo Gallery

Do you need a 3.0 ton air handler to match with a Goodman brand condenser or heat pump? Look no further than an R410A compatible multi-position and multi-speed Goodman ASPT36 Smart Frame Air Handler. These high quality air handlers are specifically designed to maximize the operating performance of any matching system. They feature an all-aluminum coil, direct-drive motor, coil-mounting track for easy repositioning, and are factory-sealed for a leakage rate below 2%.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Overview

Do you need a 3.0 ton air handler to match with a Goodman brand condenser or heat pump? Look no further than an R410A compatible multi-position and multi-speed Goodman ASPT36 Smart Frame Air Handler. These high quality air handlers are specifically designed to maximize the operating performance of any matching system. They feature an all-aluminum coil, direct-drive motor, coil-mounting track for easy repositioning, and are factory-sealed for a leakage rate below 2%.
Goodman HA10323

Manufacturer Highlights

The Goodman® brand ASPT Series Air Handler offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Internal factory-installed thermal expansion valves for cooling and heat pump applications
  • Direct drive, multi-speed ECM blower motor
  • All-aluminum evaporator coil
  • Coil mounting track for quick repositioning
  • Optimized for use with R-410A refrigerant
  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  • 3 kW - 25 kW electric heater kits
  • Horizontal or vertical configuration capabilities
  • Rigid SmartFrame™ cabinet
  • 21" depth for easier attic access
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Screw-less sides and back helps to reduce condensation when installed in humid locations
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Glue-less cabinet insulation retention
  • Tool-less filter access
  • AHRI certified; ETL listed

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model ASPT36C14
UPC 663051518957
Air Flow Direction Downflow, Horizontal, Upflow
Configuration Floor Mounted
Blower Motor Multi Speed
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 20 kW
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Product Height (in) 49
Product Length (in) 21
Product Width (in) 21
Suction Line Size 7/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts
Weight (lbs) 118.0000
