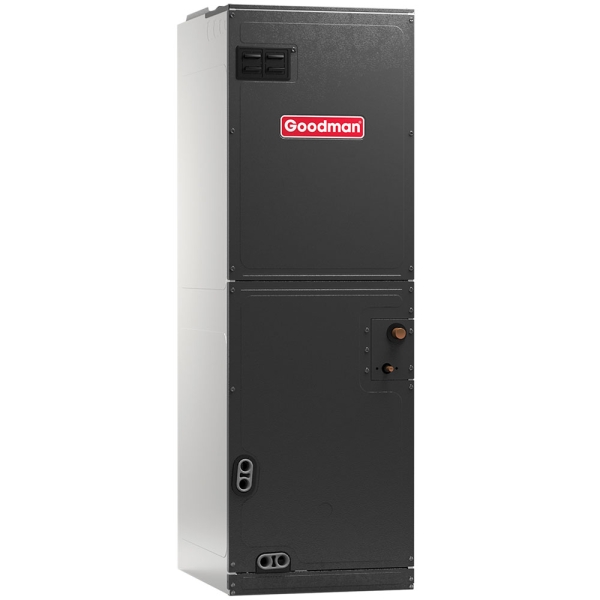

3 Ton Multi Speed Goodman Air Handler - Multiposition - 21" Cabinet
Shop All GOODMAN
Item:
HA10325
Model:
ASPT37C14
Condition:
New

This product has been discontinued.
The manufacturer has discontinued this product permanently. Please see the alternative product below.
Recommended Alternative:
Out of stock
Loading...
Effective conditioned air delivery is just as important as high efficiency performance. Fortunately, the Goodman ASPT37C Multi-Position Multi-Speed ECM-Based Air Handler does its job well while it combines versatility with the potential for higher SEER achievement. The unit features tool-less filter access, foil-faced insulation covering the internal casing, thermoplastic drain pan, SmartFrame cabinet with a leather grain-embossed finish, the option for 3 kW-25 kW electric heater kit, and a 10-Year Parts Limited Warranty.
Accessories
Description / Documents
Effective conditioned air delivery is just as important as high efficiency performance. Fortunately, the Goodman ASPT37C Multi-Position Multi-Speed ECM-Based Air Handler does its job well while it combines versatility with the potential for higher SEER achievement. The unit features tool-less filter access, foil-faced insulation covering the internal casing, thermoplastic drain pan, SmartFrame cabinet with a leather grain-embossed finish, the option for 3 kW-25 kW electric heater kit, and a 10-Year Parts Limited Warranty.
Additional Documents
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | ASPT37C14 |
|---|---|
| UPC | 663051515260 |
| Product Height (in) | 53.438 |
| Configuration | Floor Mounted |
| Product Length (in) | 21 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Product Width (in) | 21 |
| Blower Motor | Multi Speed |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 15 kW |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 144.000000 |
| Suction Line Size | 7/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
