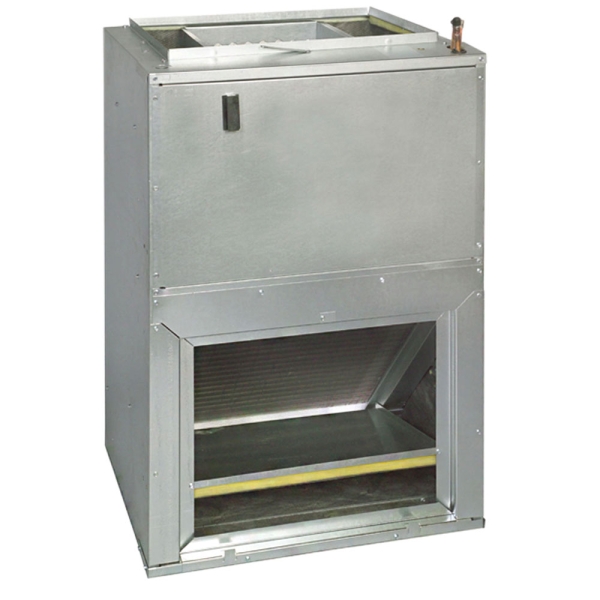

3 Ton Multi Speed Goodman Wall Mounted Air Handler - 10kW Heat Kit

Item: HA10454
Model: AWUF361016
Condition: New

3 Ton Multi Speed Goodman Wall Mounted Air Handler - 10kW Heat Kit Zoom

Photo Gallery

You need an air handling unit, but space is at a premium. Your best solution maybe the Goodman AWUF36 Air Handler designed for stud- or vertically wall-mounted installations. It is built inside an insulated, galvanized-steel cabinet with a thermoplastic drain pan, AHRI Certification, ETL listing, and a direct-drive, multi-speed motor for fine-tuned air volume variation.

Availability: In stock

$457.00 Click for price
Ingram Financing


Ships Within 1-2 Business Days

Get everything right and save time

Contact an expert now.

Call: 1-800-360-1569

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Product Features

You need an air handling unit, but space is at a premium. Your best solution maybe the Goodman AWUF36 Air Handler designed for stud- or vertically wall-mounted installations. It is built inside an insulated, galvanized-steel cabinet with a thermoplastic drain pan, AHRI Certification, ETL listing, and a direct-drive, multi-speed motor for fine-tuned air volume variation.
Goodman HA10454

Manufacturer Highlights

The Goodman AWUF Series Air Handler offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Equipped with a Check Flowrater for cooling-only and heat pump operation
  • Direct-drive, multi-speed motor allows air volume variation for heating/cooling
  • Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
  • Factory-installed pull-type disconnect
  • Aluminum tubing coils on all models
  • AHRI Certified
  • ETL Listed
  • Thermoplastic drain pan with bottom primary and secondary drain connections
  • Built-in filter rack (filter included)
  • Large chassis (2½- and 3-ton units) - front return only
  • Small chassis (1½- and 2-ton units) - front or bottom return
  • Wall-hanging bracket provided

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Product Specifications

Model AWUF361016
UPC 663051525504
Air Flow Direction Upflow
Configuration Wall Mounted
Blower Motor Multi Speed
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 10 kW
Lineset Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 60 amps
Primary Heating Capacity 30,001 - 35,000 BTU
Product Height 36
Product Length 24
Product Width 21
Suction Line Size 3/4 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts
Weight 96.0000
