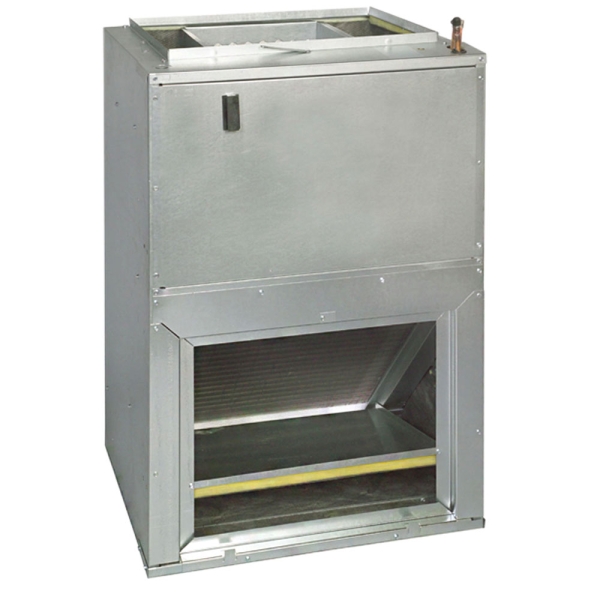

3 Ton Multi Speed Goodman Wall Mounted Air Handler - 5kW Heat Kit

Item: HA10455
Model: AWUF370516
Condition: New

3 Ton Multi Speed Goodman Wall Mounted Air Handler - 5kW Heat Kit Zoom

Photo Gallery

Related Videos

When you invest in a Goodman AWUF Series Wall-Mount Air Handler, there is a lot you're going to like. You'll like the the check flowrater for use with heat pump and cooling applications. You're also going to love the wall bracket that lets you put this air handling unit anywhere it needs to go. Of course, make sure you don't overlook the aluminum coil, the sturdy chassis, the pull-type disconnect, and the direct-drive motor.

Availability: In stock

Was: $623.00 To see product price, add this item to your cart. You can always remove it later.
Ingram Financing


Ships Within 1-2 Business Days

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Product Features

When you invest in a Goodman AWUF Series Wall-Mount Air Handler, there is a lot you're going to like. You'll like the the check flowrater for use with heat pump and cooling applications. You're also going to love the wall bracket that lets you put this air handling unit anywhere it needs to go. Of course, make sure you don't overlook the aluminum coil, the sturdy chassis, the pull-type disconnect, and the direct-drive motor.
Goodman HA10455

Manufacturer Highlights

The Goodman AWUF Series Air Handler offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Equipped with a Check Flowrater for cooling-only and heat pump operation
  • Direct-drive, multi-speed motor allows air volume variation for heating/cooling
  • Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
  • Factory-installed pull-type disconnect
  • Aluminum tubing coils on all models
  • AHRI Certified
  • ETL Listed
  • Thermoplastic drain pan with bottom primary and secondary drain connections
  • Built-in filter rack (filter included)
  • Large chassis (2½- and 3-ton units) - front return only
  • Small chassis (1½- and 2-ton units) - front or bottom return
  • Wall-hanging bracket provided

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Product Specifications

Model AWUF370516
UPC 663051525511
Air Flow Direction Upflow
Configuration Wall Mounted
Blower Motor Multi Speed
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 5 kW
Lineset Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 30 amps
Primary Heating Capacity 15,001 - 20,000 BTU
Product Height 36
Product Length 24
Product Width 21
Suction Line Size 3/4 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts
Weight 96.0000
