3 Ton Variable Speed Goodman Air Handler - Multiposition - 21" Cabinet

Item: HA10409
Model: AVPTC36C14
Condition: New

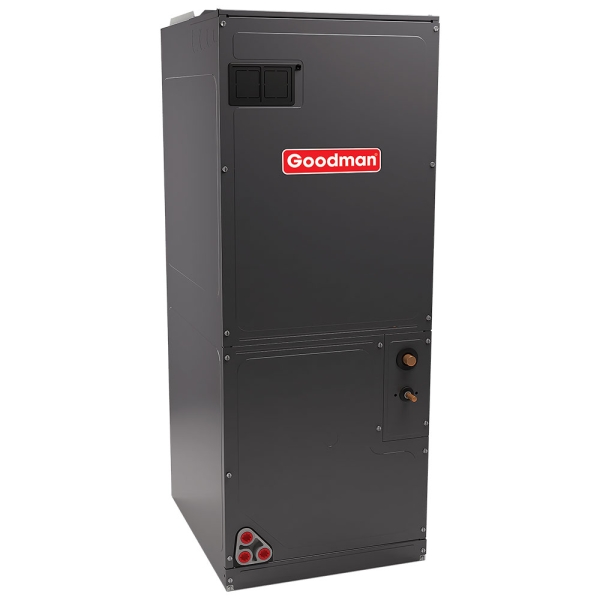

3 Ton Variable Speed Goodman Air Handler - Multiposition - 21" Cabinet Zoom

Photo Gallery

The Goodman AVPTC36 series of multi-positional, variable speed air handling units are a solid entry into Goodman's family of air handlers. These units come equipped with 12 field-selectable airflow settings, secondary drain connections, AHRI certification, and ETL listing. The variable-speed ECM blower motor can provide constant CFM over a wide range of static pressure conditions independent of the interior ductwork. It even has auto configuration of the airflow and tonnage while in communicating mode.

Get everything right and save time

Contact an expert now.

Call: 1-800-360-1569

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Product Features

The Goodman AVPTC36 series of multi-positional, variable speed air handling units are a solid entry into Goodman's family of air handlers. These units come equipped with 12 field-selectable airflow settings, secondary drain connections, AHRI certification, and ETL listing. The variable-speed ECM blower motor can provide constant CFM over a wide range of static pressure conditions independent of the interior ductwork. It even has auto configuration of the airflow and tonnage while in communicating mode.
Goodman HA10409

Manufacturer Highlights

The Goodman brand AVPTC Series Air Handler offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Compatible with the ComfortNet™ Communicating System family of products
  • Maximum four low-voltage wires required for operation in communicating mode
  • Auto configuration of the airflow and tonnage in communicating mode
  • In non-communicating mode, up to 12 field-selectable airflow settings can be adjusted to optimize the system's CFM for each individual mode of operation
  • R-410A refrigerant-compatible
  • Factory-installed thermal expansion valves for cooling and heat pump applications
  • Variable-speed ECM blower motor
  • All-aluminum evaporator coil
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system; provides low CFM for efficient fan-only operation
  • CFM indicator
  • Improved humidity control and comfort
  • Compatible with heat pumps and variable capacity cooling applications
  • Built-in coil has horizontal, vertical, and downflow drain pans with secondary drain connections
  • AHRI Certified; ETL Listed


Cabinet Features

  • Fully insulated, painted steel cabinet with attractive Architectural Gray finish
  • Compact, versatile upflow, downflow, or horizontal multi-position installations
  • Low-voltage cabinet connections; control circuit is arranged to permit staging
  • Power supply on top; low-voltage entry on top or side
  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  • Foil-faced insulation is glued in place and covers the entire blower case to reduce operating sound and cabinet condensation

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Product Specifications

Model AVPTC36C14
UPC 663051485617
Air Flow Direction Downflow, Horizontal, Upflow
Configuration Floor Mounted
Blower Motor Variable Speed
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 20 kW
Lineset Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Product Height 49
Product Length 21
Product Width 21
Suction Line Size 7/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts
Weight 118.0000

Reviews

Customer Reviews

Q & A

Q&A: Ask Questions, Get Answers

Do you have questions about this product?

Hi

I have had this unit for about 4 or 5 years now and worked perfectly, last year there was a big puddle of water under the unit and I asked the vendor that installed it to come look at it, they changed the interior trough, and reconfigured some drain piping and maybe adjusted fan and it was late in the AC season here so never really got a chance to test it, now this year we fired it up 2 days ago in 32 deg weather, 42 with humidex and everything fine for two days now today another puddle of water. I am frustrated that everything worked fine for so long and now my vendor cannot solve the problem- can you indicate what are the likely culprits to the problem?
