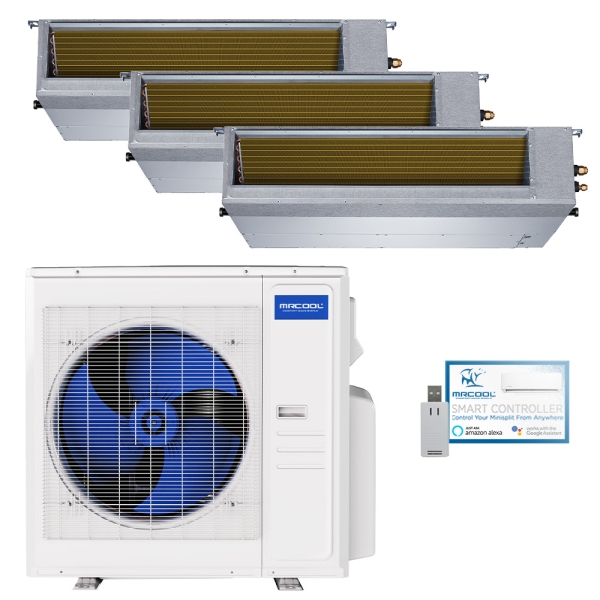

30k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 3 Zone - 9k + 9k + 12k - R454B
MRCOOL

Accessories
Description / Documents
Keeping access to indoor comfort in every room of your home or small commercial space shouldn’t be a struggle for your HVAC setup. If your central system falls shy of your needs in three rooms, or even if that failure is due to preferences not needs, the 30k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 3 Zone - 9k + 9k + 12k - R454B is the perfect solution. Between the backing of ETL listing and Energy Star and AHRI certifications, the MrCool Olympus Heat Pump validates each efficiency, functional, and safety claim by undergoing intensive evaluations from independent agencies. Provide the exact temperatures you want in the rooms that struggle the most with a 30k BTU MrCool Split System.
Making the most of your indoor space in any season, the condenser in the 30k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 3 Zone - 9k + 9k + 12k - R454B keeps each zone supplied with the climate control performance you want. The addition of inverter technology offers the MrCool Condenser the ability to minimize fluctuations from your set-point, keeping efficiency and comfort front and center. R454B refrigerant is an eco-conscious blend that leaves the MrCool Heat Pump with zero ozone depletion potential and a decreased global warming potential from hardware running on older refrigerants. By supporting homes in climates with triple-digit heat and below freezing cold, the MrCool Olympus Split System can support the unique needs of your home with ease.
Guaranteeing the year-round temperatures you want in each unique zone, the three ceiling recessed air handlers in the 30k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 3 Zone - 9k + 9k + 12k - R454B maintains a consistent indoor climate with ease in residential and light commercial properties. Nestled between the joists in your ceiling, the 9k and 12k BTU MrCool Ceiling Recessed Air Handlers are easy to tuck out of sight so your aesthetic stays pristine. With each individual unit able to be adjusted and monitored via the included remote and wall-mounted controller, you can relax knowing the MrCool Olympus Split System provides the year-round climate control performance you’ve been dreaming of.
Ensuring the year-round comfort you crave is one thing, but the support of warranty coverage that encompasses 7 years on the compressor, 5 years on parts, and lets you lengthen the compressor coverage to a limited lifetime by enrolling in the MrCool Care Program pushes your benefits to new heights. Pick up a 30k BTU 3 Zone MrCool Olympus In-Duct Heat Pump Split System with one 12k BTU and two 9k BTU Ceiling Recessed Air Handlers using R454B refrigerant today and feel the impact each imparts on its respective room instantly.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | M336HP23RD01C |
|---|---|
| AHRI Number | 217291698 |
| Bundle Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Bundle Cooling Capacity | 2.5 Ton |
| Bundle Cooling Efficiency (SEER2) | 24 |
| Heat Pump Efficiency (HSPF2) | 9.5 |
| Series | Olympus |
| Region Compatibility | Nationwide |
MULTI5-36HP230C-O Specifications:
| Model | MULTI5-36HP230C-O |
|---|---|
| UPC | 840255587808 |
| AHRI Number | 217291699 |
| Product Height (in) | 31.9 |
| Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Product Length (in) | 16.1 |
| Compressor | Inverter |
| Product Width (in) | 37.2 |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 9.5 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 35 amps |
| Weight (lbs) | 168.900000 |
| Primary Heating Capacity | 35,001 - 40,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 24 |
| Series | Olympus ES |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
DUCT-09HP-230B-O Specifications:
| Model | DUCT-09HP-230B-O |
|---|---|
| UPC | 840255587662 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DUCT-09HP-230B-O Specifications:
| Model | DUCT-09HP-230B-O |
|---|---|
| UPC | 840255587662 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DUCT-12HP-230B-O Specifications:
| Model | DUCT-12HP-230B-O |
|---|---|
| UPC | 840255587679 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
