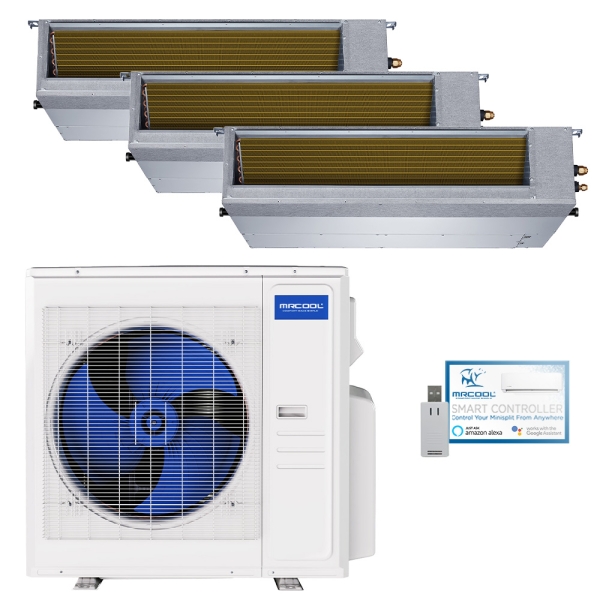

33k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 3 Zone - 9k + 12k + 12k - R454B
MRCOOL

Accessories
Description / Documents
Staying comfortable in ever-shifting climate conditions is the responsibility of your central HVAC system. Whether some rooms have unique considerations to accommodate, or if your space benefits more from individualized results, the 33k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 3 Zone - 9k + 12k + 12k - R454B is the right solution for year-round temperature regulation. Earning ETL listing, as well as Energy Star and AHRI certifications, the MrCool Olympus Heat Pump proves every efficiency, performance, and safety claim by undergoing intensive inspections from independent agencies. Make the most of every inch of your living space with the addition of a 33k BTU MrCool Split System.
Supplying support to each connected indoor air handler, the condenser in the 33k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 3 Zone - 9k + 12k + 12k - R454B offers the climate control prowess your living space needs. Using inverter technology to minimize the distance the temperature can drift from your chosen set-point, the MrCool Condenser optimizes efficiency and comfort. R454B refrigerant is an eco-friendly option that ensures the MrCool Heat Pump maintains zero ozone depletion potential and a lower global warming potential than older refrigerant options. For below freezing winters and triple digit summers, there’s no reason to suffer when the MrCool Olympus Split System can provide the relaxing temperatures you crave in any weather.
Tailoring your climate control results in up to three unique areas, the three ceiling recessed air handlers in the 33k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 3 Zone - 9k + 12k + 12k - R454B are a great option for most residential and light commercial spaces. Thanks to a design that sits perfectly flush against the ceiling, the 9k and 12k BTU MrCool Ceiling Recessed Air Handlers offer the perfect blend of aesthetic and ambiance to any room. Between the remote control and wall-mounted controller options for controlling the system, the MrCool Olympus Split System ensures the exact indoor conditions you want all year long.
Enjoying comfortable temperatures that are supported by a warranty that includes 7-year compressor coverage, 5-year parts coverage, and the option to extend the compressor coverage to a limited lifetime with enrollment in the MrCool Care Program has never been easier. Acquire a 33k BTU 3 Zone MrCool Olympus In-Duct Heat Pump Split System with one 9k BTU and two 12k BTU Ceiling Recessed Air Handlers running on R454B refrigerant today and guarantee the exact indoor temperatures you crave in every season.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | M336HP23RD04C |
|---|---|
| AHRI Number | 217291698 |
| Bundle Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Bundle Cooling Capacity | 2.5 Ton |
| Bundle Cooling Efficiency (SEER2) | 24 |
| Heat Pump Efficiency (HSPF2) | 9.5 |
| Series | Olympus |
| Region Compatibility | Nationwide |
MULTI5-36HP230C-O Specifications:
| Model | MULTI5-36HP230C-O |
|---|---|
| UPC | 840255587808 |
| AHRI Number | 217291699 |
| Product Height (in) | 31.9 |
| Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Product Length (in) | 16.1 |
| Compressor | Inverter |
| Product Width (in) | 37.2 |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 9.5 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 35 amps |
| Weight (lbs) | 168.900000 |
| Primary Heating Capacity | 35,001 - 40,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 24 |
| Series | Olympus ES |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
DUCT-09HP-230B-O Specifications:
| Model | DUCT-09HP-230B-O |
|---|---|
| UPC | 840255587662 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DUCT-12HP-230B-O Specifications:
| Model | DUCT-12HP-230B-O |
|---|---|
| UPC | 840255587679 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DUCT-12HP-230B-O Specifications:
| Model | DUCT-12HP-230B-O |
|---|---|
| UPC | 840255587679 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
