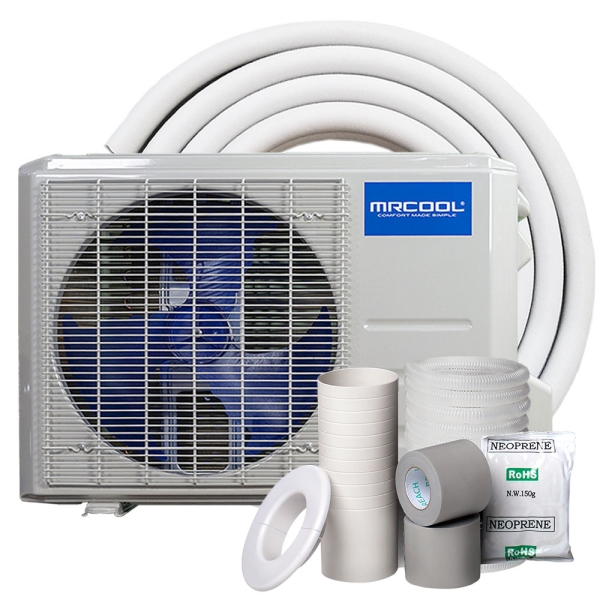

36k BTU 16 SEER MrCool DIY Ductless Heat Pump Condenser - 3rd Generation - with 25 ft Line Set
Shop All MRCOOL
Description / Documents
Are you looking for a ductless mini split that is so simple that you can install it yourself without specialized tools or training? Along with a DIY air handler and pre-charged quick connect line set, the 36k BTU MrCool DIY 3rd Gen Heat Pump Condenser might be just what you've been looking for. This outdoor unit can be installed in only a few short hours and no odd tools, training, or equipment is needed.
How is that possible? MrCool's secret is the pre-charged Quick Connect DIY Line Set (25 ft included in the box). This innovative technology from MrCool is a vacuum-free option that uses the environmentally friendly refrigerant R-410A. An alternative to Freon, R-410A is chlorine free and isn't damaging to the ozone layer. Pick the green option with MrCool!
This 36k BTU MrCool DIY 3rd Gen Heat Pump Condenser has a heating and cooling capacity up to 32k BTUs, keeping your home comfortable year-round. You have options for how to install this compact unit. It can be anchored to the ground or on a concrete pad or attached to a wall with a bracket. This particular MrCool DIY 3rd Gen mini split condenser is 37.21 inches wide, 31.9 inches tall, and 16.53 inches deep, while the mounting dimensions are 26.5 inches wide by 15.87 inches deep.
Looking for a quiet option for your home HVAC? You can expect less operating noise from a 36k BTU MrCool DIY 3rd Gen Heat Pump Condenser than comparable units. Plus, this product includes sound dampening insulation pads for extra quiet. That lets you keep interruptions to your daily life comfortably at bay.
Worried about tough winter weather? The 36k BTU MrCool DIY 3rd Gen Heat Pump Condenser is AHRI rated to 17 degrees. If you're more concerned about the life of your HVAC condenser, this unit uses a Gold Fin coating which is built to resist corrosion and high levels of salt in the air - a smart choice option for those who live on the coast.
Protect your MrCool heat pump condenser with the unit's leak detection feature. The 36k BTU MrCool DIY 3rd Gen Heat Pump Condenser has the ability to detect when it is low on refrigerant and will alert you with an alarm so you can prevent damage to the compressor. With leak detection, you can trust that your HVAC is running smoothly and efficiently and prevent the need for repairs or replacement.
With MrCool, you can control your heat and air wirelessly, with the included remote, from an app on your Apple or Android smartphone, or through your smart speaker, such as Google Home or Alexa. You also don't have to worry about restarting your HVAC unit if you experience a power outage. This heat pump condenser has the capability to auto restart, so when the lights come back on your HVAC will automatically start running again.
With all of these features and more, the 36k BTU MrCool DIY 3rd Gen Heat Pump Condenser is a great option for the handy homeowner, a busy couple, or an environmentally conscious family.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | DIY-36-HP-C-230B |
|---|---|
| UPC | 810512033454 |
| Product Height (in) | 31.89 |
| Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Product Length (in) | 16.14 |
| Compressor | Inverter |
| Product Width (in) | 37.24 |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF) | 8.9 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 35 amps |
| Weight (lbs) | 181.440000 |
| Primary Heating Capacity | 35,001 - 40,000 BTU |
| Cooling Efficiency | 16 SEER |
| Series | DIY |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
