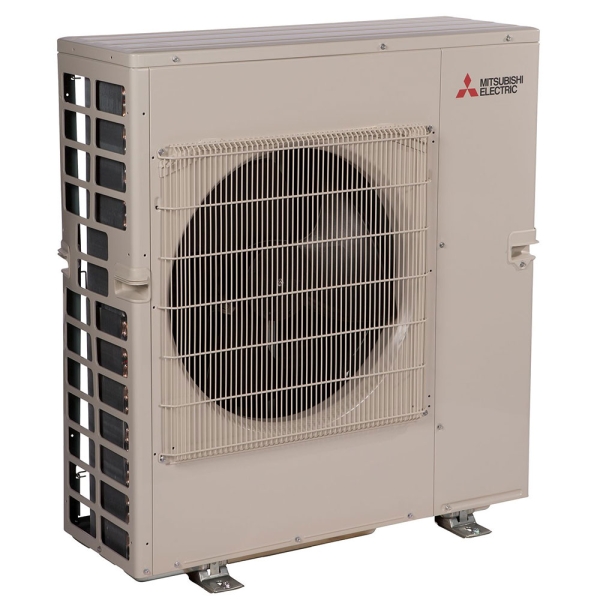

36k BTU 17.6 SEER Mitsubishi M Series Ductless Heat Pump Condenser
Shop All MITSUBISHI
Item:
HA16576
Model:
MXZ-4C36NA2-U1
Condition:
New
This product has been discontinued.
The manufacturer has discontinued this product permanently. Please see the alternative product below.
Recommended Alternative:
Out of stock
Loading...
This Mitsubishi M Series Ductless Heat Pump Condenser is equipped with inverter technology, which improves the temperature accuracy and system efficiency through exact adjustments of both compressor speed and refrigerant flow. This outdoor unit supports up to four indoor units and it can be configured to suit your style and capacity requirements while offering outstanding energy efficiency for you, your family or your business.
Accessories
Description / Documents
This Mitsubishi M Series Ductless Heat Pump Condenser is equipped with inverter technology, which improves the temperature accuracy and system efficiency through exact adjustments of both compressor speed and refrigerant flow. This outdoor unit supports up to four indoor units and it can be configured to suit your style and capacity requirements while offering outstanding energy efficiency for you, your family or your business.
Additional Documents
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | MXZ-4C36NA2-U1 |
|---|---|
| UPC | 00622632120453 |
| Product Height (in) | 31.34 |
| Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Product Length (in) | 13 |
| Compressor | Inverter |
| Product Width (in) | 37.41 |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF) | Up to 11 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 25 amps |
| Weight (lbs) | 139.000000 |
| Primary Heating Capacity | 35,001 - 40,000 BTU |
| Refrigerant | R-410a |
| Cooling Efficiency | 17 SEER |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
