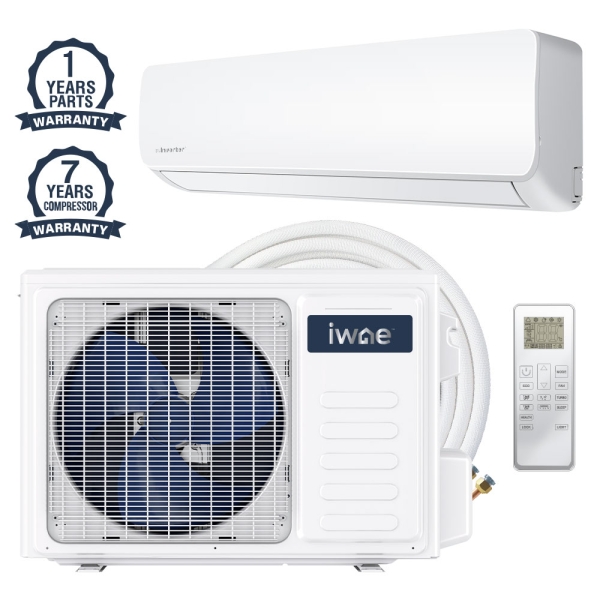

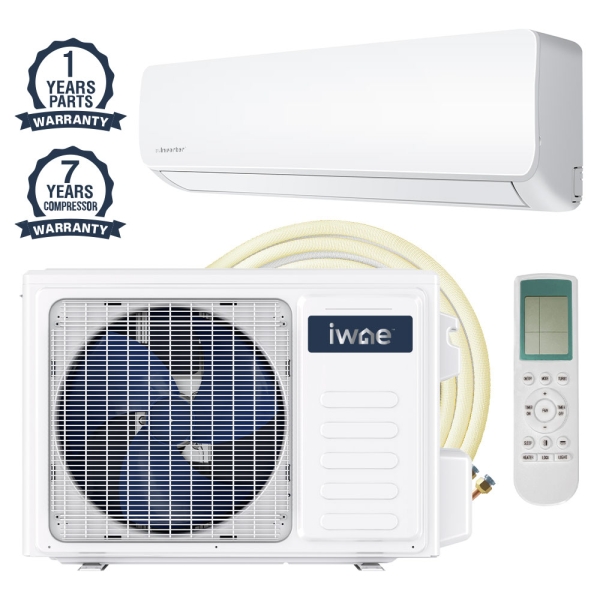

From a single room that the central system can’t regulate to a family member with unique needs or preferences, having a single-zone solution is a game changer. With the 36k BTU 18 SEER2 IWAE S-Series Ductless Mini Split Heat & AC System - R32, you won’t have to close off any area or avoid your favorite room in extreme temperatures. Gaining the support of a SEER2 rating of 18, an HSPF2 rating of 8, and the backing of AHRI certification and ETL listing, the IWAE S-Series Heat & AC System proves its capabilities by passing a range of independent tests. For any 1500 to 1800 square foot space that needs a little extra support, bring in the big guns with a 36k BTU IWAE Ductless Mini Split.

This Bundle Includes:

36k BTU IWAE S-Series Wall Mounted Ductless Air Handler - R32
Item: HA28029Model: AEPLIWAWM18E3631S1A Qty: 1
Accessories
Description / Documents

From a single room that the central system can’t regulate to a family member with unique needs or preferences, having a single-zone solution is a game changer. With the 36k BTU 18 SEER2 IWAE S-Series Ductless Mini Split Heat & AC System - R32, you won’t have to close off any area or avoid your favorite room in extreme temperatures. Gaining the support of a SEER2 rating of 18, an HSPF2 rating of 8, and the backing of AHRI certification and ETL listing, the IWAE S-Series Heat & AC System proves its capabilities by passing a range of independent tests. For any 1500 to 1800 square foot space that needs a little extra support, bring in the big guns with a 36k BTU IWAE Ductless Mini Split.

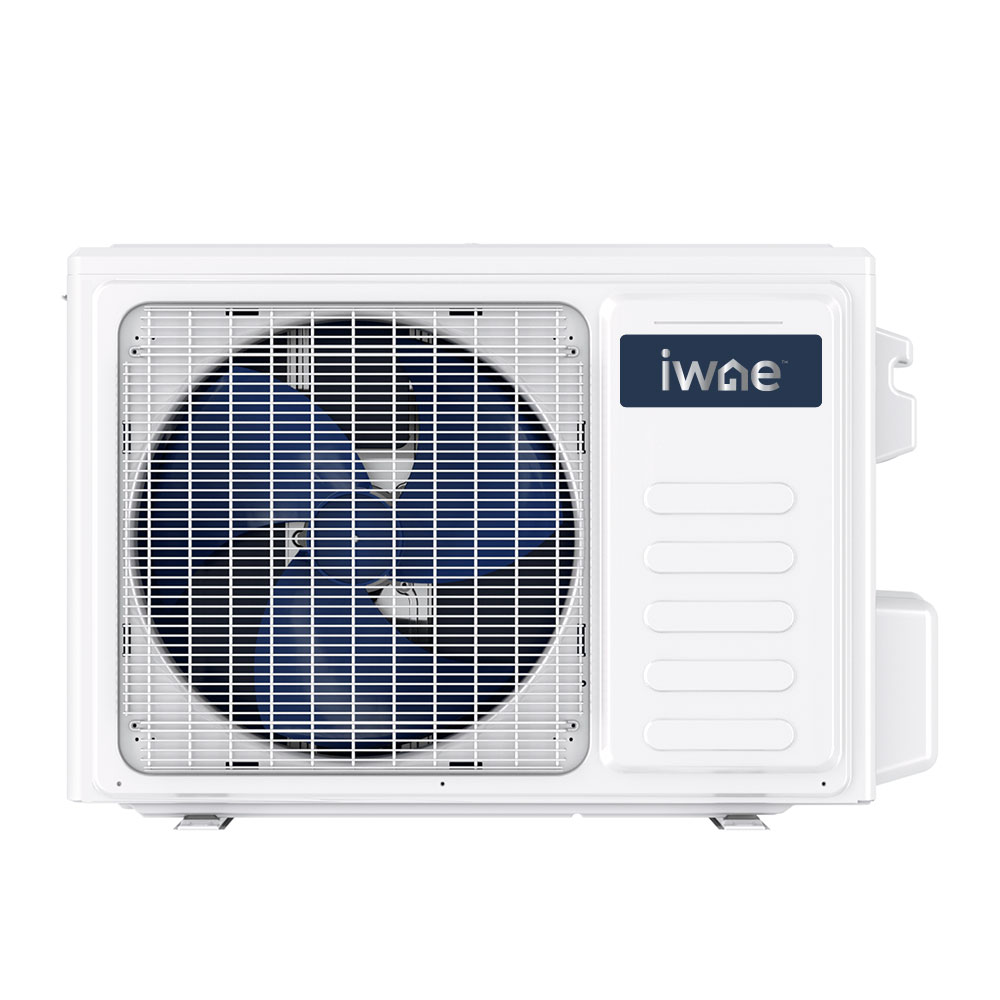

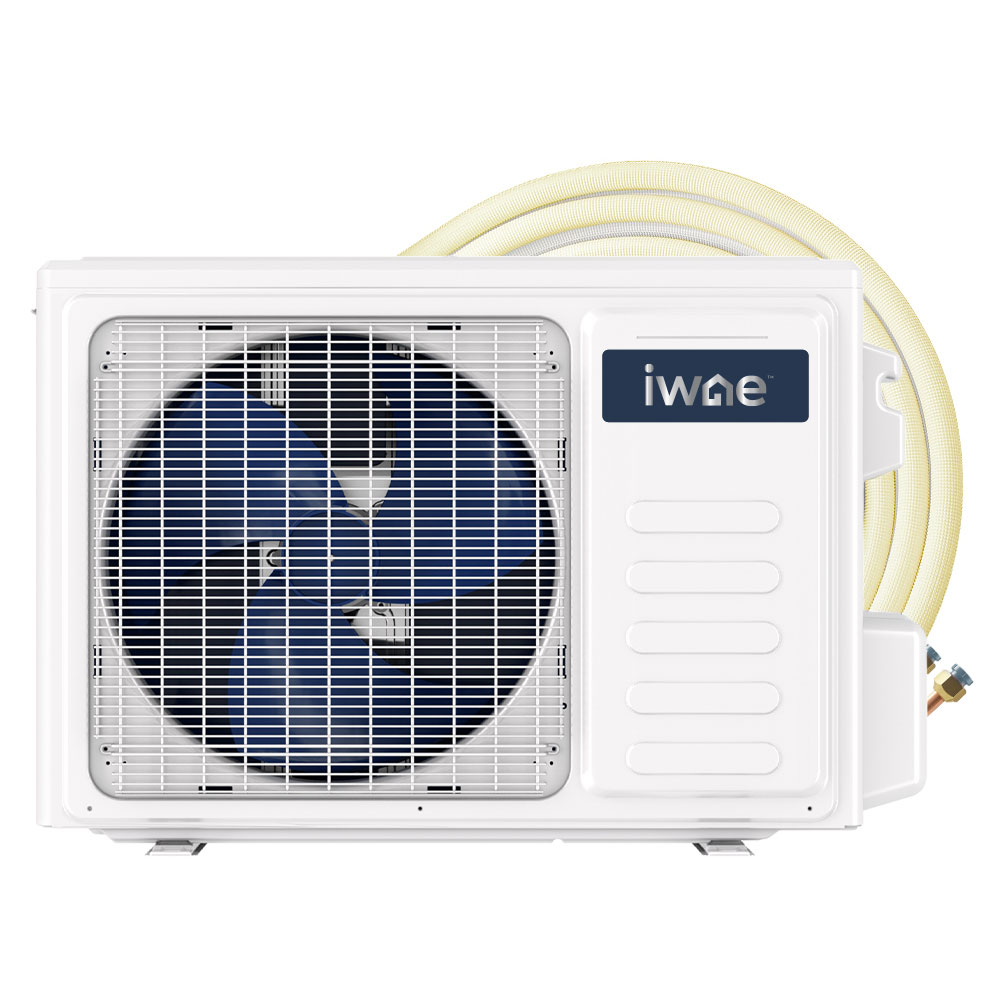

Well-suited for a wide variety of situations, the condenser in the 36k BTU 18 SEER2 IWAE S-Series Ductless Mini Split Heat & AC System - R32 gives you consistent comfort in any season. When the summer heat hits a sweltering 118 degrees Fahrenheit or winter’s bite drops as low as 14 degrees Fahrenheit, the IWAE Mini Split System is ready for the job. Using an energy-efficient scroll compressor provides impressive efficiency while mitigating the frequency of maintenance calls thanks to a design that eliminates many of the parts that break easily. Even when the HOA in your neighborhood likes to gripe about loud HVAC, the shockingly quiet IWAE S-Series Condenser stays below 60dB to keep even the pickiest neighbors happy.

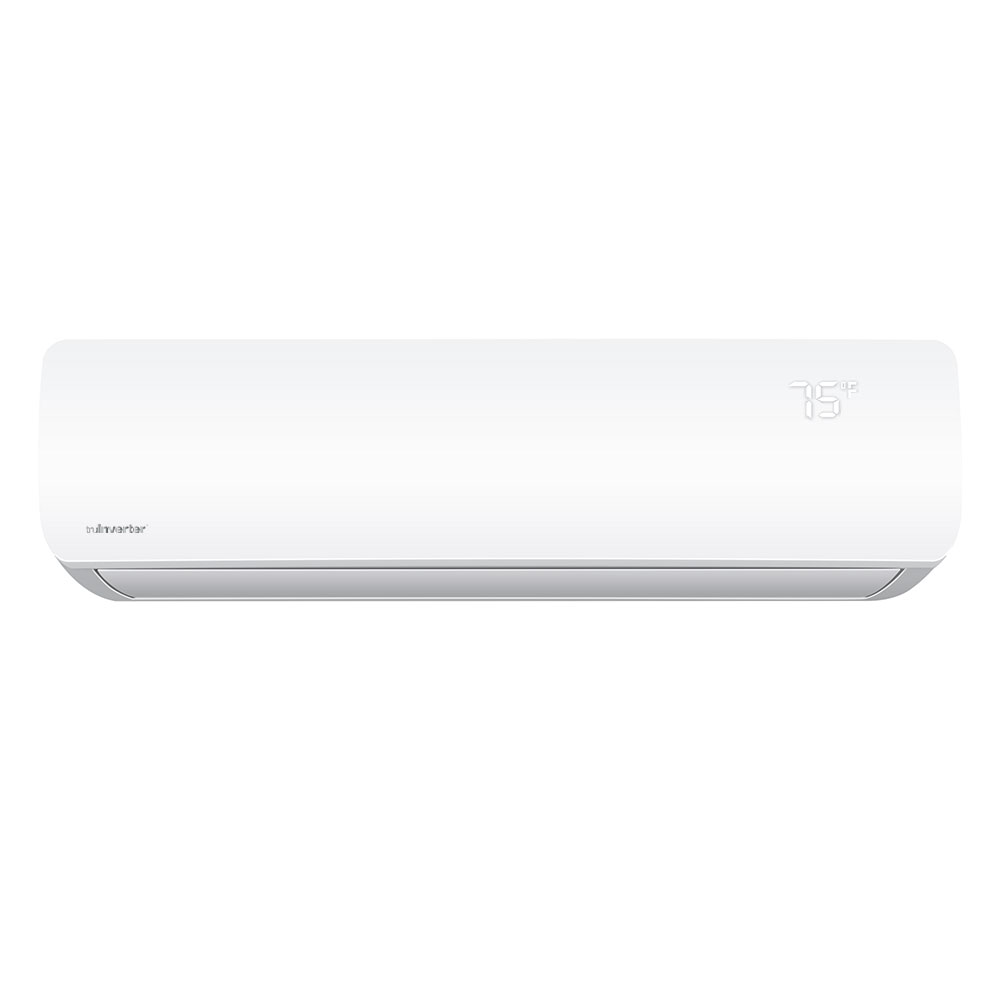

Sharing heating and cooled air throughout your living space, the air handler in the 36k BTU 18 SEER2 IWAE S-Series Ductless Mini Split Heat & AC System - R32 is designed to leave a lasting impression on your everyday comfort. R32 refrigerant boasts a 30% lower GWP than R410a and demands 10% less electricity, allowing the IWAE Handler to operate with impressive efficiency. Letting your HVAC relax a bit while you’re out and about can help save energy, and with wifi compatibility that lets you adjust your settings from anywhere with a cell signal, you can still come home to a comfortable climate. With even its strongest setting as quiet as 50dB, you can relax knowing the IWAE S-Series Air Handler can go the distance for your comfort.

When you need the perfect blend of affordability and performance, look no further than the S-Series Mini Splits from IWAE. Including dedicated tech support and warranty coverage that spans 1 year on parts and 7 years on the compressor, you’ll get everything you need and more in one neat purchase. Why wait? Bring in a 36k BTU IWAE S-Series Ductless Mini Split Heat & AC System making use of R32 refrigerant today and, once a licensed contractor is done with setup, you’ll feel the difference with every cycle.

Customer Reviews / Q&A
Specifications

System Overview

Model AEPLIWMHV18S3631S1A,AEPLIWAWM18E3631S1A
AHRI Number 218465674
Configuration Wall Mounted
Bundle Avg Coverage Area 1,500 - 1,800 Sq Ft
Bundle Cooling Capacity 3 Ton
Bundle Cooling Efficiency (SEER2) 18
Heat Pump Efficiency (HSPF2) 8
Series S-Series
Zones 1
Region Compatibility Nationwide

AEPLIWMHV18S3631S1A Specifications:

Model AEPLIWMHV18S3631S1A
AHRI Number 218465674
Product Height (in) 16.73
Avg Coverage Area 1,500 - 1,800 Sq Ft
Product Length (in) 29.53
Compressor Inverter
Product Width (in) 40.4
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF2) 8
Line Set Connection Type Flared
Liquid Line Size 3/8 inch
Max Overcurrent Protection 20 amps
Weight (lbs) 99.210000
Primary Heating Capacity 35,001 - 40,000 BTU
Refrigerant R-32
Cooling Efficiency (SEER2) 18
Series S-Series
System Application Type Ductless Split Systems
Voltage 240
Warranty 1 Year Parts, 7 Year Compressor
Region Compatibility Nationwide

AEPLIWAWM18E3631S1A Specifications:

Model AEPLIWAWM18E3631S1A
Product Height (in) 14.21
Configuration Wall Mounted
Product Length (in) 9.92
Air Flow Direction Horizontal
Product Width (in) 44.5
Blower Motor Multi Speed
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Line Set Connection Type Flared
Liquid Line Size 3/8 inch
Max Overcurrent Protection 10 amps
Weight (lbs) 46.310000
Refrigerant R-32
Series S-Series
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 1 Year Parts, 7 Year Compressor
