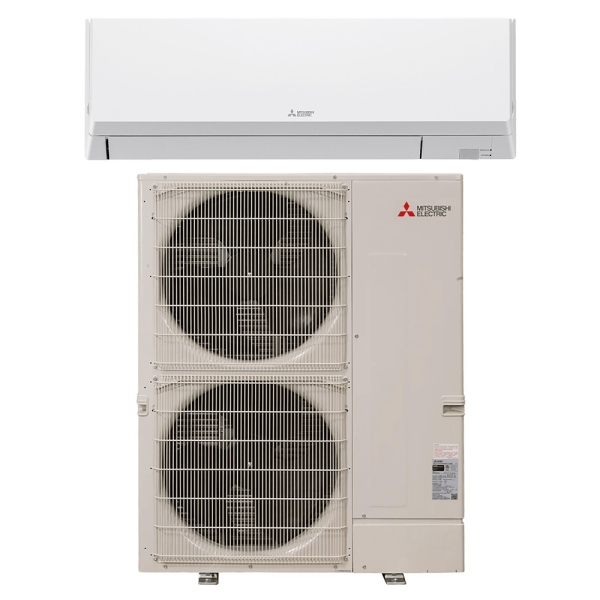

36k BTU 20.3 SEER2 Mitsubishi P-Series Ductless Heat Pump Split System - Wall Mounted - R454B
Shop All MITSUBISHI
Item:
HA28060
Model:
PUZ-AK36NL,PKA-AK36NL
Condition:
New

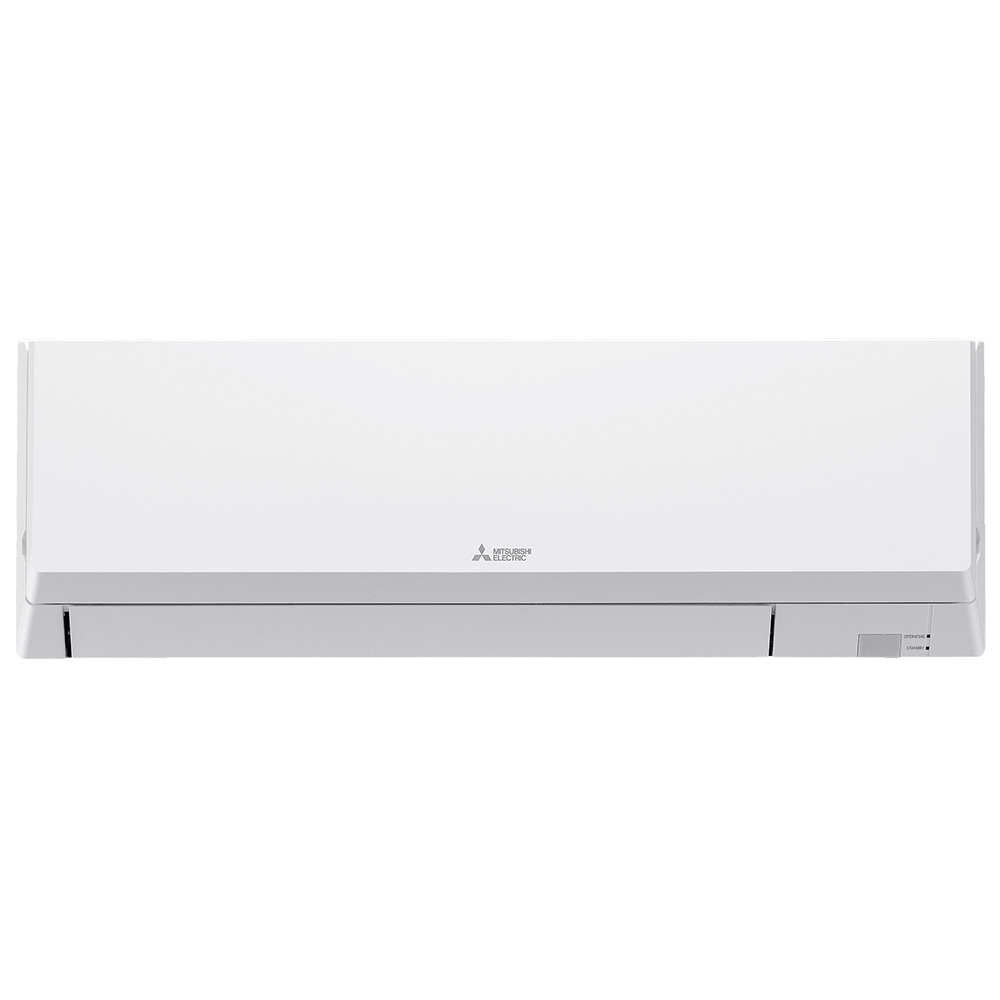

36k BTU Mitsubishi P-Series Wall Mounted Ductless Air Handler - R454B
Item: HA28039Model: PKA-AK36NL
Qty: 1
Description / Documents
Customer Reviews / Q&A
Specifications
System Overview
| Model | PUZ-AK36NL,PKA-AK36NL |
|---|---|
| AHRI Number | 215712189 |
| Bundle Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Bundle Cooling Capacity | 3 Ton |
| Bundle Cooling Efficiency (SEER2) | 20.3 |
| Heat Pump Efficiency (HSPF2) | 9.4 |
| Series | P-Series |
| Zones | 1 |
| Region Compatibility | Nationwide |
PUZ-AK36NL Specifications:
| Model | PUZ-AK36NL |
|---|---|
| UPC | 192890003480 |
| AHRI Number | 215712189 |
| Product Height (in) | 52.672 |
| Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Product Length (in) | 14 |
| Compressor | Inverter |
| Product Width (in) | 41.348 |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 9.8 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 55 amps |
| Weight (lbs) | 223.000000 |
| Primary Heating Capacity | 35,001 - 40,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 20.3 |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Region Compatibility | Nationwide |
PKA-AK36NL Specifications:
| Model | PKA-AK36NL |
|---|---|
| UPC | 192890003817 |
| Product Height (in) | 14.375 |
| Configuration | Wall Mounted |
| Product Length (in) | 11.625 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 46.0625 |
| Blower Motor | Multi Speed |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 46.000000 |
| Refrigerant | R-454b |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
