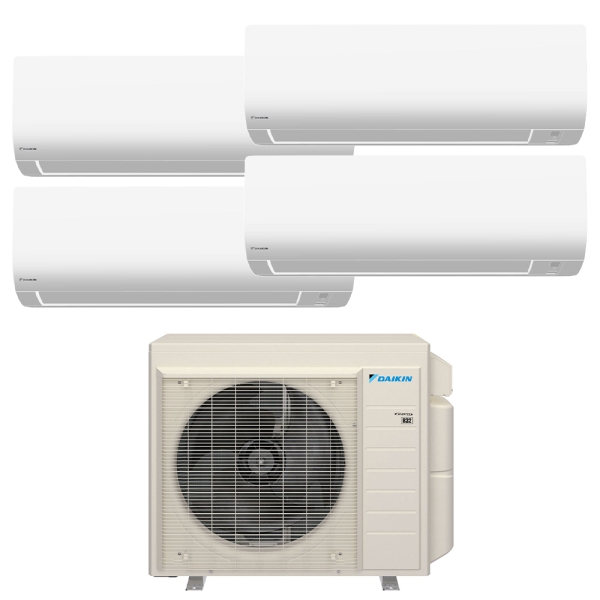

36k BTU 20 SEER2 Daikin Ductless Heat Pump Split System - 4 Zone - Wall Mounted - 9k + 9k + 9k + 9k - R32
DAIKIN

Accessories
Description / Documents
Nothing’s more frustrating than the endless complaints of loved ones who all want to enjoy different temperatures within a single home. If you want a way to keep the peace without breaking the bank, the 36k BTU 20 SEER2 Daikin Ductless Heat Pump Split System - 4 Zone - Wall Mounted - 9k + 9k + 9k + 9k - R32 offers the customized climate control they want with the efficiency you need. Backed by AHRI and Energy Star cold climate certifications, the Daikin Heat Pump has passed exhaustive independent evaluations to highlight the accuracy of its performance and efficiency claims. Give the gift of control to your home with the integration of a 36k BTU Daikin Split System.
Designed to go the distance for your comfort, the condenser in the 36k BTU 20 SEER2 Daikin Ductless Heat Pump Split System - 4 Zone - Wall Mounted - 9k + 9k + 9k + 9k - R32 offers the comprehensive climate control solution you’ve been looking for. Thanks to the inclusion of inverter technology, the ambient temperature stays closer to your set-point for better efficiency and uncompromising comfort. The hydrophilic, anti-corrosion treatment on the heat exchanger shields the hardware from harsh chemicals in the air, letting the Daikin Condenser ensure lasting results that aren’t dampened by rain and other moisture. Equipped with eco-friendly R32 refrigerant, the Daikin Split System goes above and beyond to give your home efficient results.
Offering a range of settings, the air handlers in the 36k BTU 20 SEER2 Daikin Ductless Heat Pump Split System - 4 Zone - Wall Mounted - 9k + 9k + 9k + 9k - R32 makes it easy to craft your ideal indoor ambiance in any situation. Powerful operation can be enacted with a single touch, giving your space a 20-minute push of amplified heating or cooling in any setting for fast results. In the opposite direction, econo mode limits how much power the Daikin Heat Pump can use at the start of a cycle to protect the circuits from getting overloaded as the various components in the system turn on in unison. Equipped with a titanium apatite photocatalytic air purifying filter that eliminates unwanted particulates and odors from the air, the Daikin Split System has everything you need and more to stay comfortable in every season.
Between the powerful performance you want, and the support of a 12-year limited parts warranty that covers your hardware after registration, there’s no reason to drag your feet on finding a worthwhile climate control solution. Decide on a 36k BTU 4 Zone Daikin Ductless Heat Pump Split System with four 9k BTU Wall Mounted Air Handlers equipped with R32 refrigerant today and provide the fully tailored temperature regulation your family’s been dreaming of.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | 4MXM36AVJU9,FTXV09AVJU9,FTXV09AVJU9,FTXV09AVJU9,FTXV09AVJU9 |
|---|---|
| AHRI Number | 214837759 |
| Bundle Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Bundle Cooling Capacity | 3 Ton |
| Bundle Cooling Efficiency (SEER2) | 20 |
| Heat Pump Efficiency (HSPF2) | 9.5 |
| Region Compatibility | Nationwide |

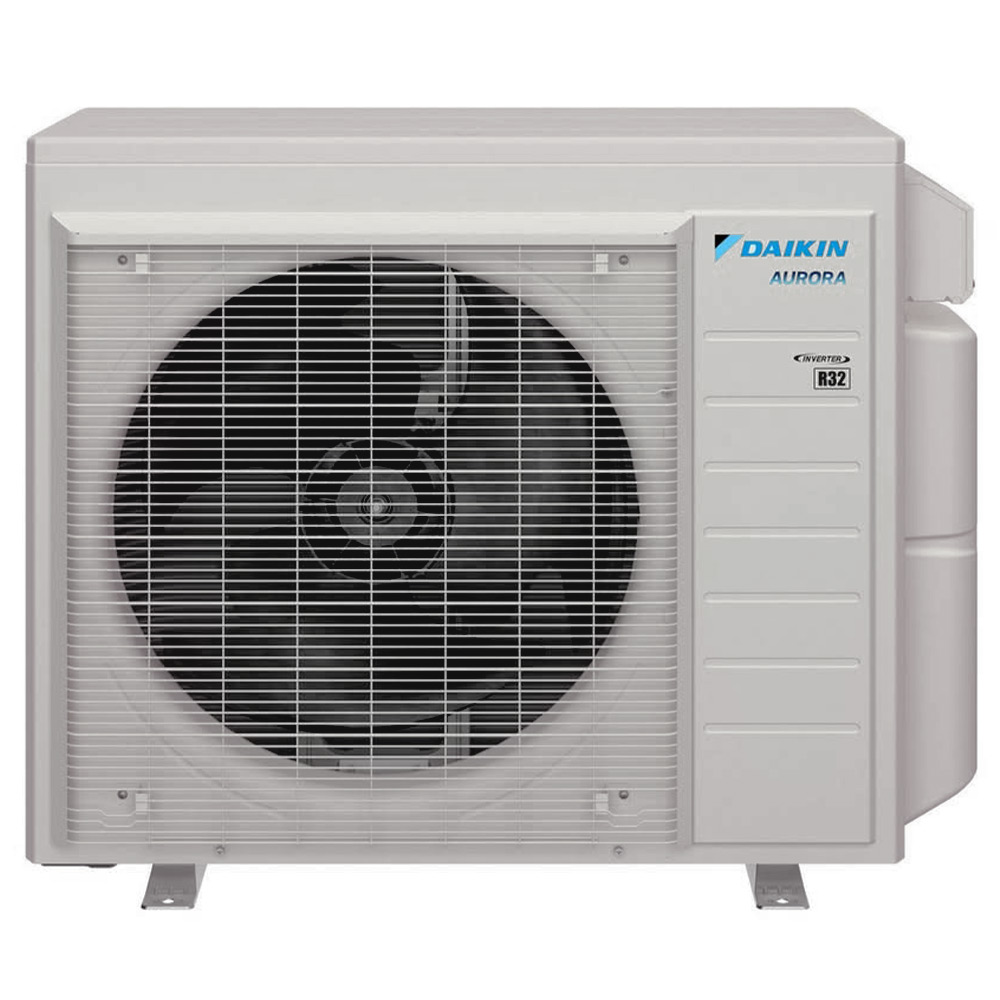

4MXM36AVJU9 Specifications:
| Model | 4MXM36AVJU9 |
|---|---|
| UPC | 633190238344 |
| AHRI Number | 214837759 |
| Product Height (in) | 29.5 |
| Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Product Length (in) | 12.625 |
| Compressor | Inverter |
| Product Width (in) | 34.25 |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 9.5 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 25 amps |
| Weight (lbs) | 142.000000 |
| Primary Heating Capacity | 35,001 - 40,000 BTU |
| Refrigerant | R-32 |
| Cooling Efficiency (SEER2) | 20.0 |
| Suction Line Size | 3/8 inch |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Region Compatibility | Nationwide |
FTXV09AVJU9 Specifications:
| Model | FTXV09AVJU9 |
|---|---|
| Product Height (in) | 11.3 |
| Configuration | Wall Mounted |
| Product Length (in) | 8.8 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 30.4 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 19.000000 |
| Refrigerant | R-32 |
| Series | Aurora |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 12 Year Parts |
FTXV09AVJU9 Specifications:
| Model | FTXV09AVJU9 |
|---|---|
| Product Height (in) | 11.3 |
| Configuration | Wall Mounted |
| Product Length (in) | 8.8 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 30.4 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 19.000000 |
| Refrigerant | R-32 |
| Series | Aurora |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 12 Year Parts |
FTXV09AVJU9 Specifications:
| Model | FTXV09AVJU9 |
|---|---|
| Product Height (in) | 11.3 |
| Configuration | Wall Mounted |
| Product Length (in) | 8.8 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 30.4 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 19.000000 |
| Refrigerant | R-32 |
| Series | Aurora |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 12 Year Parts |
FTXV09AVJU9 Specifications:
| Model | FTXV09AVJU9 |
|---|---|
| Product Height (in) | 11.3 |
| Configuration | Wall Mounted |
| Product Length (in) | 8.8 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 30.4 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 19.000000 |
| Refrigerant | R-32 |
| Series | Aurora |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 12 Year Parts |
