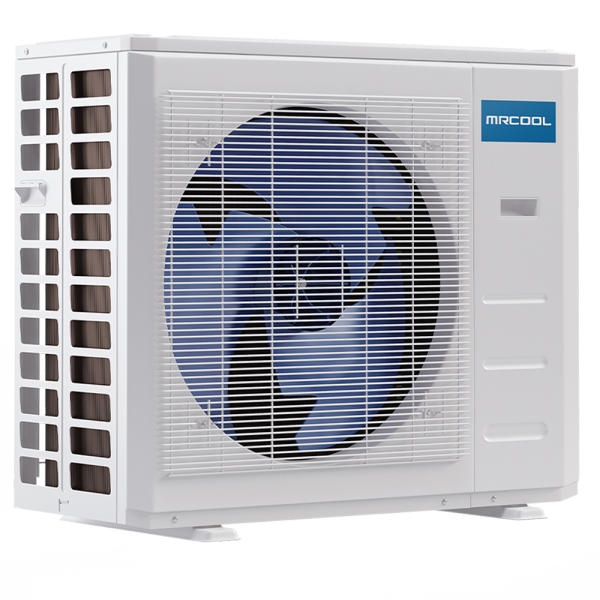

Name: 36k BTU 21.5 SEER MrCool DIY Ductless Heat Pump Condenser - 4 Zone 240v
Brand: MrCool
SKU: HA21057
Price: 2429 USD
Availability: OutOfStock

✓ Link Copied!

Shop All MRCOOL

Item:

HA21057

Model:

DIY-MULTI4-36HP230

Condition:

New

36k-btu-21.5-seer-mrcool-diy-ductless-heat-pump-condenser-4-zone-240v-ha21057-01.3548

This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

Recommended Alternative:

Brand MrCool

9k BTU 22.8 SEER MrCool Olympus ES Ductless Heat Pump Condenser

$514.32

Out of stock

Let me know when it’s back in stock:

For an inexpensive alternative to a traditional HVAC system that you can install all on your own, choose this 36k BTU 21.5 SEER MrCool DIY Ductless Heat Pump Condenser - 4 Zone 240v. In addition to its easy installation this heat pump condenser can power a system that heats or cools four different areas in your home or business.

Description / Documents

This particular outdoor heat pump has a heating capacity of 36,000 BTU and is highly efficient with a 21.5 SEER rating. To keep your space warm and cozy in colder months, this heat pump condenser reverses the air conditioning process and pulls ambient heat from outside into your home.

SIMPLE DIY INSTALLATION

You get to choose how you want to install this compact 36k BTU 21.5 SEER MrCool DIY Ductless Heat Pump Condenser - 4 Zone 240v. You have options! Anchor the unit to the ground, install it on a concrete pad, or attach it to a wall with a bracket. The unit is 37.24 inches wide, 31.89 inches tall, and 16.54 inches deep. The mounting dimensions for this unit are 26.5 inches wide by 15.87 inches deep.

You can easily install this condenser without having to call for expert HVAC help. The key to this do-it-yourself installation is the Quick Connect line set. The line set is pre-charged with an eco-friendly refrigerant that doesn’t require a certified technician to install.

HANDY FEATURES

Several helpful features are included with this 36k BTU 21.5 SEER MrCool DIY Ductless Heat Pump Condenser - 4 Zone 240v. If a power outage occurs, your appliance will automatically switch on with the same settings once power returns so you don’t have to lift a finger.

Trust that this heat pump condenser won’t cause annoying interruptions for you or your neighbors. The condenser installation kit even comes with sound dampening pads to ensure your system works quietly.

This condenser has a Gold Fin coating that ensures that your unit will operate for a long time. The coating is designed to resist corrosion, which is especially helpful if you live on the coast where there are high levels of salt in the air.

SIMPLE MAINTENANCE

This 36k BTU 21.5 SEER MrCool DIY Ductless Heat Pump Condenser - 4 Zone 240v can detect when it is low on refrigerant and alerts you with an alarm so you can proactively address system issues and prevent costly damage. Cleaning likewise requires no special tools or expensive solvents.

Additional Documents

From the Manufacturer

DIYM Customer Brochure

DIYM Installation Manual

DIYM Owners Manual

DIYM Warranty

Customer Reviews / Q&A

Specifications

System Overview

Model	DIY-MULTI4-36HP230
UPC	810035931770
Product Height (in)	31.89
Avg Coverage Area	1,250 - 1,500 Sq Ft
Product Length (in)	16.14
Compressor	Inverter
Product Width (in)	37.24
Cooling Capacity	3 Ton
Electrical Phase	1-Phase
Heat Pump Efficiency (HSPF)	11.0
Line Set Connection Type	Quick Connect
Liquid Line Size	1/4 inch
Max Overcurrent Protection	45 amps
Weight (lbs)	179.700000
Primary Heating Capacity	35,001 - 40,000 BTU
Refrigerant	R-410a
Cooling Efficiency	19 SEER and Above
Series	DIY
Suction Line Size	1/2 inch
System Application Type	Ductless Split Systems
Voltage	240
Warranty	5 Year Parts, 7 Year Compressor
Region Compatibility	Nationwide
