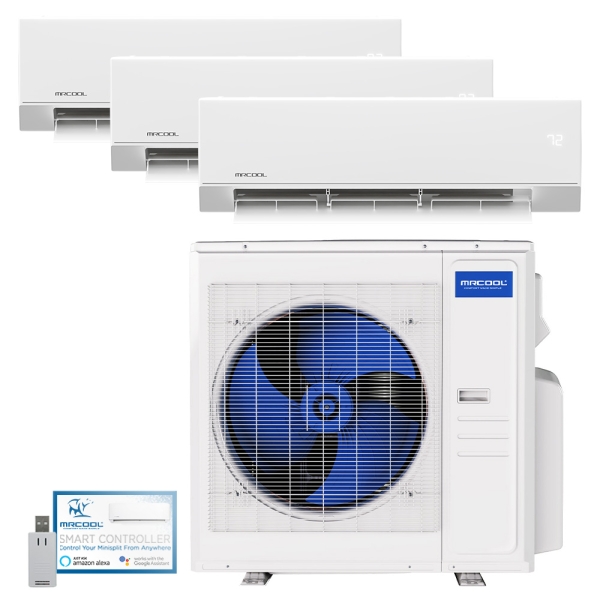

36k BTU 24 SEER2 MrCool Olympus Ductless Heat Pump Split System - 3 Zone - 9k + 9k + 18k - R454B
Shop All MRCOOL

Accessories
Description / Documents
Keeping indoor temperatures stable while ensuring comfort for multiple people with unique climate control preferences is like being stuck between a rock and a hard place. Where other systems bend to outdoor pressures, the 36k BTU 24 SEER2 MrCool Olympus Ductless Heat Pump Split System - 3 Zone - 9k + 9k + 18k - R454B refuses to break. Supported by AHRI and Energy Star certifications, on top of ETL listing, the MrCool Olympus Ductless Heat Pump validates every efficiency, safety, and functional claim by passing examinations from third-party agencies. Give your home truly customizable results that tailor temperatures in each unique zone with the integration of a 36k BTU MrCool Split System.
Giving your home the results you want, the condenser in the 36k BTU 24 SEER2 MrCool Olympus Ductless Heat Pump Split System - 3 Zone - 9k + 9k + 18k - R454B has the power to support all three air handlers without issue. The integration of inverter technology maintains more consistent comfort, walking a fine line between energy efficiency and temperature control by stopping temperatures from drifting away from your set-point. The use of R454B refrigerant means normal operation results in zero ozone depletion and less potential for negative global warming effects than older refrigerant hardware. For regions where temperatures drop below freezing, the MrCool Olympus Heat Pump is the right choice to ensure the reliable results you want.
Providing the catered climate you crave, the three air handlers in the 36k BTU 24 SEER2 MrCool Olympus Ductless Heat Pump Split System - 3 Zone - 9k + 9k + 18k - R454B tailor their airflow to match the needs of each individual space. The use of washable filters saves you money, eliminating the need to buy 3 replacement filters every month or so. Quiet operation is consistent across the 9k and 18k BTU air handlers, minimizing disruption during operation. Between the included remotes and MrCool Comfort App compatibility that give you total control over your settings, the MrCool Olympus Split System goes above and beyond the call of duty to guarantee easy access to your system from anywhere with a cell signal.
It’s one thing to enjoy the performance you want; it’s another to know the hardware is supported by warranty coverage that includes 7 years on the compressor and 5 years on parts by default with the ability to lengthen compressor coverage to a limited lifetime with enrollment in the MrCool Care Program. When you have both, what more could you ask for? Secure a 36k BTU 3 Zone MrCool Olympus Ductless Heat Pump Split System with one 18k BTU and two 9k BTU Air Handlers equipped with R454B refrigerant today to give your family the year-round comfort they deserve without compromise.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | M336HP23WM02C |
|---|---|
| AHRI Number | 217291698 |
| Bundle Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Bundle Cooling Capacity | 3 Ton |
| Bundle Cooling Efficiency (SEER2) | 24 |
| Heat Pump Efficiency (HSPF2) | 9.5 |
| Series | Olympus |
| Region Compatibility | Nationwide |
MULTI5-36HP230C-O Specifications:
| Model | MULTI5-36HP230C-O |
|---|---|
| UPC | 840255587808 |
| AHRI Number | 217291699 |
| Product Height (in) | 31.9 |
| Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Product Length (in) | 16.1 |
| Compressor | Inverter |
| Product Width (in) | 37.2 |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 9.5 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 35 amps |
| Weight (lbs) | 168.900000 |
| Primary Heating Capacity | 35,001 - 40,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 24 |
| Series | Olympus ES |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
O-09-HP-WMAH-230C-O Specifications:
| Model | O-09-HP-WMAH-230C-O |
|---|---|
| UPC | 840255587709 |
| Product Height (in) | 11.81 |
| Configuration | Wall Mounted |
| Product Length (in) | 9.09 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 33.74 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 29.980000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
O-09-HP-WMAH-230C-O Specifications:
| Model | O-09-HP-WMAH-230C-O |
|---|---|
| UPC | 840255587709 |
| Product Height (in) | 11.81 |
| Configuration | Wall Mounted |
| Product Length (in) | 9.09 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 33.74 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 29.980000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
O-18-HP-WMAH-230C-O Specifications:
| Model | O-18-HP-WMAH-230C-O |
|---|---|
| UPC | 840255587723 |
| Product Height (in) | 12.64 |
| Configuration | Wall Mounted |
| Product Length (in) | 9.69 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 40.31 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 36.600000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
