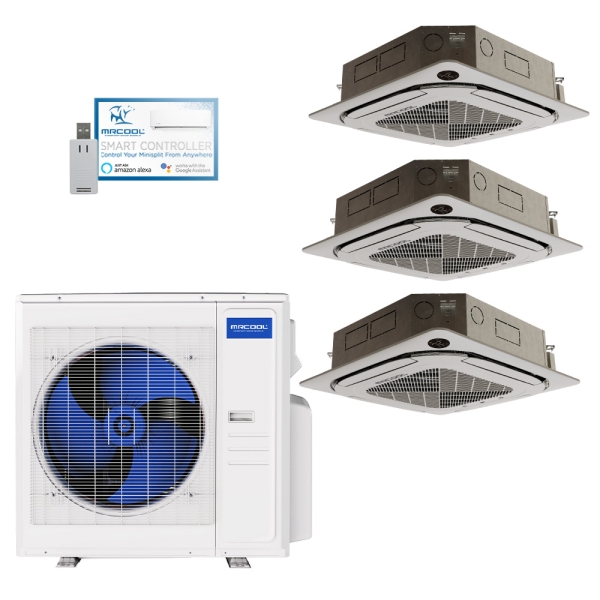

36k BTU 24 SEER2 MrCool Olympus Ductless Heat Pump Split System - 3 Zone Ceiling Cassette - 12k + 12k + 12k - R454B
Shop All MRCOOL

Accessories
Description / Documents
Are you tired of your central HVAC system falling shy of the heating and cooling results you want in your home? If three areas in your house struggle during extreme temperatures, the 36k BTU 24 SEER2 MrCool Olympus Ductless Heat Pump Split System - 3 Zone Ceiling Cassette - 12k + 12k + 12k - R454B can supply the support your climate control hardware needs. Backed by AHRI and Energy Star certifications, plus ETL listing, the MrCool Olympus Ductless Heat Pump highlights every safety, performance, and efficiency claim by passing thorough testing from third-party agencies. Make the most of every inch of your living space, regardless of the weather outside, with the integration of a 36k BTU MrCool Split System.
Well-equipped to handle anything life throws your way, the condenser in the 36k BTU 24 SEER2 MrCool Olympus Ductless Heat Pump Split System - 3 Zone Ceiling Cassette - 12k + 12k + 12k - R454B boasts intelligent hardware that makes a positive impact on your quality of life. The use of inverter technology locks temperatures closer to your chosen set-point at all times, putting the emphasis on both comfort and efficiency. Thanks to R454B refrigerant, the MrCool Condenser maintains zero ozone depletion potential and a lower global warming potential than previous refrigerant equipment. For regions where winter temperatures drop below freezing, the MrCool Olympus Heat Pump is the perfect solution for year-round climate control.
Keeping each individual zone supplied with comfortable, clean air, the three air handlers in the 36k BTU 24 SEER2 MrCool Olympus Ductless Heat Pump Split System - 3 Zone Ceiling Cassette - 12k + 12k + 12k - R454B isolates any particulates to remove the allergens from circulation. Boasting a sleek construction, the MrCool Air Handlers fit nicely into the ceiling without ruining your aesthetic. All three 12k BTU MrCool Ceiling Cassettes maintain quiet function, maximizing your comfort beyond climate regulation. Between the included remote and smartphone app that put your settings in the palm of your hand, the MrCool Olympus Split System has everything you need and more to stay comfortable.
When you can have more than powerful performance, but the support of warranty coverage that includes 7 years on the compressor, 5 years on parts, and the option to extend compressor coverage to a limited lifetime with enrollment in the MrCool Care Program, what do you gain by dragging your feet? Choose a 36k BTU 3 Zone MrCool Olympus Ductless Heat Pump Split System with three 12k BTU Ceiling Cassette Air Handlers running on R454B refrigerant today and ensure the exact indoor ambiance you want in any season.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | M336HP23CC00C |
|---|---|
| AHRI Number | 217291698 |
| Bundle Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Bundle Cooling Capacity | 3 Ton |
| Bundle Cooling Efficiency (SEER2) | 24 |
| Heat Pump Efficiency (HSPF2) | 9.5 |
| Series | Olympus |
| Region Compatibility | Nationwide |
MULTI5-36HP230C-O Specifications:
| Model | MULTI5-36HP230C-O |
|---|---|
| UPC | 840255587808 |
| AHRI Number | 217291699 |
| Product Height (in) | 31.9 |
| Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Product Length (in) | 16.1 |
| Compressor | Inverter |
| Product Width (in) | 37.2 |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 9.5 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 35 amps |
| Weight (lbs) | 168.900000 |
| Primary Heating Capacity | 35,001 - 40,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 24 |
| Series | Olympus ES |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
CASSETTE12HP-230C-P-O Specifications:
| Model | CASSETTE12HP-230C-P-O |
|---|---|
| UPC | 840255587976 |
| Product Height (in) | 9.7 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 22.4 |
| Air Flow Direction | Downflow |
| Product Width (in) | 22.4 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 35.300000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
CASSETTE12HP-230C-P-O Specifications:
| Model | CASSETTE12HP-230C-P-O |
|---|---|
| UPC | 840255587976 |
| Product Height (in) | 9.7 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 22.4 |
| Air Flow Direction | Downflow |
| Product Width (in) | 22.4 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 35.300000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
CASSETTE12HP-230C-P-O Specifications:
| Model | CASSETTE12HP-230C-P-O |
|---|---|
| UPC | 840255587976 |
| Product Height (in) | 9.7 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 22.4 |
| Air Flow Direction | Downflow |
| Product Width (in) | 22.4 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 35.300000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
