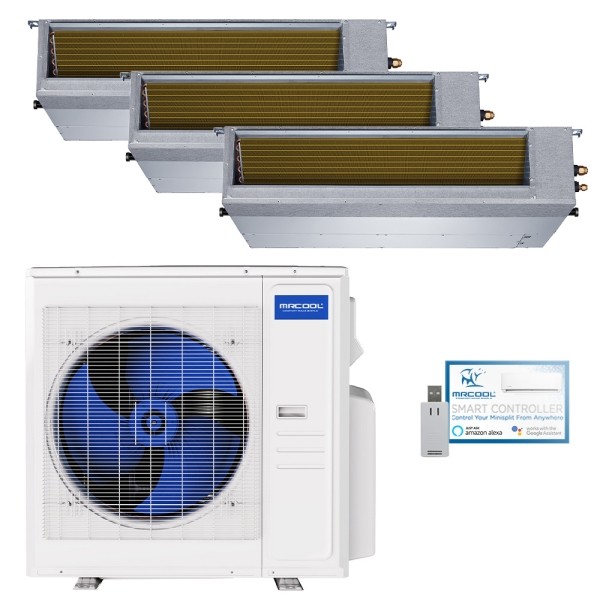

36k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 3 Zone - 12k + 12k + 12k - R454B
MRCOOL

Accessories
Description / Documents
Giving your living space access to tailored temperatures in up to three unique zones doesn’t have to stay a pipe dream. To support in rooms with particular needs, or to offer customizability that won't affect other spaces, the 36k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 3 Zone - 12k + 12k + 12k - R454B can produce the year-round results you crave. Backed by ETL listing on top of Energy Star and AHRI certifications, the MrCool Olympus Heat Pump highlights every efficiency, operational, and safety claim by passing rigorous examinations from independent agencies. Guarantee the exact indoor ambiance you crave in any weather with the integration of a 36k BTU MrCool Split System.
Handling each of the individual air handlers needs, the condenser in the 36k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 3 Zone - 12k + 12k + 12k - R454B has the ability to tailor your temperatures in multiple rooms without them influencing each other. By using inverter technology, the MrCool Condenser strikes the delicate balance between efficiency and comfort by stopping temperatures from fluctuating too far from your chosen set-point. By choosing eco-conscious R454B refrigerant, the MrCool Heat Pump keeps zero ozone depletion potential and a smaller global warming potential compared to more antiquated hardware. If your region has drastic temperature changes that hit triple digits in summer and below freezing conditions in winter, the MrCool Olympus Split System is the perfect solution in any season.
Willing and able to produce unique results per zone, the three ceiling recessed air handlers in the 36k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 3 Zone - 12k + 12k + 12k - R454B ensures the exact indoor conditions you crave in any season. Built to tuck away between ceiling joists, the 12k BTU MrCool Ceiling Recessed Air Handlers maximizes comfort in any space without drawing your attention or demanding any wall space. Allowing you to adjust your settings from the wall-mounted controller, or from the comfort of the couch with a remote, the MrCool Olympus Split System is the perfect solution for comprehensive comfort with ease.
When you’re ready to enjoy the temperatures you want with the knowledge that the hardware is protected by a warranty that includes coverage for 7 years on the compressor, 5 years on parts, and offers the option to enroll in the MrCool Care Program for a warranty extension to a limited lifetime on the compressor, there’s no reason to drag your feet. Opt for a 36k BTU 3 Zone MrCool Olympus In-Duct Heat Pump Split System with three 12k BTU Ceiling Recessed Air Handlers utilizing R454B refrigerant today to provide your living space with the consistent climate control results you’ve been dreaming of.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | M336HP23RD08C |
|---|---|
| AHRI Number | 217291698 |
| Bundle Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Bundle Cooling Capacity | 3 Ton |
| Bundle Cooling Efficiency (SEER2) | 24 |
| Heat Pump Efficiency (HSPF2) | 9.5 |
| Series | Olympus |
| Region Compatibility | Nationwide |
MULTI5-36HP230C-O Specifications:
| Model | MULTI5-36HP230C-O |
|---|---|
| UPC | 840255587808 |
| AHRI Number | 217291699 |
| Product Height (in) | 31.9 |
| Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Product Length (in) | 16.1 |
| Compressor | Inverter |
| Product Width (in) | 37.2 |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 9.5 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 35 amps |
| Weight (lbs) | 168.900000 |
| Primary Heating Capacity | 35,001 - 40,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 24 |
| Series | Olympus ES |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
DUCT-12HP-230B-O Specifications:
| Model | DUCT-12HP-230B-O |
|---|---|
| UPC | 840255587679 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DUCT-12HP-230B-O Specifications:
| Model | DUCT-12HP-230B-O |
|---|---|
| UPC | 840255587679 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DUCT-12HP-230B-O Specifications:
| Model | DUCT-12HP-230B-O |
|---|---|
| UPC | 840255587679 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
