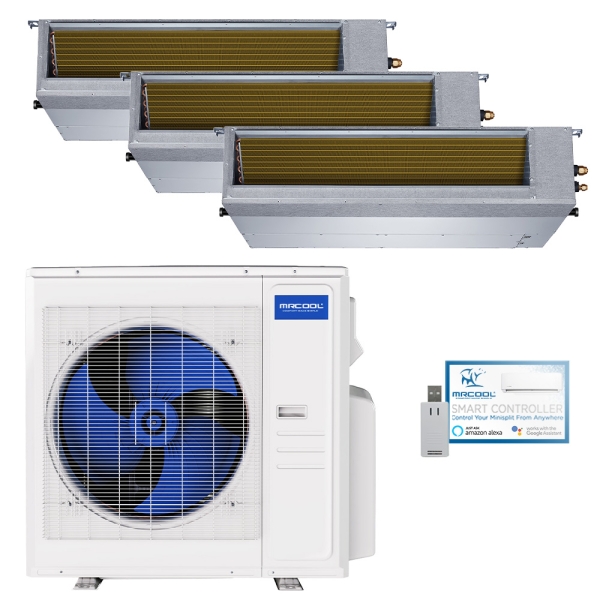

36k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 3 Zone - 9k + 9k + 18k - R454B
MRCOOL

Accessories
Description / Documents
Between the layout of your living space and the climate in your region, even some of the best central HVAC systems can fall shy of your climate control preferences. To support a system in the rooms that struggle the most during extreme outdoor temperatures, the 36k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 3 Zone - 9k + 9k + 18k - R454B is the right fit for almost any home or small commercial property. Thanks to the support of ETL listing, plus Energy Star and AHRI certifications, the MrCool Olympus Heat Pump showcases each efficiency, operational, and safety claim by passing thorough inspections from third-party agencies. Keep every zone of your living space comfortable through the year’s seasonal shifts with a 36k BTU MrCool Split System.
Producing the individual results you’re looking for, the condenser in the 36k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 3 Zone - 9k + 9k + 18k - R454B gives you access to comprehensive comfort all year long. Thanks to the integration of inverter technology, the MrCool Condenser can prioritize your comfort and the system’s efficiency simultaneously by reducing how far the temperature can drift from your set-point. The use of sustainable R454B refrigerant translates to the MrCool Heat Pump having zero ozone depletion potential and a less impactful global warming potential from outdated HVAC equipment. The perfect fit for below freezing winter and sultry triple-digit summers, the MrCool Olympus Split System offers the year-round temperature regulation performance you’re looking for.
Maintaining consistent conditions in up to three individual areas, the three ceiling recessed air handlers in the 36k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 3 Zone - 9k + 9k + 18k - R454B provides the uncompromising comfort you crave in any residential or light commercial building. Keeping your carefully curated aesthetic in mind, the 9k and 18k BTU MrCool Ceiling Recessed Air Handlers tucks away into the ceiling with a flush fit that won’t draw your eye. By granting you access to your settings from the included remote control and the wall-mounted controller, the MrCool Olympus Split System makes it easy to stay comfortable in any season.
Providing comfortable temperatures that shift with the seasons, as well as the peace of mind that comes from a warranty that has 7-year compressor coverage, 5-year parts coverage, and the option to enroll in the MrCool Care Program to elongate the coverage on the compressor to a limited lifetime, it’s easy to feel confident in your choice. Bring home a 36k BTU 3 Zone MrCool Olympus In-Duct Heat Pump Split System with one 18k BTU and two 9k BTU Ceiling Recessed Air Handlers loaded with R454B refrigerant today to make the most of every inch of your living space all year long.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | M336HP23RD02C |
|---|---|
| AHRI Number | 217291698 |
| Bundle Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Bundle Cooling Capacity | 3 Ton |
| Bundle Cooling Efficiency (SEER2) | 24 |
| Heat Pump Efficiency (HSPF2) | 9.5 |
| Series | Olympus |
| Region Compatibility | Nationwide |
MULTI5-36HP230C-O Specifications:
| Model | MULTI5-36HP230C-O |
|---|---|
| UPC | 840255587808 |
| AHRI Number | 217291699 |
| Product Height (in) | 31.9 |
| Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Product Length (in) | 16.1 |
| Compressor | Inverter |
| Product Width (in) | 37.2 |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 9.5 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 35 amps |
| Weight (lbs) | 168.900000 |
| Primary Heating Capacity | 35,001 - 40,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 24 |
| Series | Olympus ES |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
DUCT-09HP-230B-O Specifications:
| Model | DUCT-09HP-230B-O |
|---|---|
| UPC | 840255587662 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DUCT-09HP-230B-O Specifications:
| Model | DUCT-09HP-230B-O |
|---|---|
| UPC | 840255587662 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DUCT-18HP-230B-O Specifications:
| Model | DUCT-18HP-230B-O |
|---|---|
| UPC | 840255587686 |
| Product Height (in) | 8.3 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 26.5 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 34.7 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 54.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
