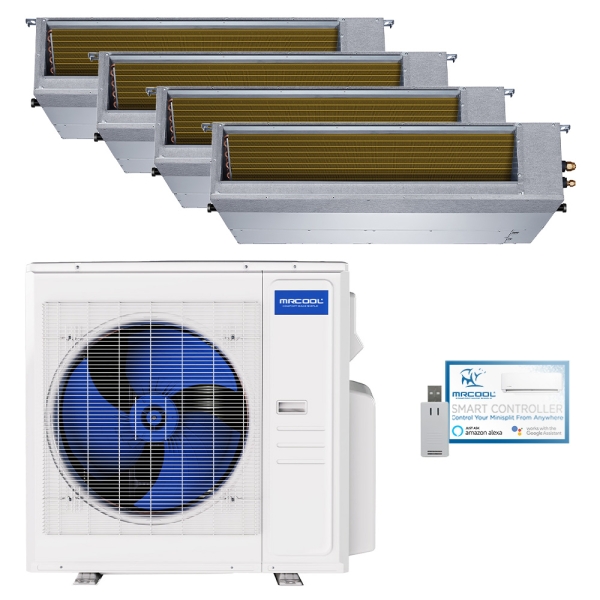

36k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 4 Zone - 9k + 9k + 9k + 9k - R454B
MRCOOL

Accessories
Description / Documents
Don’t let any part of your building suffer from insufficient climate control when seasonal conditions make it difficult. For a powerful home heating and cooling solution that provides customized results in multiple rooms at once, the 36k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 4 Zone - 9k + 9k + 9k + 9k - R454B is exactly what you’ve been hoping for. Earning ETL listing on top of Energy Star and AHRI certifications, the MrCool Olympus Heat Pump validates every efficiency, operational, and safety claim by passing intensive evaluations from third-party agencies. Make the most of every inch of space in your home or light commercial property with a 36k BTU MrCool Split System.
With the power needed to handle up to four unique air handlers, the condenser in the 36k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 4 Zone - 9k + 9k + 9k + 9k - R454B won’t fall shy of your preferences. By using inverter technology, the MrCool Condenser keeps temperatures closer to your set-point through the day for top-tier efficiency and comfort. With sustainable R454B refrigerant, the MrCool Heat Pump provides powerful performance with zero ozone depletion potential and a smaller global warming potential than older refrigerant models. Whether you’re dealing with triple digit heat or below freezing cold, the MrCool Olympus Split System is the perfect solution for your living space.
Providing the results you want in multiple distinct areas, the four ceiling recessed air handlers in the 36k BTU 24 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 4 Zone - 9k + 9k + 9k + 9k - R454B produce the year-round temperatures you crave. Sporting a design that hides away in the ceiling, the 9k BTU MrCool Ceiling Recessed Air Handlers strikes a delicate balance that optimizes your ambiance without derailing your carefully curated aesthetic. Between the included remote and wall-mounted controller giving you easy access to your settings, the MrCool Olympus Split System ensures the conditions you want in each room during any season.
There’s no reason to resist when you get more than just the performance you crave. With the support of a warranty that covers 7 years on the compressor, 5 years on parts, and extends compressor coverage to a limited lifetime when you enroll in the MrCool Care Program, the path to consistency is clear. Bring home a 36k BTU 4 Zone MrCool Olympus In-Duct Heat Pump Split System with four 9k BTU Ceiling Recessed Air Handlers equipped with R454B refrigerant today and craft a unique indoor ambiance in up to four distinct rooms all year long.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | M436HP23RD00C |
|---|---|
| AHRI Number | 217291698 |
| Bundle Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Bundle Cooling Capacity | 3 Ton |
| Bundle Cooling Efficiency (SEER2) | 24 |
| Heat Pump Efficiency (HSPF2) | 9.5 |
| Series | Olympus |
| Region Compatibility | Nationwide |
MULTI5-36HP230C-O Specifications:
| Model | MULTI5-36HP230C-O |
|---|---|
| UPC | 840255587808 |
| AHRI Number | 217291699 |
| Product Height (in) | 31.9 |
| Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Product Length (in) | 16.1 |
| Compressor | Inverter |
| Product Width (in) | 37.2 |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 9.5 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 35 amps |
| Weight (lbs) | 168.900000 |
| Primary Heating Capacity | 35,001 - 40,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 24 |
| Series | Olympus ES |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
DUCT-09HP-230B-O Specifications:
| Model | DUCT-09HP-230B-O |
|---|---|
| UPC | 840255587662 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DUCT-09HP-230B-O Specifications:
| Model | DUCT-09HP-230B-O |
|---|---|
| UPC | 840255587662 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DUCT-09HP-230B-O Specifications:
| Model | DUCT-09HP-230B-O |
|---|---|
| UPC | 840255587662 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DUCT-09HP-230B-O Specifications:
| Model | DUCT-09HP-230B-O |
|---|---|
| UPC | 840255587662 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
