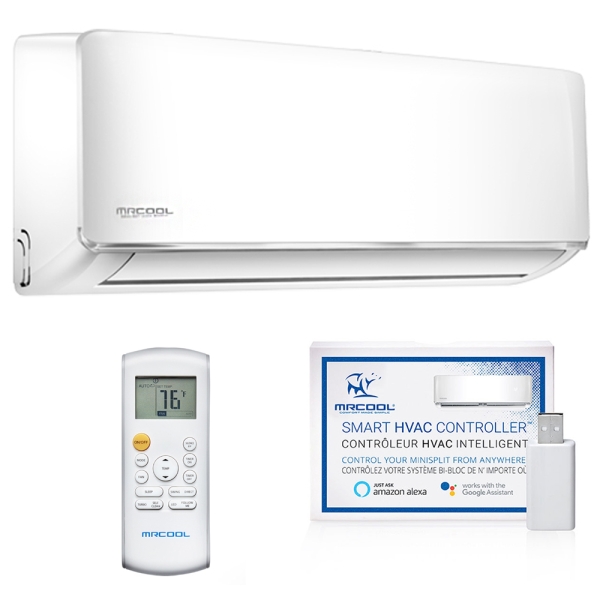

36k BTU MrCool DIY Ductless Wall Mounted Air Handler - 3rd Generation

Item
HA20867
Model
DIY-36-HP-WMAH-230B
Condition
New


In stock

Ships Within 1-2 Business Days

Get $100 Cash Back on Your Qualifying Purchase

  1. Spend over $1000 on heating and air equipment.
  2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
  3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
  4. Get a check mailed to you for $100.

Limited Time Offer. Act Now!

Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.


Get everything right and save time

Contact an expert now.

What's included

The 36k BTU MrCool DIY 3rd Gen Ductless Air Handler is the answer for handy homeowners. Paired with a DIY condenser, this unit produces 32k BTUs that can heat, cool, or dry an area up to 1,500 square feet! Which means that no matter the season, you can stay comfortable.

Not convinced? A 36k BTU MrCool DIY 3rd Gen Ductless Air Handler comes with a variety of smart features that provide you with real options on how to operate your unit. If you are looking for a system you can set and not readjust, you can use the AUTO mode, which automatically cools, heats, or runs the fan based on a temperature you set and the current temperature of the space.

Maybe you would prefer to save money and energy while you sleep each night using the SLEEP mode. In sleep mode, the 36k BTU MrCool DIY 3rd Gen Ductless Air Handler will increase the temperature when cooling or decrease the temperature when heating by 2°F for two hours to ensure you stay comfortable as you fall asleep. It will then run at the more moderate temperature for six hours before returning to its normal operation.

If you want to run your unit for a certain time each day, use the TIMER feature to limit your energy usage and save on your electricity bill. There is also the DRY mode to both regulate your home's temperature and improve dehumidification simultaneously.

And you'll love that the 36k BTU MrCool DIY 3rd Gen Ductless Air Handler is easy to maintain and keep in optimal condition. This indoor mini split wall unit can alert you when it is leaking refrigerant or when it needs a filter cleaning or replacement. Keeping your mini split filter clean is the biggest thing you can do to guarantee a long operating life.

Want a fresher smell too? This 36k BTU MrCool DIY 3rd Gen Ductless Air Handler has an Anti-Mildew Function to keep your home smelling clean by keeping your unit mildew free. To accomplish this, the air handler continues to run a low fan for 10 minutes after shutting off to ensure the unit stays dry.

With this smart system, you don't have to reset the horizontal louver to ensure your home is evenly cooled or heated. This air handler saves where you set the louver and automatically returns to that position once it is turned back on.

In the unfortunate event of a power outage or blackout, a 36k BTU MrCool DIY 3rd Gen Ductless Air Handler will automatically restart when power returns to quickly return your home to a comfortable temperature. Very convenient!

Are you concerned about the noise of this indoor HVAC unit? No need to worry! This model runs smoothly and efficiently without interrupting your daily activities. You can also mute alerts if you wish to keep interruptions at a minimum, though the alerts will continue to display on your unit.

Operate your 36k BTU MrCool DIY 3rd Gen Ductless Air Handler wirelessly straight from the box. Compatible devices include Google Assistant, Amazon Alexa, and Apple and Android devices. The unit also comes with a remote that can be used to control your heat and air.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

More Information
Model DIY-36-HP-WMAH-230B
UPC 810512033492
Product Height (in) 14.25
Configuration Wall Mounted
Product Length (in) 11.1
Air Flow Direction Horizontal
Product Width (in) 49.57
Blower Motor Variable Speed
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 3/8 inch
Max Overcurrent Protection 35 amps
Weight (lbs) 70.990000
Series DIY
Special Features WiFi Capable
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
California Residents see Prop 65 WARNING
  1. 3
    Cross Flow Fan for MrCool Ductless Wall Mounted Air Handler 36k

    Price:

  2. 6
    Display Box Subassembly for MrCool Ductless Wall Mounted Air Handler

    Price:

  3. 1
    Bearing Holder for MrCool Ductless Wall Mounted Air Handler

    Price:

  4. 5
    Display Box Subassembly for MrCool Ductless Wall Mounted Air Handler

    Price:

  5. 7
    Electronic Control Box Subassembly for MrCool Wall Mounted Air Handler

    Price:

  6. 12
    Room Temperature Sensor for MrCool Ductless Wall Mounted Air Handler

    Price:

  7. 10
    Quick Connecter for MrCool Ductless Heat Pump Condenser DIY Series

    Price:

  8. 9
    Quick Connecter for MrCool Ductless Heat Pump Condenser DIY Series

    Price:

  9. 13
    Stepper Motor for MrCool Ductless Wall Mounted Air Handler

    Price:

  10. 2
    Blower Motor for MrCool Ductless Wall Mounted Air Handler 18k 24k & 36k

    Price:

  11. 4
    Display Board Subassembly for MrCool Ductless Wall Mounted Air Handler

    Price:

  12. 8
    Pipe Temperature Sensor for MrCool Ductless Wall Mounted Air Handler

    Price:

  13. 11
    Remote controller for MrCool Ductless Wall Mounted Air Handler

    Price:
