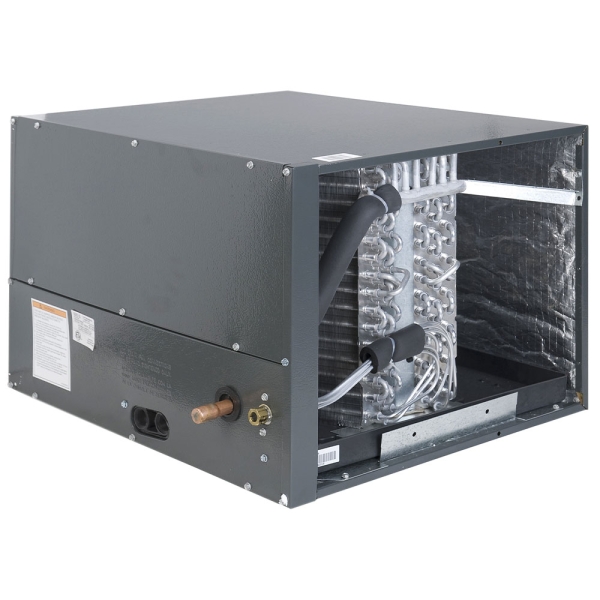

4 to 5 Ton Goodman Evaporator Coil - Horizontal - 24.5" Cabinet

Item: HA10493
Model: CHPF4860D6
Condition: New

4 to 5 Ton Goodman Evaporator Coil - Horizontal - 24.5" Cabinet Zoom

Photo Gallery

If you like dependable HVAC coils, you will love the Goodman CHPF48 4.0-5.0 Ton R-410A Horizontal Painted Cased Coil with 24.5 inch Cabinet. Designed for Goodman brand heat pumps and air conditioners, the CHPF48 uses corrugated fins and grooved tubing to ensure long term corrosion resistance and effective heat transfer capability. It is both certified with the AHRI and ETL listed.

Availability: In stock

$575.00
Ingram Financing


Ships Within 1-2 Business Days

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman
Up to 30% Off - Call for Info

What's Included

What customers are saying...



Overview

If you like dependable HVAC coils, you will love the Goodman CHPF48 4.0-5.0 Ton R-410A Horizontal Painted Cased Coil with 24.5 inch Cabinet. Designed for Goodman brand heat pumps and air conditioners, the CHPF48 uses corrugated fins and grooved tubing to ensure long term corrosion resistance and effective heat transfer capability. It is both certified with the AHRI and ETL listed.
Goodman HA10493

Manufacturer Highlights

The Goodman® brand CHPF Coils with Flowraters are made for use with split-system air conditioners and heat pumps. Reliable components and quality manufacturing make these coils a perfect choice for the value minded consumer.

Standard Features

  • Rust-resistant, high-temperature thermoplastic drain pans feature a low water retention design
  • Check flowrater expansion device for heat pump or cooling only applications
  • Field-installed Thermal Expansion Valve Kits are available
  • All aluminum tubing and wave pattern aluminum fin coils

Cased Coil Cabinet Features

  • Foil-face insulation
  • Galvanized leather-grain finish and high-quality post-paint models are available
  • Split-seam front-excellent access

Accessories

  • Field-Installed Expansion Valve Kits (TX3N2 or TX5N2)
  • Field-Installed High-Temperature Drain Pan Kits; maximum temperature rating is 400ºF

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model CHPF4860D6
UPC 663051451827
Air Flow Direction Horizontal
Cooling Capacity 4 Ton, 5 Ton
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Product Height (in) 24.5
Product Length (in) 21.125
Product Width (in) 26
Suction Line Size 7/8 inch
Warranty 10 Year Parts
Weight (lbs) 77.0000
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
I just purchased 4 TON Mr. Cool condenser, Goodman 4 to 5 Ton Hor.Coil and correct TXV, and connected it to my existing 70K BTU heater. After lines were connected and system turned on, the tech did not like the flow rate (based on feel and sound). He said I run the chance of liquid slugging and shortening the life of the new condenser. The hor. heater unit is a Goodman GSM950703BXA with a direct-connect, 24 X 24 inch return plenum in the ceiling. It uses a 3/4 line set 22 feet long. Ducts with dampers are: qty 1, 12 in, qty 2, 10 in, qty 2, 8 in, and qty 5, 6 in. through 2X2X2 plenum. House is 1950 sqft with 10 ft ceilings.

Do I need to worry? What solutions in order of cost/effort to resolve this issue if it really is a concern? Can I upgrade the blower motor? We are satisfied with the heaters performance as-is.

Thank you.

Alden
408-640-6111
This model says that it's suitable for R22 or R410A. Since its been said that they discontinued R22, will it be okay to use the R410A?
