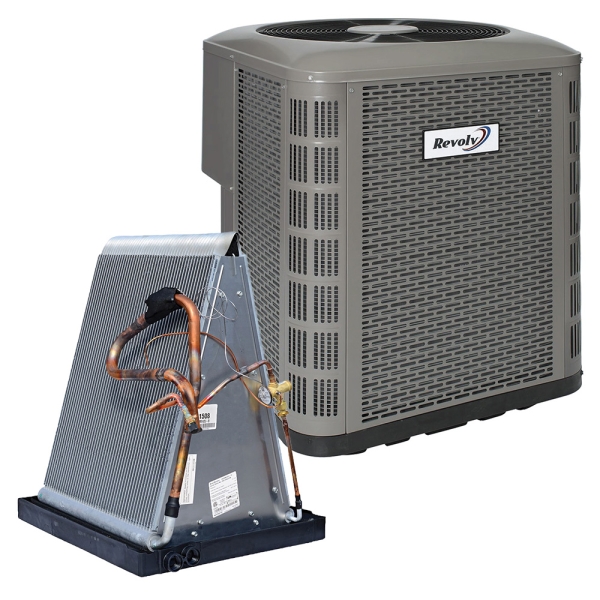

The sweltering summer sun beating down on your modular or manufactured housing shouldn’t lead to uncomfortable temperatures within its walls. If you have an older system that struggles to keep you cool, turn to the 4 Ton 13.4 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B for a solution that won’t leave you wanting. Supported by both ETL listing and AHRI certification, the Revolv AC & Coil System passes thorough third-party testing to prove the legitimacy of every safety and operational claim. Make the most of your 2000 to 2400 square foot home all summer long with an upgrade to a 4 Ton Revolv System.

This Bundle Includes:

4 Ton Revolv Mobile Home Evaporator Coil for AC - R454b
Item: HA26071Model: C85DAMX48U-B Qty: 1
Accessories
Description / Documents

The sweltering summer sun beating down on your modular or manufactured housing shouldn’t lead to uncomfortable temperatures within its walls. If you have an older system that struggles to keep you cool, turn to the 4 Ton 13.4 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B for a solution that won’t leave you wanting. Supported by both ETL listing and AHRI certification, the Revolv AC & Coil System passes thorough third-party testing to prove the legitimacy of every safety and operational claim. Make the most of your 2000 to 2400 square foot home all summer long with an upgrade to a 4 Ton Revolv System.

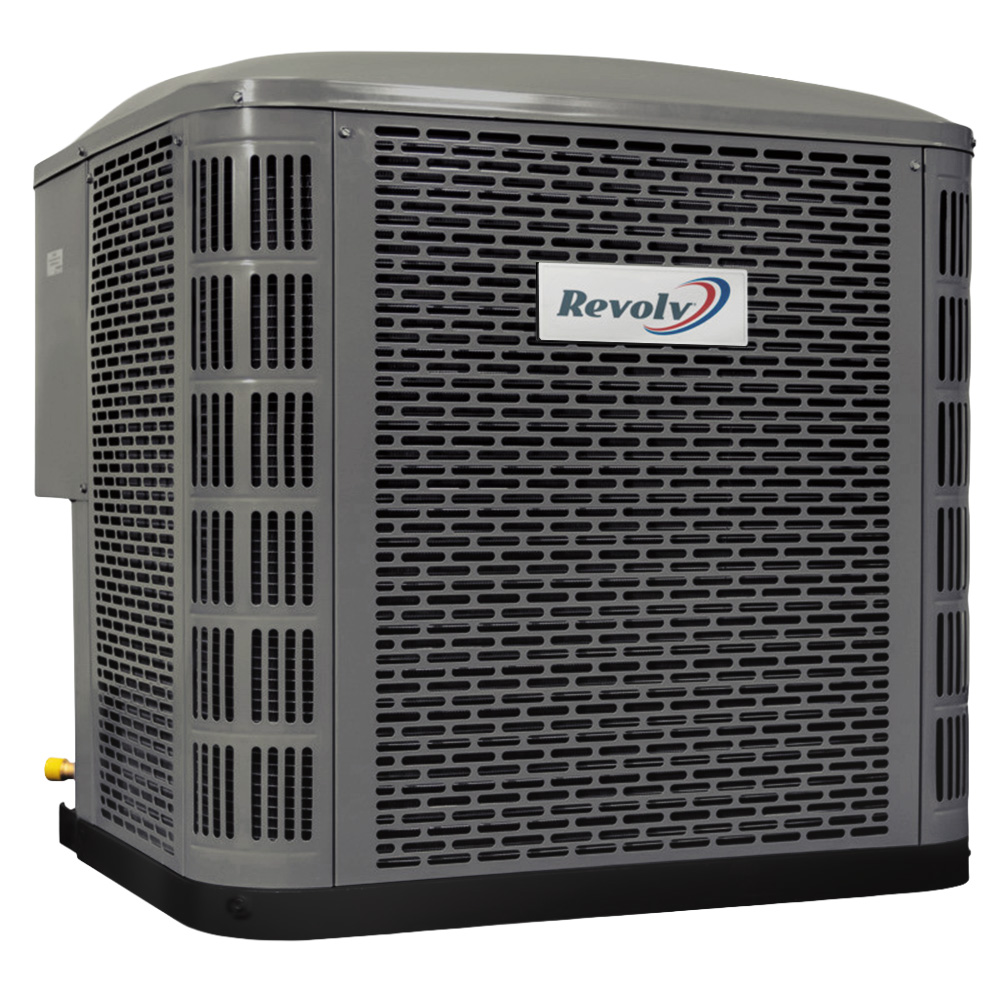

Keeping your living space supplied with brisk airflow, the condenser in the 4 Ton 13.4 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B guarantees the cool comfort you crave in toasty outdoor temperatures. The galvanized steel construction of the cabinet is coated with a powder-paint treatment, rounding any sharp edges and helping the Revolv AC pass a 950-hour salt-spray test that verifies its resilience against fading, chipping, scratching, and corrosion. Thanks to the high-quality scroll compressor, permanently lubricated PSC motor, and base pan, operational vibrations are minimized to maintain quiet functionality. Easy access to the internals, such as the compressor and controls, plus a removable top grille assembly, give the Revolv AC System everything it needs and more to guarantee the top-tier temperature control you want to cool down your home this summer.

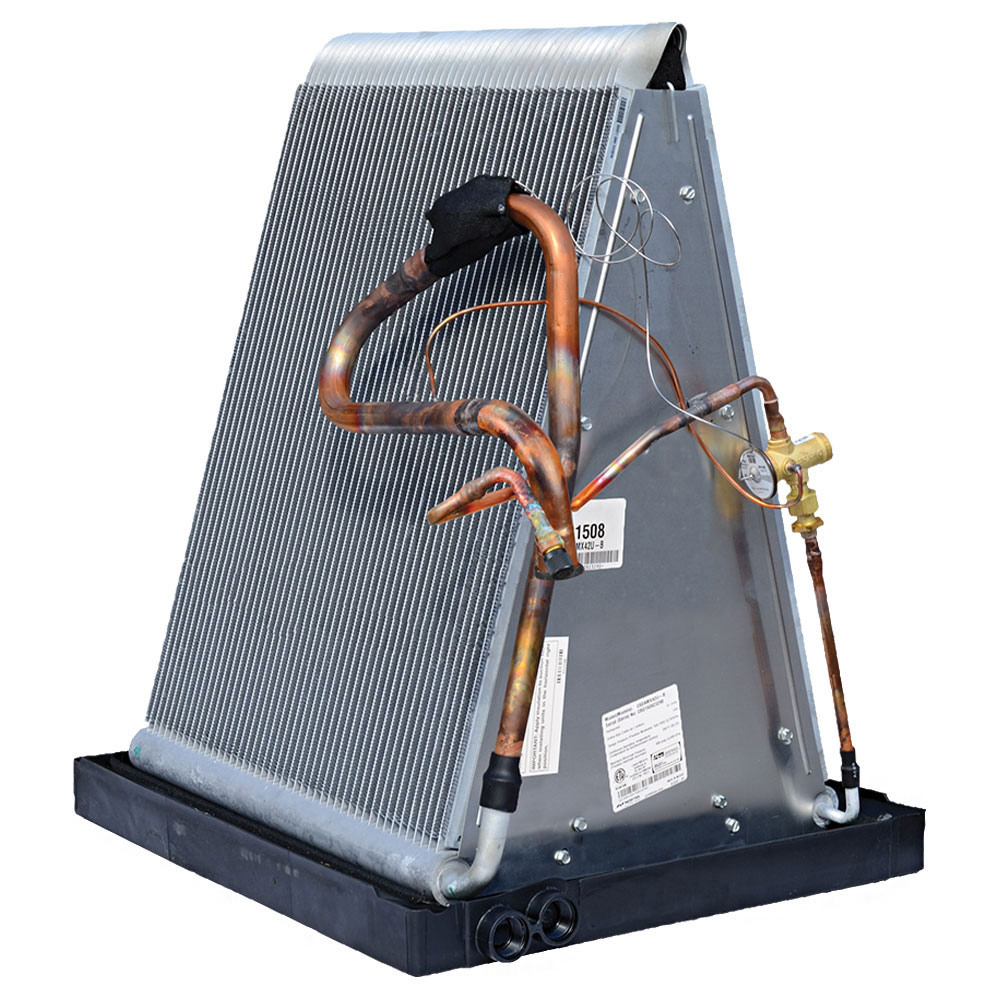

Removing the unwanted heat from inside your home, the evaporator coil in the 4 Ton 13.4 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B offers a rejuvenating break from the heat. The use of R454B refrigerant lets the Revolv Coil enjoy zero ozone depletion potential and a reduced GWP (global warming potential), offering an eco-friendly improvement in over older refrigerant options. The included TXV metering device adjusts the flow and amount of refrigerant to best maintain superheat for safe, sustainable results. Thanks to the inclusion of down turn braze connections that sport a leak-free design, the Revolv AC & Coil System makes sure your family can create the exact ambiance they want without worry.

Making your home’s indoor climate compatible with your wants doesn’t have to be difficult, so why stick with an old system that can’t handle the task? Choose the 4 Ton Revolv Mobile Home Air Conditioner & Coil System equipped with R454B refrigerant today to ensure the crisp, cool temperatures needed to combat the height of summer’s heat for years to come.

Customer Reviews / Q&A
Specifications

System Overview

Model HSA4MD5M1SN48K,C85DAMX48U-B
AHRI Number 216044456
Bundle Avg Coverage Area 2,000 - 2,400 Sq Ft
Bundle Cooling Capacity 4 Ton
Bundle Cooling Efficiency (SEER2) 13.4
Region Compatibility North

HSA4MD5M1SN48K Specifications:

Model HSA4MD5M1SN48K
UPC 663132533459
Product Height (in) 37
Avg Coverage Area 2,000 - 2,400 Sq Ft
Product Length (in) 31.75
Compressor Single Stage
Product Width (in) 31.75
Cooling Capacity 4 Ton
Electrical Phase 1-Phase
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 40 amps
Weight (lbs) 206.000000
Refrigerant R-454b
Cooling Efficiency (SEER2) 13.4
Suction Line Size 7/8 inch
System Application Type Mobile Home Systems
Voltage 240
Warranty 5 Year Parts, 10 Year Compressor
Region Compatibility North

C85DAMX48U-B Specifications:

Model C85DAMX48U-B
UPC 663132533725
Product Height (in) 25
Air Flow Direction Vertical
Product Length (in) 19.5
Cooling Capacity 4 Ton
Product Width (in) 18.125
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Weight (lbs) 50.000000
Refrigerant R-454b
Suction Line Size 7/8 inch
Warranty 5 Year
