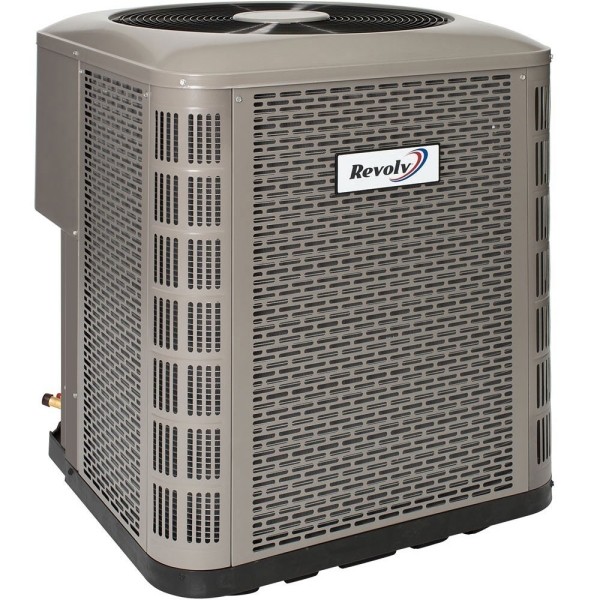

4 Ton 13.4 SEER2 Revolv Mobile Home Air Conditioner Condenser - Quick Connect
Shop All REVOLV

This product has been discontinued.
Recommended Alternative:
Accessories
Description / Documents
Are you fed up with the search to find the cool zones in your mobile home? Embrace consistent comfort with the 4 Ton 13 SEER2 Revolv Mobile Home Air Conditioner Condenser. Garnering a SEER2 rating of 13 and built to handle areas ranging from 2000 to 2400 square feet, this Revolv AC provides quick, effective climate control that diffuses into every corner of your motorhome, promising reliable comfort regardless where in your home you want to unwind. Fully charged for line set extensions of up to 15 feet without the need for brazing or evacuation, you reap the rewards of a streamlined installation process including saved time and money during setup.
Engineered for longevity, the 4 Ton 13 SEER2 Revolv Mobile Home Air Conditioner Condenser utilizes a diverse range of attributes to protect the internal components from even the harshest weather conditions. The galvanized steel cabinet is coated in a powder paint finish that removes sharp edges while countering corrosion, fading, chipping, and scratching, further elongating the life expectancy of the Revolv Condenser. After being subjected to ASTM standard B117 testing, this Revolv AC came out on top of a demanding 950-hour salt-spray test. The removable top grille assembly keeps top-down servicing smooth by eliminating the need to disconnect fan motor leads while simultaneously improving airflow. Coupled with the durable, lighter-than-steel composite base pan, you reap the rewards of both corrosion resistance and quieter operation, putting an end to the annoyance of loud, disruptive HVAC. Outfitted with a powder-coated wire guard and mesh hail guard, you can breathe easy with the knowledge that this Revolv Air Conditioner is both resistant to rust and effectively shielded against external factors like hail, lawnmowers, sports equipment, and more.
The internal components of this 4 Ton 13 SEER2 Revolv Mobile Home Air Conditioner Condenser follow suit with equally impressive credentials. The permanently lubricated, heavy-duty PSC motor is safeguarded from rain and snow, minimizing the need for frequent servicing while ensuring both resilience and hushed operation. Safety features such as a high-pressure switch that guards against abnormal system pressures remove the need for manual investigation while the auto-reset function further reduces a common cause for frequent maintenance. Supplied with a factory-installed liquid line filter drier, this Revolv AC goes above and beyond to decrease setup complications. With all this working in tandem with all-aluminum coils and easy access to controls and the compressor, you can rest assured that this Revolv Air Conditioner delivers dependable results that will instantly level up your quality of life.
Customer Reviews / Q&A
Specifications
System Overview
| Model | RSA3QD4M1SN48 |
|---|---|
| UPC | 663132448609 |
| Product Height (in) | 34.75 |
| Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Product Length (in) | 35.5 |
| Compressor | Single Stage |
| Product Width (in) | 35.5 |
| Cooling Capacity | 4 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 40 amps |
| Weight (lbs) | 179.000000 |
| Refrigerant | R-410a |
| Cooling Efficiency (SEER2) | 13.4 |
| Series | AccuCharge |
| Suction Line Size | 7/8 inch |
| System Application Type | Mobile Home Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 10 Year Compressor |
| Region Compatibility | North |
