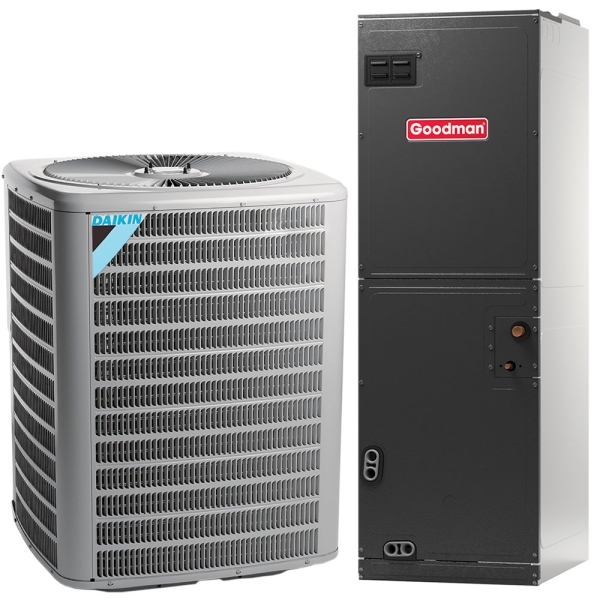

4 Ton 13 SEER Multi Speed Daikin Commercial Central Air Conditioner Split System - Multiposition

Item: HA11706
Models: DX13SA0483 , ARUF49D14
Condition: New
In business, it's best to be cool and quiet, and that's what you get with Daikin's 4 Ton 13 SEER Multi-Speed Air Conditioner Central Split System. The DX13SA0483 commercial air conditioner is a 3-phase unit that features an energy efficient compressor, and uses chlorine-free R-410A refrigerant. With features like a louvered sound control top design, this unit achieves extremely quiet operation. In this system, the DX13SA0483 is paired with the ARUF49D14 SmartFrame air handler, a system suitable for horizontal, upflow, or downflow installation.

Availability: Out of stock

As low as: $2,409.04

Price as configured: $2,409.04

Call for availability

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

Overview

In business, it's best to be cool and quiet, and that's what you get with Daikin's 4 Ton 13 SEER Multi-Speed Air Conditioner Central Split System. The DX13SA0483 commercial air conditioner is a 3-phase unit that features an energy efficient compressor, and uses chlorine-free R-410A refrigerant. With features like a louvered sound control top design, this unit achieves extremely quiet operation. In this system, the DX13SA0483 is paired with the ARUF49D14 SmartFrame air handler, a system suitable for horizontal, upflow, or downflow installation.

Goodman 4 Ton Multi Speed Air Handler - ARUF49D14

Goodman HA10316

Manufacturer Highlights

The Goodman® brand ARUF Series Air Handler offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Suitable for use with the refrigerants R-410A and R-22
  • All-aluminum evaporator coil
  • Check flowrater expansion device for cooling-only and heat pump applications
  • Direct-drive, multi-speed motor
  • Transformer and blower time-delay on all units
  • AHRI Certified; ETL Listed

Cabinet Features

  • Rust-resistant, fully insulated steel cabinet
  • Galvanized, leather grain-embossed finish
  • Attractive Architectural Gray painted front panels
  • Built-in coil has horizontal, vertical, and downflow drain pans with secondary drain connections
  • Built-in filter rack for 1" filter (filter not included)
  • Power supply entry at top; low-voltage entry on left side and top

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model DX13SA0483,ARUF49D14
UPC 663051508453
AHRI Number 8171750
Bundle Avg Coverage Area 2,000 - 2,400 Sq Ft
Bundle Cooling Capacity 4 Ton
Bundle Cooling Efficiency 13 SEER
EER 11
Region Compatibility Nationwide
California Residents see Prop 65 WARNING

DX13SA0483 Specifications:

Model DX13SA0483
UPC 663051508453
Avg Coverage Area 2,000 - 2,400 Sq Ft
Compressor Single Stage
Cooling Capacity 4 Ton
Electrical Phase 3-Phase
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 30 amps
Product Height (in) 38
Product Length (in) 30
Product Width (in) 30
Cooling Efficiency 13 SEER
Suction Line Size 1 1/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 188.0000
Region Compatibility North

ARUF49D14 Specifications:

Model ARUF49D14
UPC 663051513396
Air Flow Direction Horizontal, Vertical
Configuration Floor Mounted
Blower Motor Multi Speed
Cooling Capacity 4 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 20 kW
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Product Height (in) 53.438
Product Length (in) 21
Product Width (in) 24.5
Suction Line Size 7/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts
Weight (lbs) 145.0000
