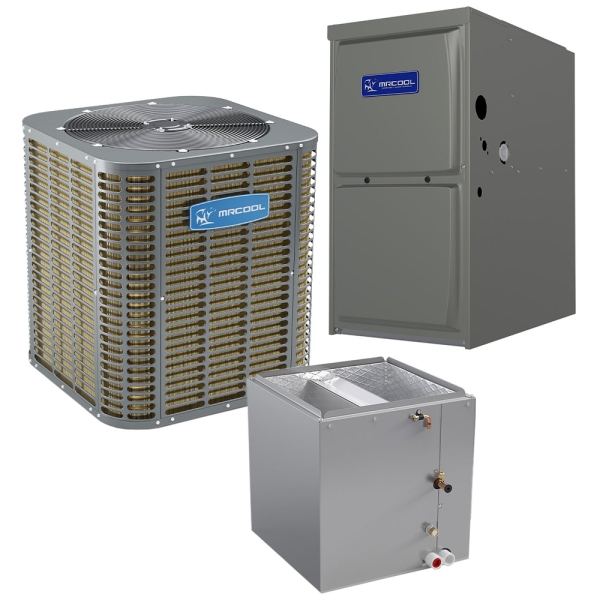

4 Ton 14.3 SEER2 110K BTU 96% AFUE MrCool Mixed Central Heat Pump & Gas Split System - Vertical
Get $100 Cash Back on Your Qualifying Purchase
- Spend over $1000 on heating and air equipment.
- Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
- Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
- Get a check mailed to you for $100.
Limited Time Offer. Act Now!
Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.
Contact an expert now.
4 Ton MrCool Signature Evaporator Coil - Vertical - 21" Cabinet
Manufacturer Highlights
This is a brand new 4 ton, R410A & R22 refrigerant, Upflow cased Evaporator Coil. This efficient and durable coil is the solution for heat pumps and air conditioners for fast, flexible application. This Signature Series coil, when appropriately paired with a MRCOOL Signature Series condenser and gas furnace or modular blower, can achieve efficiency ratings of up to 16 SEER.
Standard Features
- Interlocking door assemblies and snug line sealgrommets to minimize air leakage
- All units UL Listed and AHRI Certified
- R22 & R410A compatible
- Microban® antimicrobial additive in the drain pan to resist mold and mildew growth
- Foil-face insulation for easy cleaning
- All drain pans are compatible with UV lights
- Mobile home approved
- Superior service access to components, withtubing located at door split and foil-face insulation
- 10-Year Parts Limited Warranty
Model | HHP15048,MGM96SE110C5XA,MCVP48CNPA |
---|---|
UPC | 663051672116 |
Gas Furnace Efficiency | 96+% |
Bundle Avg Coverage Area | 1,750 - 2,100 Sq Ft |
Bundle Cooling Capacity | 4 Ton |
Bundle Cooling Efficiency (SEER2) | 14.3 |
EER2 | 11.7 |
Heat Pump Efficiency (HSPF) | 7.5 |
Region Compatibility | Nationwide |
California Residents | see Prop 65 WARNING |
HHP15048 Specifications:
Model | HHP15048 |
---|---|
UPC | 840255553872 |
Product Height (in) | 32.875 |
Avg Coverage Area | 2,000 - 2,400 Sq Ft |
Product Length (in) | 29.1428 |
Compressor | Single Stage |
Product Width (in) | 29.1428 |
Cooling Capacity | 4 Ton |
Electrical Phase | 1-Phase |
Heat Pump Efficiency (HSPF) | 7.5 |
Line Set Connection Type | Sweat |
Liquid Line Size | 3/8 inch |
Max Overcurrent Protection | 45 amps |
Weight (lbs) | 207.000000 |
Primary Heating Capacity | 45,001 - 50,000 BTU |
Refrigerant | R-410a |
Cooling Efficiency (SEER2) | 14.3 SEER2 |
Series | ProDirect |
Suction Line Size | 7/8 inch |
System Application Type | Central Split Systems |
Voltage | 240 |
Warranty | 10 Year Parts, 10 Year Compressor |
Region Compatibility | Nationwide |
MGM96SE110C5XA Specifications:
Model | MGM96SE110C5XA |
---|---|
UPC | 840255553339 |
AHRI Number | 209832543 |
Product Height (in) | 33 |
Gas Furnace Efficiency | 96+% |
Product Length (in) | 29 |
Configuration | Floor Mounted |
Product Width (in) | 21.5 |
Air Flow Direction | Horizontal, Upflow |
Avg Coverage Area | 2,000 - 2,400 Sq Ft |
Blower Motor | High Efficiency |
Cooling Compatibility (up to) | 5 Ton |
Electrical Phase | 1-Phase |
Exhaust Pipe | PVC |
Fuel Source | Natural Gas |
Gas Valve | Single Stage |
Max Overcurrent Protection | 15 amps |
Weight (lbs) | 164.000000 |
Primary Heating Capacity | 105,001 - 110,000 BTU |
Series | Signature |
System Application Type | Central Split Systems |
Vent Connection | 2 inches, 3 inches |
Voltage | 120 |
Warranty | 10 Year Parts, Lifetime Heat Exchanger |
MCVP48CNPA Specifications:
Model | MCVP48CNPA |
---|---|
Product Height (in) | 27.5 |
Air Flow Direction | Upflow |
Product Length (in) | 21 |
Cooling Capacity | 4 Ton |
Product Width (in) | 21 |
Liquid Line Size | 3/8 inch |
Weight (lbs) | 60.000000 |
Refrigerant | R-410a |
Series | Signature |
Suction Line Size | 7/8 inch |
Warranty | 10 Year Parts |
