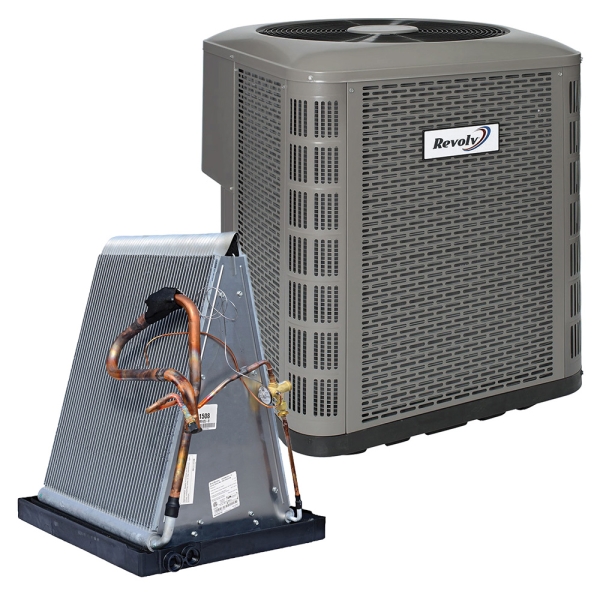

Keeping your home comfortable when you live in manufactured housing doesn’t have to be a struggle. Options like the 4 Ton 14.3 SEER2 Revolv Mobile Home Heat Pump & Coil System - R454B give you the comprehensive coverage you need to enjoy your ideal indoor ambiance in every season. Backed by both AHRI certification and ETL listing, the Revolv Heat Pump passes thorough third-party testing to highlight the legitimacy of every safety and performance claim. For your 2000 to 2400 square foot mobile home, ensure top-tier comfort in every nook and cranny with an upgrade to a 4 Ton Revolv System.

This Bundle Includes:

Accessories
Description / Documents

Keeping your home comfortable when you live in manufactured housing doesn’t have to be a struggle. Options like the 4 Ton 14.3 SEER2 Revolv Mobile Home Heat Pump & Coil System - R454B give you the comprehensive coverage you need to enjoy your ideal indoor ambiance in every season. Backed by both AHRI certification and ETL listing, the Revolv Heat Pump passes thorough third-party testing to highlight the legitimacy of every safety and performance claim. For your 2000 to 2400 square foot mobile home, ensure top-tier comfort in every nook and cranny with an upgrade to a 4 Ton Revolv System.

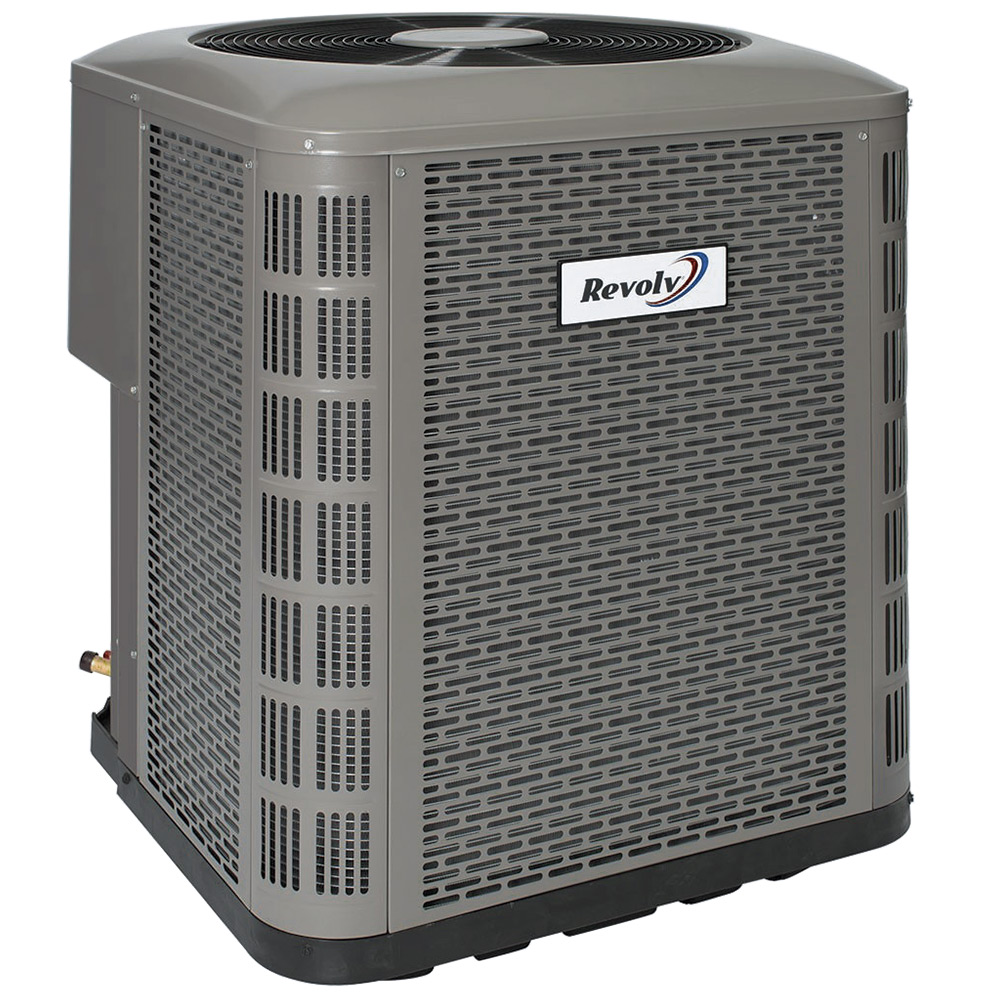

Producing the powerful results you crave, the condenser in the 4 Ton 14.3 SEER2 Revolv Mobile Home Heat Pump & Coil System - R454B sports a design that takes advantage of a range of impressive features chosen to level up your quality of life. With a cabinet made of galvanized steel and coated with a powder-paint finish, the Revolv Heat Pump ensures durability by earning a 950-hour salt-spray approval. A patented hot gas bypass defrost system effectively melts any ice that forms on the coil during winter before the heating cycle can start, protecting the unit from unnecessary strain. The base pan is light and sturdy, the composite material a perfect complement to the corrosion-resistant, all-aluminum condenser coil. The hot gas muffler decreases vibration during normal function, effectively minimizing unnecessary noise during cycling. With the inclusion of a crankcase heater, suction accumulator, and a supply of R454B refrigerant that can stretch 20 feet of line set, the Revolv Mobile Home System has everything you need and more to guarantee your seasonal preferences are catered to.

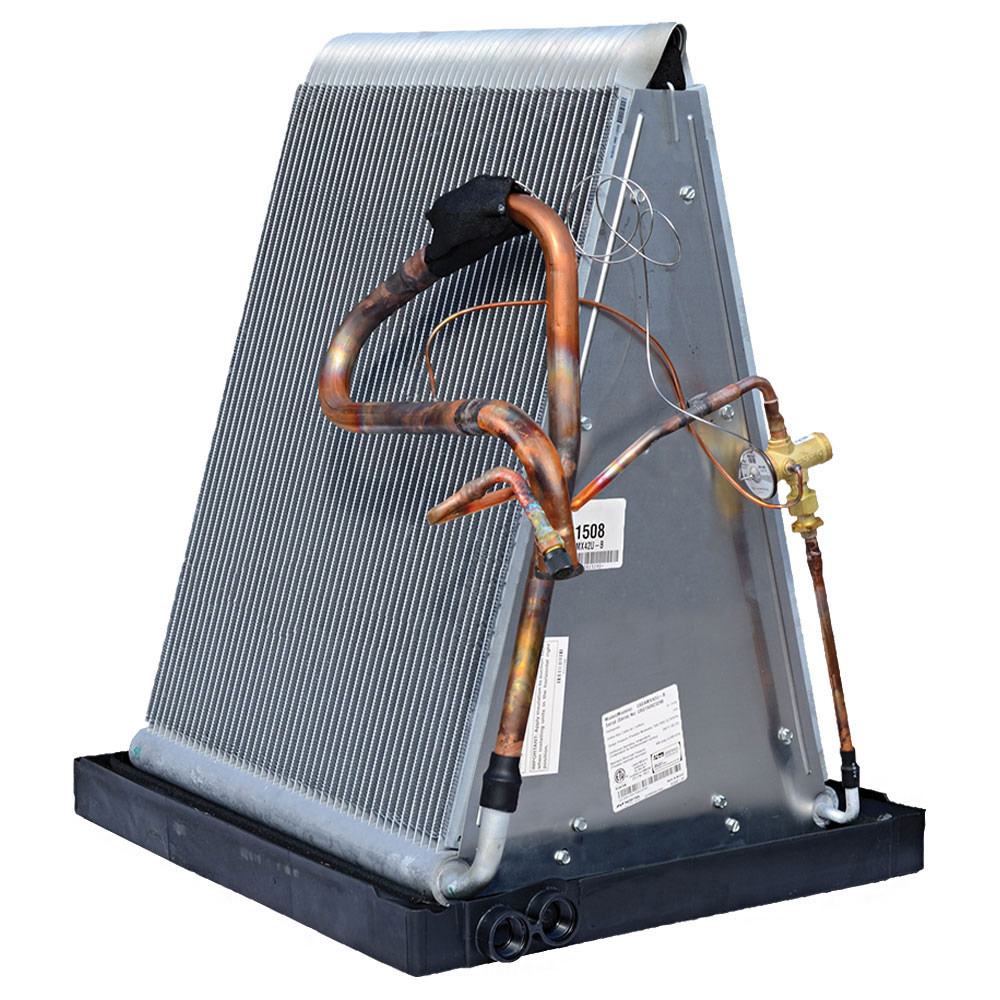

By keeping installation and maintenance efforts easy, the evaporator coil in the 4 Ton 14.3 SEER2 Revolv Mobile Home Heat Pump & Coil System - R454B saves you both time and money on the processes to extend the system’s benefits even further. Working with R454B refrigerant means the Revolv Coil sports zero ozone depletion potential and a smaller GWP (global warming potential) than any of the older refrigerant standards. The integrated TXV metering device adjusts the refrigerant automatically, keeping a proper state of superheat for optimal performance. Offering leak-free functionality with the addition of down turn braze connections, the Revolv Heat Pump & Coil System won’t fall short of your wildest expectations.

HVAC solutions for modular and manufactured housing are more robust than they’ve been in the past, so why continue to tolerate an inadequate climate control solution another moment? Acquire the 4 Ton Revolv Mobile Home Heat Pump & Coil System running on R454B refrigerant today and give your loved ones the uncompromising climate control results they deserve.

Customer Reviews / Q&A
Specifications

System Overview

Model HSH4ME5M1SP48K,C85DAMX4960U-B
AHRI Number 216955284
Bundle Avg Coverage Area 2,000 - 2,400 Sq Ft
Bundle Cooling Capacity 4 Ton
Bundle Cooling Efficiency (SEER2) 14.3
EER2 11
Heat Pump Efficiency (HSPF2) 7.5
Region Compatibility Nationwide

HSH4ME5M1SP48K Specifications:

Model HSH4ME5M1SP48K
UPC 663132533671
Product Height (in) 45
Avg Coverage Area 2,000 - 2,400 Sq Ft
Product Length (in) 31.75
Compressor Single Stage
Product Width (in) 31.75
Cooling Capacity 4 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF2) 7.5
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 40 amps
Weight (lbs) 225.000000
Primary Heating Capacity 45,001 - 50,000 BTU
Refrigerant R-454b
Cooling Efficiency (SEER2) 14.3
Suction Line Size 7/8 inch
System Application Type Mobile Home Systems
Voltage 240
Warranty 5 Year Parts, 10 Year Compressor
Region Compatibility Nationwide

C85DAMX4960U-B Specifications:

Model C85DAMX4960U-B
UPC 663132533732
Product Height (in) 29
Air Flow Direction Vertical
Product Length (in) 19.5
Cooling Capacity 4 Ton, 5 Ton
Product Width (in) 18.125
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Weight (lbs) 50.000000
Refrigerant R-454b
Suction Line Size 7/8 inch
Warranty 5 Year
